Accessibility
Heavy duty composite single piece cover exposes major components for inspection and maintenance.
Drive Unit
Vertically mounted drive motor is directly mounted to gear housing. Oil bathed bevel gear drive train with tapered roller bearings transfers power to axle. State of the art optimized gear technology supplies advantages such as zero maintenance, low noise level, high efficiency and high performance. Electromagnetic brake is mounted on motor arma-ture shaft multiplying the braking power through the transmission. Brake is applied when control arm is in the vertical or horizontal handle position. System features anti-roll back and neutral braking.
Electrical
Heavy-duty, 24-Volt system for demanding warehouse applications. The programmable ZAPI traction control and matching drive motor provide high performance throughout the entire speed range. Travel speed remains constant relative to throttle position regardless of load. Separately fused power control circuits, quick disconnect EPD power cut off, hour meter / battery discharge indicator combination gauge complete the system. Power configurations and diagnostic features are standard.
Fork Assembly
Pallet entry slide allows easy pallet entry by lifting the fork up and over bottom board. Eight easily accessed grease zerks for ease of maintenance. Tapered extended fork tip design is available on double pallet handling models.
Hydraulics
Heavy duty pump motor with center mounted lift cylinder. Heavy-duty, pump unit, motor, hydraulic reservoir, solenoid, and gear pump. Integral pressure compensated flow control valve regulates lowering speeds.

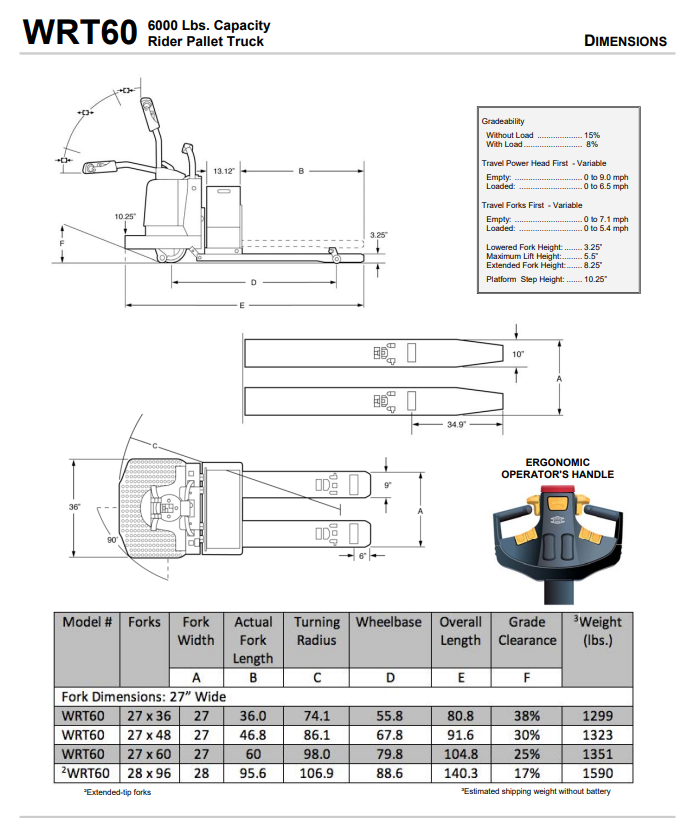

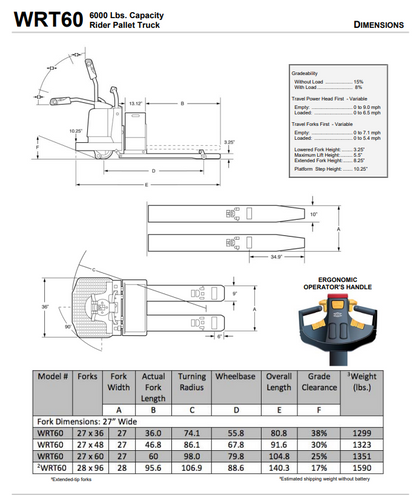

Technical Specs Actual Fork Length B
60 in
Technical Specs Actual Fork Width A
27 in
Technical Specs Battery
Compartment: 31.12” x 13.12” x open Anderson 175 Gray—A-11 Min/Max battery weight 975/1500lbs.
Technical Specs Brands
Big Joe®
Technical Specs Capacity
6000 lb
Technical Specs Extended Fork Height
8.25 in
Technical Specs Forks Size
27 x 60 in
Technical Specs Gradeability Without Load
15 %
Technical Specs Gradeability With Load
8 %
Technical Specs Lowered Fork Height
3.25 in
Technical Specs Maximum Forklift Height
5.5 in
Technical Specs Overall Length E
104.8 in
Technical Specs Speed
Variable 0 mph up to 9 mph emptyVariable 0 mph up to 6.5 mph loaded
Technical Specs Tires
Drive9" x 3" polyurethaneLoad3.25" x 4.5" polyurethane
Technical Specs Travel Variable Empty
0 to 9 mph
Technical Specs Travel Variable Loaded
0 to 6.5 mph
Technical Specs Truck Model
WRT60
Technical Specs Turning Radius C
98 in
Technical Specs Weight
1351 lb
Technical Specs Wheelbase D
79.8 in

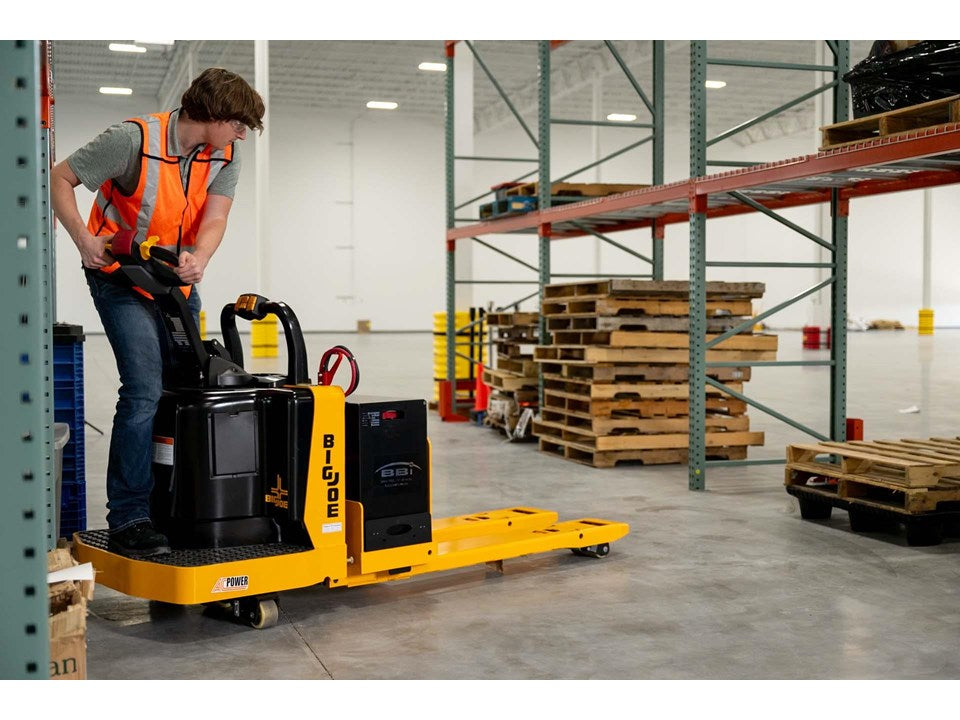

Tiller Arm Controls
The WRT 60 stand-up end control power pallet truck has a large operator platform which increases operator comfort and productivity. Careful location of ergonomic operator handle feature easy to use controls for travel, lift, lower and horn functions. All operator controls are accessible without having to lift the hand from the handle. Large thumb control lever for forward and reverse travel allows travel as a rider truck or walkie. Microcellular rubber floor mat and angled power head cover are designed to allow easy operation with either hand and improved operator comfort . Smooth urethane high speed grab bar for operator security with one touch high speed button.
