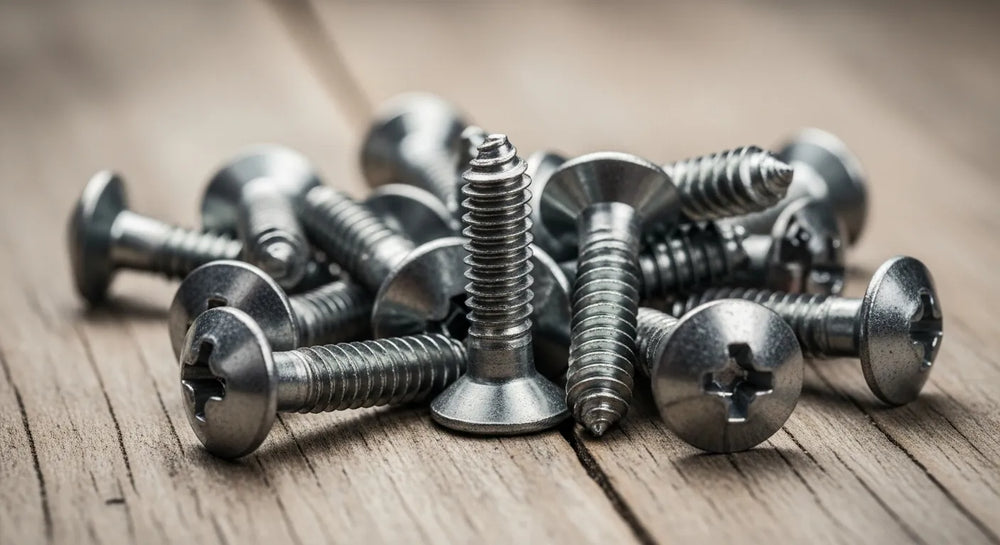

Optimizing Pilot Hole Size for #10 Sheet Metal Screws

Table of Contents

1. Introduction
2. Understanding Sheet Metal Screws: More Than Just a Fastener
3. The #10 Sheet Metal Screw: A Standard Workhorse
4. Factors Influencing Pilot Hole Size for #10 Sheet Metal Screws
5. The Definitive Guide: Pilot Hole Sizes for #10 Sheet Metal Screws
6. The Science of Optimal Engagement: Why it Matters for Your Projects
7. Beyond the Drill Bit: The Strategic Procurement Perspective
8. Maden.co: Your Partner in Precision and Performance
9. Conclusion
10. Frequently Asked Questions (FAQ)

Introduction

In industrial procurement and manufacturing, an overlooked detail can cascade into significant delays, material waste, and compromised product integrity. Consider a production line facing unexpected fastener failures, or a design engineer struggling with stripped threads on a critical prototype. Often, the root cause isn't the fastener itself, but the incorrect application, specifically, the pilot hole size. For the ubiquitous #10 sheet metal screw, this seemingly minor detail can dictate the success or failure of an entire assembly. This post will delve into the critical importance of selecting the correct pilot hole size for #10 sheet metal screws, exploring the myriad factors that influence this decision, from material type and thickness to screw design and desired performance outcomes. We aim to equip procurement managers, MRO buyers, and design engineers with the authoritative knowledge and practical insights needed to ensure optimal fastening, enhance product reliability, and streamline their procurement processes. Our ultimate goal is to illuminate how precise application, supported by reliable sourcing, is fundamental to industrial excellence.

Understanding Sheet Metal Screws: More Than Just a Fastener

Sheet metal screws are a cornerstone of modern manufacturing and assembly, far exceeding their simple appearance. These fasteners are specifically designed for joining sheet metal and other thin materials without the need for pre-tapped holes, thanks to their self-tapping capabilities. This means they cut their own threads as they are driven into a pilot hole, creating a secure and often permanent connection. The efficiency and versatility of sheet metal screws make them indispensable in a vast array of industrial applications, from HVAC ductwork and automotive assembly to electronics enclosures and general fabrication.

The critical characteristic of these screws lies in their thread profile—typically coarse and sharp, designed to aggressively form threads in ductile materials. While incredibly efficient, this aggressive threading also underscores the importance of a properly sized pilot hole. An undersized hole can lead to excessive driving torque, stripped screw heads, damaged material, or even broken screws. Conversely, an oversized hole compromises thread engagement, resulting in reduced pull-out strength, vibration loosening, and ultimately, joint failure. For a procurement manager overseeing thousands of components or an MRO buyer dealing with urgent repairs, understanding this fundamental interaction between screw and material is not merely a technicality; it's a direct determinant of operational efficiency, product quality, and long-term cost savings. Precision in this area directly translates to fewer reworks, improved product longevity, and enhanced safety across industrial applications.

The #10 Sheet Metal Screw: A Standard Workhorse

Among the vast spectrum of fasteners, the #10 sheet metal screw stands out as a prevalent and versatile choice in numerous industrial and commercial applications. The "10" in #10 refers to its gauge, a standardized numbering system used for screws with diameters typically less than 1/4 inch. For a #10 screw, the major diameter (the widest part of the threads) is approximately 0.190 inches, or just under 3/16 of an inch. This specific sizing offers a robust balance of strength and versatility, making it suitable for a wide range of materials and load-bearing requirements without being excessively bulky.

The utility of a #10 sheet metal screw is further expanded by the variety of head types and drive styles available, each suited for different aesthetic, functional, and installation needs. For example, a Steel Zinc Plated Type A Pan Slot Drive Self-Tapping Sheet Metal Screw offers a low-profile, domed head ideal for applications where a smooth finish is desired, while the slot drive provides a traditional engagement method. In contrast, the Steel Zinc Plated Type A Truss Square Drive Self-Tapping Sheet Metal Screw features a wider, flatter truss head that provides a larger bearing surface, which can be beneficial when fastening softer materials or thin sheet metals, helping to distribute the load and prevent pull-through. The square drive, known for its superior cam-out resistance, enhances efficiency and reduces installer fatigue.

Understanding these variations is crucial for design engineers and MRO buyers. Selecting the correct head type and drive not only impacts ease of installation and final appearance but also contributes to the overall integrity and performance of the assembled product. The consistent availability of such specialized, U.S.-made components through Maden.co empowers buyers to make informed choices that directly contribute to the quality and longevity of their projects. Our commitment to providing access to a diverse catalog of American-made products ensures that you can find the precise #10 sheet metal screw, in the right material and finish, to meet your most demanding specifications.

Factors Influencing Pilot Hole Size for #10 Sheet Metal Screws

Determining the precise pilot hole size for a #10 sheet metal screw is not a one-size-fits-all endeavor. It's a nuanced process influenced by several critical factors, each playing a significant role in ensuring the optimal performance and longevity of the fastened joint. Overlooking any of these elements can lead to compromised assembly integrity, increased scrap rates, and ultimately, higher Total Cost of Ownership (TCO).

Material Thickness: The Foundation of Fastening

The thickness of the material being fastened is arguably the most straightforward yet impactful factor.

• Thin Gauge Materials: When working with very thin sheet metals (e.g., 24-gauge steel or thinner), an oversized pilot hole can quickly lead to stripping, as there isn't enough material for the screw threads to adequately engage. An undersized hole, conversely, might cause bulging or deformation of the thin material, compromising the aesthetic and structural integrity of the joint.
• Thick Gauge Materials: For thicker sheets, a slightly larger pilot hole might be necessary to reduce the driving torque required and prevent screw breakage, especially when working with harder metals. However, the pilot hole must still be small enough to ensure sufficient thread engagement for pull-out strength. The goal is to allow the screw to form strong threads without excessive friction or material stress.

Material Type: Properties Dictate Performance

The composition and hardness of the material are paramount. Different materials react distinctly to the self-tapping action of a screw, demanding specific pilot hole considerations.

• Soft Metals (Aluminum, Brass): These materials are more ductile, meaning they deform easily. An undersized pilot hole can cause significant material displacement, leading to bulging around the screw or even cracking. A slightly larger pilot hole, closer to the screw's minor diameter, is often preferred to allow the screw to cut cleanly without deforming the surrounding material excessively.
• Hard Metals (Steel, Stainless Steel): Harder metals require more force to cut threads. An undersized pilot hole will increase driving torque, risking screw head stripping, cam-out, or even snapping the screw itself. Here, precision in pilot hole sizing is about balancing sufficient thread engagement with manageable driving torque. Drill bits designed for metal, often made of high-speed steel (HSS) or cobalt, are essential for clean, accurate holes in these materials.
• Plastics (ABS, Polycarbonate, Nylon): Fastening into plastics presents unique challenges, primarily the risk of stress cracking and thread stripping. The brittle nature of some plastics makes them prone to cracking if the pilot hole is too small, creating internal stresses. For these applications, especially with materials like ABS or polycarbonate, the specialized design of a Hi-Lo Double Lead Thread Self-Tapping Sheet Metal Screw can be advantageous. The Hi-Lo thread profile, with its alternating high and low threads, reduces radial stress and offers better pull-out resistance in plastics. Pilot holes for these screws in plastics often need to be carefully optimized to prevent cracking while maximizing holding power.
• Composites and Wood: Similar to plastics, composites and wood require pilot holes that prevent splitting or delamination, especially near edges. The varying density and grain structure of these materials necessitate careful consideration, often leaning towards pilot holes that reduce material displacement.

Screw Thread Type: Tailored for Engagement

While all sheet metal screws self-tap, the specific design of their threads can vary significantly, influencing the ideal pilot hole size.

• Type A (Pointed, Coarse Thread): This is a general-purpose, sharply pointed screw with coarse threads, suitable for light-gauge metals, plastics, and sometimes wood. It requires a pilot hole that allows for quick thread formation.
• Type AB (Similar to A, but with finer point): Offers slightly better thread engagement in some materials due to its finer point.
• Type B (Blunt Point, Finer Thread): Features a blunter point and finer threads than Type A, often used in thicker materials or where a slightly larger pilot hole is desired to reduce cutting friction.
• Type C (Blunt Point, Machine Screw Thread): Less common for sheet metal but designed for pilot holes tapped or drilled to a specific size, resembling a machine screw.
• Hi-Lo Thread: As mentioned with plastics, these screws have two threads with different heights. The high thread provides strong engagement, while the low thread helps reduce driving torque and stress, making them ideal for softer materials and plastics. The pilot hole must accommodate this dual-thread profile to realize its benefits fully.

Desired Fastening Performance: Balancing Strength and Integrity

Finally, the intended performance of the fastened joint guides the pilot hole selection.

• Optimizing for Pull-Out Strength: A slightly smaller pilot hole will generally increase the thread engagement percentage, leading to greater pull-out strength. However, this must be balanced against the risk of stripping or material damage.
• Avoiding Stripping: If stripping is a primary concern, especially in softer materials or applications where fasteners might be removed and reinserted, a slightly larger pilot hole might be chosen, provided sufficient pull-out strength is maintained.
• Minimizing Stress Cracking: In brittle materials like certain plastics, the priority might be to prevent cracking, even if it means sacrificing a small amount of ultimate pull-out strength. The correct pilot hole minimizes the radial pressure exerted by the screw as it forms threads.

Understanding these interconnected factors is not just about technical adherence; it's about optimizing efficiency, reducing waste, and ultimately building a more resilient supply chain. At Maden.co, we understand the critical role these details play in your operations, and we're dedicated to providing access to the high-quality, U.S.-made fasteners that meet these exacting specifications. Our network of 800+ verified U.S. manufacturers ensures that design engineers and procurement managers can find the precise components needed to mitigate risks and enhance product performance.

The Definitive Guide: Pilot Hole Sizes for #10 Sheet Metal Screws

Navigating the nuances of pilot hole sizing requires a clear understanding of practical guidelines, informed by the material properties and screw types discussed. While no single chart can encompass every variable, general recommendations provide an excellent starting point for #10 sheet metal screws. It is always crucial to perform test installations in scrap material to confirm optimal performance for your specific application, material batch, and tooling.

The fundamental principle for a pilot hole is to be large enough to allow the screw's core (minor diameter) to pass through without excessive friction, but small enough for the screw's threads (major diameter) to cut and form strong, engaged threads within the material. For a #10 sheet metal screw with a major diameter of approximately 0.190 inches, the minor (core) diameter typically ranges from 0.125 to 0.140 inches, depending on the screw type and manufacturer. Therefore, the pilot hole will generally fall within or slightly above this minor diameter range.

General Recommendations for #10 Sheet Metal Screws (Approximate Drill Bit Sizes)

Below are common drill bit recommendations for #10 sheet metal screws across various materials and thicknesses. These are starting points and should be verified with actual tests. Drill bit sizes are often expressed in fractional inches, decimal inches, or gauge numbers.

Note: For a Hi-Lo Double Lead Thread Self-Tapping Sheet Metal Screw, especially in plastics, the pilot hole must be carefully chosen to allow both the high and low threads to form effectively without overstressing the material. This often means a hole closer to the screw's nominal core diameter to maximize the benefits of the dual thread design while preventing stress cracks.

Specific Scenarios & Best Practices:

• For Steel & Hard Metals: The primary concern is thread cutting and preventing excessive torque or screw breakage. For example, for a design engineer prototyping a new enclosure requiring reliable fasteners in 18-gauge steel, a 9/64" pilot hole for a Steel Zinc Plated Type A Pan Slot Drive Self-Tapping Sheet Metal Screw would be a robust starting point. It provides ample thread engagement while allowing the screw to cut cleanly. If a thicker steel (e.g., 14-gauge) is used, testing with a 5/32" drill bit may be warranted to ease insertion and prevent cam-out, particularly for power tools.
• For Aluminum & Soft Metals: Preventing material deformation (bulging, cracking) while maintaining sufficient pull-out strength is key. For an MRO buyer replacing aluminum access panels, a 5/32" pilot hole for a #10 screw in 0.080" aluminum might strike a better balance than 9/64", reducing the risk of material distortion.
• For Plastics & Composites: Preventing cracking is paramount, especially when repeated assembly/disassembly might occur. For a plastic enclosure using a Hi-Lo Double Lead Thread Self-Tapping Sheet Metal Screw, starting with a 1/8" pilot hole is common. If stress whitening or cracking is observed during trials, a gradual increase to 9/64" or even a slightly larger fractional size could be necessary. The unique design of Hi-Lo threads thrives on precise pilot hole sizing to prevent undue stress on the plastic, which could lead to premature failure.

The Science of Optimal Engagement: Why it Matters for Your Projects

The selection of a pilot hole size for a #10 sheet metal screw isn't merely a matter of convenience; it’s an engineering decision with direct implications for the integrity and lifespan of your products and assemblies. At its core, this decision influences the thread engagement percentage—the measure of how much of the screw's thread is engaged with the material. Ideally, this percentage typically falls between 65% and 80%.

• Below 65% engagement: The threads are not gripping the material sufficiently. This can lead to low pull-out strength, making the joint susceptible to vibration, shock, or static loads. The screw might easily strip during installation or fail prematurely in service.
• Above 80% engagement: While seemingly robust, excessively high engagement means the screw is displacing too much material. This leads to extremely high driving torque, significantly increasing the risk of stripping the screw head, cam-out (where the driver slips out of the screw head), or even fracturing the screw itself. In softer materials or plastics, high engagement can cause material bulging, cracking, or localized stress, undermining the joint's long-term stability.

Proper torque management during installation is intrinsically linked to pilot hole sizing. With an optimized pilot hole, the screw can be driven to its appropriate seating torque without encountering excessive resistance or requiring excessive force. This not only protects the fastener and the material but also ensures that assembly line workers can achieve consistent, reliable results with appropriate tooling. Power drills with adjustable clutch settings are invaluable here, allowing installers to fine-tune the torque to match the pilot hole and material, preventing both under-tightening (which leads to loose joints) and over-tightening (which causes stripping or material damage).

For procurement managers under pressure to meet tight production schedules, or MRO buyers facing an unexpected equipment breakdown, the ability to quickly source and precisely apply a verified, U.S.-made part like a #10 sheet metal screw is a game-changer. Imagine a scenario where an assembly line is slowed by frequent fastener failures due to incorrectly sized pilot holes. Each stripped screw, each cracked component, adds to material waste, rework hours, and ultimately, drives up the Total Cost of Ownership (TCO). By understanding the science behind optimal thread engagement and pilot hole sizing, businesses can make more informed decisions upstream in the procurement process, selecting not just any #10 screw, but the right #10 screw and ensuring its correct application. This proactive approach minimizes unforeseen issues, enhances product quality, and significantly contributes to operational efficiency.

Beyond the Drill Bit: The Strategic Procurement Perspective

While the technical details of pilot hole sizing are crucial, the broader implications for industrial operations extend deeply into procurement strategy. Sourcing the right #10 sheet metal screw is not just about finding a part; it's about building resilience, ensuring compliance, and optimizing your supply chain for long-term success.

Reducing Procurement Friction

In today's fast-paced industrial landscape, every moment spent searching for a specific component translates to lost productivity. Maden.co is designed to drastically reduce this procurement friction. Our platform consolidates an expansive catalog of over 2.5 million American-made products from 800+ verified U.S. manufacturers. For a procurement manager needing specific Steel Zinc Plated Type A Truss Square Drive Self-Tapping Sheet Metal Screws with particular material certifications, the ability to quickly search, compare, and order from a single, trusted source is invaluable. This digital innovation is a core tenet of our mission, providing unparalleled supply chain transparency and customer empowerment.

Supply Chain Resilience: The Value of U.S.-Made Fasteners

The past few years have underscored the vulnerabilities of global supply chains. Relying on overseas sources for critical components, even something as seemingly minor as a #10 sheet metal screw, can expose businesses to delays, geopolitical risks, and inconsistent quality. Sourcing through Maden.co champions American Manufacturing Pride, ensuring access to a stable, reliable supply of high-quality, U.S.-made fasteners. This enhances your supply chain resilience, allowing you to react quickly to market demands and unforeseen disruptions without compromising on material quality or lead times.

Total Cost of Ownership (TCO): Beyond the Sticker Price

The true cost of a fastener extends far beyond its initial purchase price. Inferior quality screws or those incorrectly applied can lead to product recalls, warranty claims, extensive rework, and reputational damage. By partnering with verified U.S. manufacturers through Maden.co, you gain access to industrial excellence—components built to exacting standards that ensure long-term durability and performance. This investment in quality, coupled with the knowledge of precise application (like optimal pilot hole sizing), significantly reduces TCO by minimizing failures, scrap rates, and downstream costs. It's about recognizing that a higher quality, accurately applied fastener can prevent far more expensive problems down the line.

Compliance and Quality: Partnering with Verified U.S. Manufacturers

Many industries operate under strict regulatory and quality standards (e.g., ISO, ASTM, DIN). Sourcing from unknown or unverified suppliers can introduce significant compliance risks. Every manufacturer on Maden.co is a verified U.S. entity, committed to producing components that meet rigorous industry standards. This provides procurement professionals with the assurance that the fasteners they procure, whether a standard Steel Zinc Plated Type A Pan Slot Drive Self-Tapping Sheet Metal Screw or a specialized Hi-Lo Double Lead Thread Self-Tapping Sheet Metal Screw, will contribute to their product's overall compliance and quality.

Real-World Scenarios in Action

Consider a design engineer tasked with developing a new automotive interior component. They need a #10 sheet metal screw that offers superior vibration resistance in plastic, demanding precise pilot hole data and a reliable source for high-quality fasteners. The ability to quickly find and procure a U.S.-made Hi-Lo Double Lead Thread Self-Tapping Sheet Metal Screw from a verified manufacturer via Maden.co ensures both technical specification adherence and supply chain reliability.

Another scenario involves an MRO buyer at a large manufacturing plant. A critical piece of machinery requires replacement of numerous #10 sheet metal screws in its sheet metal housing. Downtime is costly. Being able to swiftly locate and order American-made Steel Zinc Plated Type A Pan Slot Drive Self-Tapping Sheet Metal Screws or Steel Zinc Plated Type A Truss Square Drive Self-Tapping Sheet Metal Screws directly from our marketplace minimizes lead times and ensures the use of reliable components, getting the machinery back online faster.

At Maden.co, our mission is to democratize access to American manufacturing. We achieve this by connecting industrial buyers with over 2.5 million American-made products from our network of 800+ verified U.S. manufacturers. Our vision is to become the definitive platform that proves American-made components are as accessible and convenient as any global alternative, driving the manufacturing revival with our tagline: "America's manufacturing revival is here." Our entire business model is built on this principle; you can learn more about our mission to champion American manufacturing here.

Maden.co: Your Partner in Precision and Performance

In the complex world of industrial procurement, having a trusted partner is invaluable. Maden.co stands as America's premier B2B marketplace for U.S.-manufactured products, committed to empowering procurement managers, MRO buyers, and design engineers with the tools and resources they need for success.

Our platform offers unparalleled access to a vast and diverse catalog of U.S.-made fasteners, including a comprehensive range of #10 sheet metal screws in various types, materials, and finishes. Whether you need specific dimensions, specialized coatings, or fasteners designed for unique material combinations, our extensive network of verified American manufacturers ensures that you can find the exact components to meet your project's exacting specifications.

We embody core values such as Digital Innovation, ensuring a seamless and intuitive online sourcing experience; Supply Chain Transparency, so you know exactly where your products come from; Industrial Excellence, guaranteeing the quality and reliability of every component; and Customer Empowerment, providing you with the knowledge and choices to make the best purchasing decisions.

Beyond simply providing access to products, we understand the financial realities of industrial operations. That's why we offer "Instant Financing" as a strategic tool for businesses. This feature allows procurement managers and business owners to manage cash flow effectively, make larger-volume purchases without immediate capital strain, and respond to urgent project needs with greater flexibility. It's a testament to our commitment to supporting the growth and operational efficiency of American businesses. You can apply for Instant Financing at checkout to streamline your capital-intensive projects.

For U.S. manufacturers, Maden.co represents a powerful channel to connect with industrial buyers nationwide. If you are a qualified American manufacturer, we invite you to register as a vendor and join the American manufacturing revival. Together, we can strengthen the domestic manufacturing base and drive economic growth.

By choosing Maden.co, you're not just buying a product; you're investing in reliability, resilience, and the future of American manufacturing. Explore our full catalog of American-made industrial supplies and discover how we can transform your procurement process on our homepage. If you have specific sourcing questions, our team is ready to help; feel free to contact us for expert assistance.

Conclusion

The seemingly small detail of selecting the correct pilot hole size for a #10 sheet metal screw is, in reality, a foundational element of industrial quality and efficiency. From preventing stripped threads and material damage to ensuring optimal pull-out strength and structural integrity, precision in this area directly impacts project success and the longevity of your products. We've explored how factors such as material type and thickness, screw thread design, and desired performance outcomes all contribute to this critical decision, underscoring that a one-size-fits-all approach is insufficient in demanding industrial environments.

For businesses committed to excellence, understanding and implementing these technical nuances is paramount. Just as crucial is partnering with a reliable source for high-quality, U.S.-made fasteners. Maden.co is dedicated to empowering procurement managers, MRO buyers, and design engineers by democratizing access to the finest American manufacturing. Our extensive catalog of over 2.5 million products from 800+ verified U.S. manufacturers provides the essential components needed to build resilient supply chains and ensure industrial excellence.

Don't let incorrect pilot hole sizing compromise your projects. Leverage the unparalleled selection and strategic financing options available on Maden.co to secure the precise #10 sheet metal screws you need, made with American pride and engineered for performance. Explore our catalog today and streamline your capital-intensive projects by applying for Instant Financing at checkout. America's manufacturing revival is here, and we invite you to be a part of it.

Frequently Asked Questions (FAQ)

Q1: Why is pilot hole size so critical for #10 sheet metal screws, and what happens if it's incorrect?

A1: The pilot hole size is critical because it dictates the thread engagement percentage and driving torque. If the pilot hole is too small, it can lead to excessive torque, stripped screw heads, cam-out, material deformation (bulging or cracking), or even screw breakage. If it's too large, the screw's threads won't engage properly, resulting in low pull-out strength, a loose connection, and susceptibility to vibration or failure. Correct sizing ensures optimal thread formation, maximum holding power, and efficient installation.

Q2: How does the material I'm fastening into affect the recommended pilot hole size for a #10 sheet metal screw?

A2: Material type significantly impacts pilot hole size. Softer, more ductile materials like aluminum or some plastics may require slightly larger pilot holes to prevent bulging or stress cracking, while harder materials like steel need pilot holes that allow the screw to cut threads efficiently without excessive friction or torque. For plastics, specialized screws like Hi-Lo threads often benefit from tailored pilot holes to prevent cracking and optimize engagement. Always consider the material's hardness, thickness, and ductility.

Q3: What's the difference between Type A and Hi-Lo thread sheet metal screws, and how does this impact pilot hole selection for a #10 size?

A3: Type A sheet metal screws have a single, coarse thread and a sharp point, making them general-purpose for light-gauge metals, plastics, and wood. Hi-Lo thread screws, conversely, feature two threads of different heights (one high, one low). This design reduces radial stress during installation and provides better pull-out resistance, particularly in plastics and softer materials. For a #10 Hi-Lo screw, the pilot hole is often carefully selected to allow both threads to engage effectively without overstressing the material, sometimes requiring a slightly smaller hole than a standard Type A to maximize the benefits of the dual thread.

Q4: How can Maden.co help procurement managers ensure they're sourcing the right #10 sheet metal screws and related components?

A4: Maden.co simplifies the procurement process by offering a vast marketplace of over 2.5 million American-made industrial products from 800+ verified U.S. manufacturers. Procurement managers can easily find specific #10 sheet metal screws, including various types, materials, and finishes, ensuring compliance with project specifications. We provide a platform for supply chain transparency, connecting buyers directly with quality U.S. manufacturers. Additionally, our "Instant Financing" option at checkout helps manage cash flow, making it easier to acquire the necessary components for large or urgent projects without compromising quality.
