Introduction

Imagine a project site bustling with activity. The concrete foundation has just cured, and the framing crew is ready to start erecting the walls. A building inspector arrives, takes a few measurements, and puts a stop-work order on the entire project. The reason? The anchor bolts connecting the foundation to the future structure are spaced incorrectly, are the wrong diameter, or worse, are missing entirely. This single, small component, often overlooked until it's too late, has now caused a cascade of costly delays, frustrating everyone from the procurement manager to the project lead. This scenario, all too common, highlights the immense structural importance of a component that is literally the bedrock of safe construction.

This article serves as an authoritative guide for procurement professionals, engineers, and MRO buyers on the critical role of anchor bolts in wood frame construction. We will move beyond a simple definition to explore the specific types of anchor bolts, their precise functions in resisting environmental forces, the detailed installation processes, and the crucial building codes that govern their use. At Maden.co, our entire business is built on supplying the American industry with verified, high-quality components, and we believe that a well-informed buyer is an empowered one. The proper selection and installation of American-made anchor bolts are not merely a step in a checklist but a fundamental pillar of structural integrity, long-term durability, and the ultimate success of any construction project.

The Unsung Heroes: What Are Anchor Bolts and Why Are They Critical?

At its core, an anchor bolt is a heavy-duty fastener designed to create a secure connection between a structural element and a concrete foundation. In wood frame construction, its primary job is to fasten the sill plate—the very first piece of lumber that rests directly on the foundation—to the concrete slab or footing below it. Think of the anchor bolt as the root system for the entire building, holding it firmly to the earth and enabling it to withstand the powerful forces it will encounter throughout its lifespan.

Defining the Primary Function

The connection forged by an anchor bolt is not passive; it is an active defense system. Without this critical link, a wood frame structure would essentially be sitting on top of its foundation, held in place only by gravity. This would leave it dangerously vulnerable to shifting, lifting, or complete failure when subjected to external pressures. The anchor bolt transfers loads from the building's frame directly into the mass of the concrete foundation, creating a unified and resilient structural system. This is a foundational principle of modern construction, ensuring that the entire building behaves as a single, cohesive unit.

Resisting Nature's Forces

The engineering behind anchor bolt application is focused on counteracting three primary types of forces that constantly act upon a building:

• Uplift Loads: These are vertical forces that attempt to lift the building off its foundation. The most common source of significant uplift is wind. As wind flows over and around a building, it creates pressure differentials, resulting in a powerful lifting effect, particularly on the roof. Anchor bolts resist this by holding the sill plate, and by extension the entire wall and roof assembly, firmly down.
• Shear Loads (Lateral Loads): These are horizontal forces that try to push the building sideways, sliding it off its foundation. Shear forces are generated by high winds pushing against walls and, most critically, by the ground motion during an earthquake. The anchor bolts act like pegs, preventing the wood frame from slipping laterally across the concrete.
• Overturning Moments: This is a rotational force that occurs when strong lateral loads are applied to the top of a structure, creating a tendency for the entire building to tip over. Anchor bolts, particularly those on the side of the building resisting the force (the "windward" side), are placed in tension to counteract this tipping motion, keeping the structure stable and upright.

The consequence of under-specifying or improperly installing these components is not just a code violation; it's a direct threat to the safety and longevity of the structure. In a high-wind event or earthquake, a poorly anchored building can suffer catastrophic failure, leading to immense property damage and potential loss of life. This is why our commitment to Industrial Excellence and Supply Chain Transparency is so unwavering. We ensure that when you source components through our platform, you are getting verified parts that meet the stringent demands of modern engineering.

A Taxonomy of Anchor Bolts for Wood Construction

Anchor bolts are not a one-size-fits-all product. The right choice depends on the construction phase (new vs. retrofit), the type of foundation material, and the specific load requirements determined by an engineer. Understanding the primary categories is essential for any procurement manager or designer.

Cast-in-Place Anchor Bolts

As the name implies, these anchors are set into concrete while it is still wet, or "plastic." They become an integral part of the foundation itself and are generally considered the strongest and most reliable type for new construction.

• J-Bolts and L-Bolts: These are the most common types used in residential and light commercial wood framing. They are essentially a threaded rod with a 90-degree bend at the embedded end, forming the shape of an 'L' or 'J'. This bend provides superior pull-out resistance, as the hook mechanically anchors the bolt within the cured concrete. The key to their effectiveness lies in precise placement before the concrete sets, as they cannot be adjusted afterward.
• Headed Anchor Bolts: These consist of a straight steel rod that is threaded on the top and has a forged hex head, square head, or a nut and washer combination on the bottom. The head provides the pull-out resistance, functioning much like the head of a nail in wood. These are often used in applications requiring higher load capacities than standard J-bolts can provide.

Post-Installed (Retrofit) Anchor Bolts

These anchors are installed after the concrete has fully cured. They are essential for renovation projects, adding new walls, or correcting situations where cast-in-place anchors were missed.

• Wedge Anchors: These are designed for use in solid concrete. After a hole is drilled into the foundation, the wedge anchor is inserted and hammered into place. Tightening the nut on top pulls the bolt upward, which forces a metal sleeve or clip at the bottom to expand and "wedge" itself tightly against the sides of the hole. They offer excellent tensile and shear strength.
• Sleeve Anchors: Functionally similar to wedge anchors, sleeve anchors utilize a full-length expansion sleeve. This makes them more suitable for softer or less dense base materials like concrete block (CMU) or brick, as the expansion pressure is distributed over a larger surface area.
• Adhesive (Epoxy) Anchors: These represent the pinnacle of post-installed anchoring strength. The system involves drilling a hole, cleaning it meticulously of all dust and debris, and then injecting a high-strength, two-part structural epoxy. A threaded rod is then inserted into the epoxy-filled hole. Once the adhesive cures, it forms a bond with both the concrete and the steel rod that is often stronger than the concrete itself. They are incredibly versatile and can be used to achieve very deep embedment for maximum load capacity.

The Installation Process: From Concrete Pour to Sill Plate

Proper installation is just as critical as selecting the right bolt. A high-quality anchor installed incorrectly will fail under load. The process requires careful planning and execution at multiple stages of construction.

Step 1: Meticulous Planning and Layout

Before any concrete is poured, the location of every anchor bolt must be determined from the project's architectural and structural blueprints. Building codes, such as the International Residential Code (IRC), provide minimum requirements for placement. For example, a common rule is that bolts must be placed within 12 inches of each corner or end of a sill plate and spaced no more than 6 feet apart along the plate. An engineer may specify a tighter spacing for areas in high-wind or seismic zones. Using chalk lines or wooden templates is crucial to ensure this layout is transferred accurately to the formwork.

Step 2: Setting Cast-in-Place Bolts

This is the moment of truth for cast-in-place anchors. As the concrete is poured and smoothed, the bolts are pushed into the wet mix at the pre-marked locations. Several factors are critical here:

• Embedment Depth: The bolt must be embedded deep enough into the concrete to achieve its full strength. The IRC typically requires a minimum of 7 inches of embedment.
• Projection Height: The threaded portion of the bolt must stick up high enough above the concrete to pass through the sill plate and accommodate a plate washer and nut, but not so high that it interferes with wall framing.
• Plumb and Position: The bolts must be perfectly vertical (plumb) and in the correct horizontal position to align with the center of the sill plate. Using an anchor bolt holder or template can help maintain this position while the concrete cures.

Step 3: Drilling and Installing Post-Installed Anchors

For retrofit applications, the process begins after the foundation is fully cured. Using a hammer drill or rotary hammer with the correct diameter masonry bit, holes are drilled to the depth specified by the anchor manufacturer. For adhesive anchors, hole cleanliness is paramount. The hole must be thoroughly brushed and blown out with compressed air to remove all concrete dust, which would otherwise compromise the epoxy's bond. The anchor is then installed according to the manufacturer's specific instructions, whether it's by hammering in a wedge anchor or injecting epoxy for a threaded rod.

Step 4: Attaching the Sill Plate

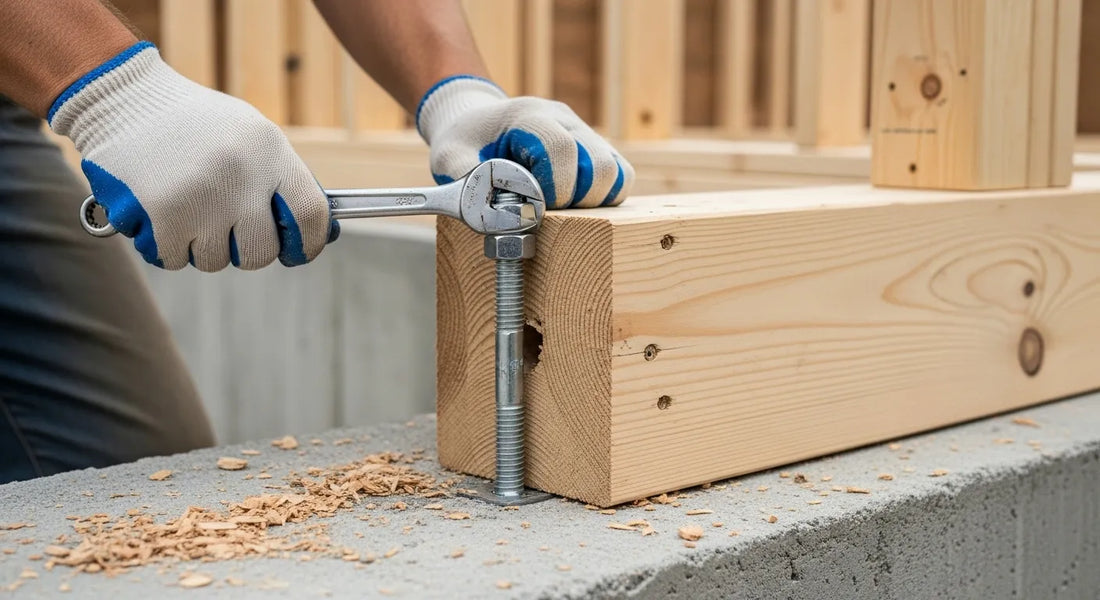

Once the bolts are in place and the concrete has cured, the sill plate is installed. This treated piece of lumber is laid over the foundation, and holes are drilled to correspond with the locations of the protruding anchor bolts. The plate is then slipped over the bolts. A heavy-duty washer, typically a square plate washer, is placed over the bolt on top of the sill plate. This is a critical and often overlooked detail; the large surface area of the plate washer prevents the nut from pulling through the relatively soft wood of the sill plate during an uplift event. Finally, the nut is threaded onto the bolt and tightened to the specified torque.

Navigating Codes and Specifications: A Procurement Manager's Guide

For a procurement manager, sourcing anchor bolts is about more than just finding the right length and diameter. It's about ensuring compliance, verifying material integrity, and understanding the engineering requirements of the project.

Understanding Building Codes (IRC & IBC)

The International Residential Code (IRC) and the International Building Code (IBC) are the model codes that form the basis for most local building regulations across the United States. These documents contain prescriptive requirements for anchor bolt size (typically a minimum of 1/2-inch diameter for wood frame), spacing, and embedment depth. However, it's crucial to remember that local jurisdictions can and do amend these codes. A project in a coastal hurricane zone or a high-seismic area in California will have far more stringent anchoring requirements than a project in a seismically inactive, low-wind region. Always verify the specific requirements of the local building authority.

Material and Grade: Why "Made in the USA" Matters

Anchor bolts are available in various steel grades and finishes. Common specifications like ASTM F1554 define specific yield strengths (Grade 36, 55, and 105). The finish is equally important; for projects where the sill plate may be exposed to moisture, a hot-dip galvanized or stainless steel bolt is necessary to prevent corrosion, which could compromise the bolt's integrity over time.

This is where sourcing becomes a matter of trust and transparency. In a globalized supply chain, it can be difficult to verify the material composition and manufacturing quality of imported fasteners. This introduces significant risk into a project. By sourcing through our marketplace, you gain direct access to over 800 verified U.S. manufacturers. This commitment to American Manufacturing Pride is central to our mission. It ensures you receive components with traceable mill certifications and quality that meets or exceeds demanding industry standards, eliminating the risk of using substandard or counterfeit parts in your critical structural applications.

The Role of Tensioning in High-Stress Applications

In many standard wood frame applications, nuts are simply tightened to a "snug-tight" condition. However, in commercial construction, engineered buildings, or structures with very high load requirements, engineers will specify a precise pre-load, or tension, for the anchor bolts. This ensures the connection behaves exactly as designed under stress. Achieving this precise tension requires specialized equipment that goes beyond a simple hand wrench.

For these demanding jobs, tools like hydraulic bolt tensioners are indispensable. For example, the Enerpac FTR-Series Foundation Bolt Tensioners are engineered specifically for this purpose, allowing for accurate and repeatable tensioning of foundation anchors. The specific model required depends on the bolt diameter and load requirements. Our platform provides access to a range of solutions, from the versatile FTR-Series Tensioner with a 1.25-inch capacity to the robust FTR-Series model for large 1.5-inch bolts. Sourcing these tools alongside your fasteners from verified American suppliers simplifies procurement and guarantees you have the right equipment for a compliant, high-performance installation.

Sourcing Challenges and Modern Solutions

For a procurement manager under pressure to source a specific ASTM F1554 Grade 55 hot-dip galvanized anchor bolt for a critical project, the traditional supply chain can be fraught with friction. It often involves multiple phone calls, chasing down quotes, verifying stock, and contending with long lead times, all while dealing with uncertainty about the product's origin and quality.

The Maden.co Advantage: Transparency and Access

We built our platform to solve these exact challenges, driven by our belief in Digital Innovation and Customer Empowerment. We provide a seamless, transparent, and efficient procurement ecosystem.

Our Value Proposition:

• Vast & Verified Catalog: Instantly access over 2.5 million products from a network of over 800 verified U.S. manufacturers. Find the exact grade, finish, and specification you need without the runaround.
• Supply Chain Transparency: Know exactly what you are buying and who you are buying it from. Every vendor on our platform is a U.S.-based manufacturer, giving you confidence in the quality and compliance of your purchase.
• Reduced Procurement Friction: Our digital marketplace streamlines the entire process. Search, compare specifications, get pricing, and purchase critical components from multiple vendors in a single, unified transaction.

Empowering Your Business with Strategic Financing

We understand that large-scale construction projects require significant capital outlay for materials. Managing cash flow is paramount to keeping a project on schedule and on budget. That's why we've integrated a powerful tool directly into our platform. For procurement managers and business owners making large-volume purchases, this feature is a game-changer. You can apply for Instant Financing at checkout to streamline your capital-intensive projects, allowing you to acquire all the necessary components upfront while maintaining the financial flexibility your business needs to thrive.

The Bigger Picture: Anchor Bolts and the American Manufacturing Revival

Choosing to source an American-made anchor bolt is a decision that extends far beyond a single project site. It's a vote of confidence in the quality, ingenuity, and resilience of the domestic supply chain. Every bolt sourced from a U.S. manufacturer supports local jobs, fosters innovation, and strengthens our nation's industrial base. This is the very essence of our tagline: "America's manufacturing revival is here." We are proud to be the platform that connects the builders and innovators of this country with the manufacturers who produce the world's finest industrial components. If you have specific sourcing needs or require assistance navigating our extensive catalog, our expert team is here to help; please feel free to Contact Us at any time.

We are also committed to growing this revival. If you are part of the proud tradition of American industry, we want to partner with you. We provide a powerful digital channel to connect your products with a targeted national audience of qualified B2B buyers. Are you a U.S. manufacturer of high-quality construction components? Register as a vendor and join us in rebuilding America's industrial might.

Conclusion: Building on a Foundation of Strength and Trust

The humble anchor bolt is a testament to the fact that in construction, the most critical components are often the least visible. Its role in securing a wood frame structure to its foundation is absolute, providing essential resistance against uplift, shear, and overturning forces. From understanding the differences between J-bolts and epoxy anchors to navigating complex building codes and material specifications, a deep knowledge of this component is indispensable for ensuring a project's safety and success.

Don't let procurement challenges or supply chain uncertainties compromise the foundation of your next project. By partnering with Maden.co, you gain more than just a component; you gain a transparent, efficient, and reliable supply chain partner dedicated to the success of American industry. Explore our vast catalog of verified, U.S.-made fasteners and construction hardware today. And remember to leverage our Instant Financing option at checkout to empower your purchasing power and keep your projects moving forward with confidence.

Frequently Asked Questions (FAQ)

What is the most common type of anchor bolt for a new residential wood frame house?

For new construction, the most common and widely accepted anchor bolts are cast-in-place J-bolts or L-bolts. They are typically 1/2-inch in diameter and are set into the concrete foundation while it is still wet, providing a strong, permanent mechanical anchor for the sill plate.

How far apart should anchor bolts be placed in a wood frame wall?

The exact spacing is dictated by local building codes, which are often based on the International Residential Code (IRC). A general rule of thumb is to place an anchor bolt within 12 inches of each corner and any step or break in the sill plate, with subsequent bolts spaced no more than 6 feet apart on center. This spacing may need to be closer in areas with high wind or seismic activity.

Can I use epoxy anchors instead of traditional J-bolts in new construction?

While epoxy (adhesive) anchors offer exceptional strength, they are typically used for retrofitting applications or when a cast-in-place anchor was missed. For new construction, cast-in-place J-bolts or L-bolts are the standard, preferred, and often required method. Using an alternative system for new construction would almost always require the approval of a structural engineer and the local building official.

Why is using a plate washer so important with an anchor bolt on a wood sill plate?

A plate washer, which is a large, thick square washer, is critical because it distributes the clamping force of the nut over a much wider area of the wood sill plate. Wood is a relatively soft material. Without a plate washer, the smaller surface area of a standard nut could crush the wood fibers or even pull completely through the sill plate under the significant uplift forces generated by high winds, causing the connection to fail.
