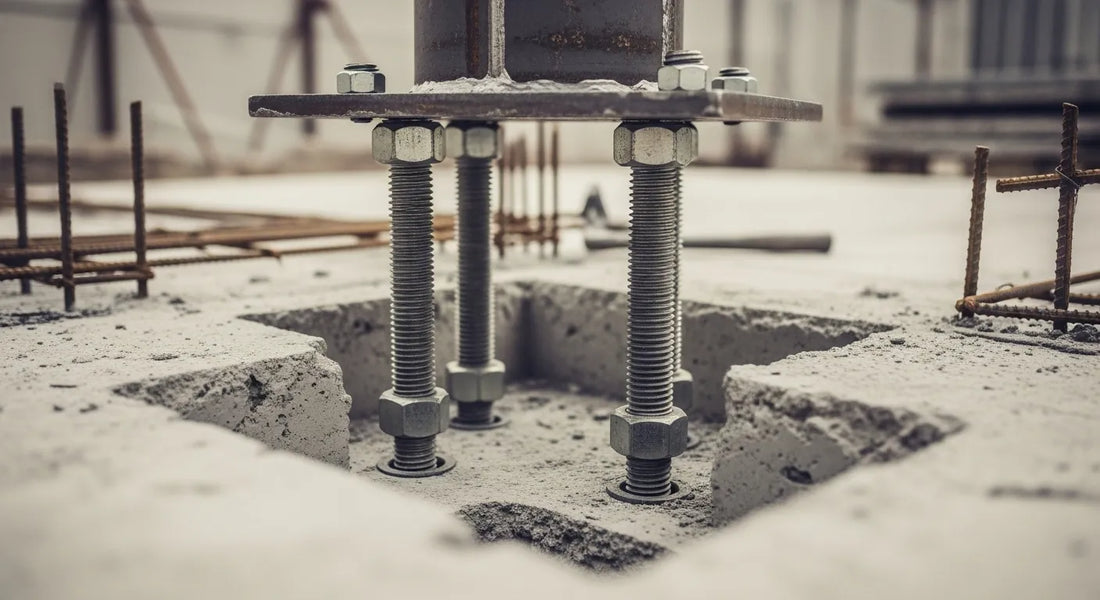

How Anchor Bolts Work: The Foundation of Modern Industry

Table of Contents

1. Introduction
2. The Fundamental Principles: How Anchors Generate Force
3. A Taxonomy of Anchor Bolts: Choosing the Right Tool for the Job
4. Critical Selection Criteria for Procurement and Engineering
5. Installation Integrity: The Difference Between Success and Failure
6. Ancillary Systems and Safety in Structural Installations
7. Sourcing American-Made Anchors: A Strategic Advantage
8. Conclusion
9. Frequently Asked Questions

Introduction

A single, well-installed anchor bolt, often unseen deep within a concrete foundation, can be engineered to withstand tensile forces exceeding 100,000 pounds—enough to support the weight of a fully loaded semi-truck. These unassuming components are the silent workhorses of our industrial world, securing everything from towering steel structures and heavy manufacturing equipment to critical safety railings. For the procurement manager under pressure to maintain an MRO budget, the design engineer specifying components for a new facility, or the business owner overseeing a critical expansion, a misunderstanding of how these fasteners work is not an option. The integrity of an entire project, and the safety of the people within it, often rests on these crucial connections.

This article will demystify the science and engineering behind anchor bolts. We will move beyond a superficial overview to explore the fundamental mechanical principles that allow them to generate such immense holding power. We'll provide a detailed breakdown of the primary anchor types, delve into the critical criteria for their selection, and underscore the non-negotiable importance of proper installation techniques.

Ultimately, this piece serves to reinforce a core principle: a deep, functional understanding of anchor bolt mechanics is essential for ensuring structural integrity, operational safety, and supply chain efficiency. Sourcing these vital components from a trusted network of verified U.S. manufacturers isn't just a matter of preference; it's a strategic decision that underpins the success of any industrial enterprise. Here at Maden.co, we are dedicated to providing direct access to the American-made components that build and maintain our nation's infrastructure.

The Fundamental Principles: How Anchors Generate Force

At its core, an anchor bolt's job is to transfer a load from an attached fixture (like a machine base or a support column) into a base material, most commonly concrete or masonry. The "magic" lies in how the anchor generates resistance within the borehole to counteract the forces—tension (pulling out) and shear (pulling sideways)—acting upon it. This resistance is achieved through one of three primary mechanisms: frictional resistance, keying, or bonding.

The Three Core Mechanisms of Action

Frictional Resistance

This is the principle behind the most common types of post-installed mechanical anchors, such as wedge and sleeve anchors. The process involves creating immense outward pressure against the walls of the drilled hole.

• How it Works: As the anchor is tightened, a conical expander wedge is pulled up through a sleeve or set of expansion clips. This forces the sleeve to expand radially, pressing outward against the concrete. The resulting friction between the expanded anchor body and the concrete is what generates the anchor's holding power. The greater the expansion force, the greater the friction, and the higher the anchor's capacity to resist pull-out loads. The quality of the concrete and the roughness of the borehole wall play significant roles in the effectiveness of this mechanism.

Keying (Mechanical Interlock)

Keying, also known as bearing, creates a physical, mechanical interlock between the anchor and the base material. Instead of relying on friction, it creates a shape within the concrete that physically prevents the anchor from being pulled out.

• How it Works: This is the primary mechanism for cast-in-place anchors like J-bolts or L-bolts. The bent portion of the bolt becomes fully encased when the concrete cures, creating a hook that cannot be withdrawn without causing a massive cone-shaped failure in the concrete itself. For post-installed anchors, this principle is employed by undercut anchors. These require a special drilling process to carve out a "keying" zone at the bottom of the borehole. The anchor then expands to fill this void, creating a positive mechanical connection that is not reliant on expansion forces and is exceptionally resistant to dynamic and shock loads.

Bonding (Adhesion)

The third mechanism is chemical, relying on the incredible strength of modern industrial adhesives to create a continuous bond between the anchor element (typically a threaded rod or rebar) and the surrounding concrete.

• How it Works: Adhesive anchoring systems use a two-part resin, often epoxy, vinyl ester, or polyester, which is injected into a meticulously cleaned borehole. The anchor element is then inserted, and the adhesive cures, forming a solid, monolithic bond with both the steel anchor and the porous concrete. This method effectively "glues" the anchor in place, distributing the load over the entire bonded length. This distribution of stress makes adhesive anchors ideal for applications near the edge of concrete slabs or in situations where multiple anchors are placed close together, as they induce very little stress into the base material during installation.

A Taxonomy of Anchor Bolts: Choosing the Right Tool for the Job

Understanding the three core mechanisms is the first step. The next is recognizing how they are applied in the different types of anchors available. The choice is dictated by the application, the stage of construction, the required load capacity, and the nature of the base material. At Maden.co, we are committed to providing the transparency and access needed to make these critical decisions. Our entire business model is built on this principle; you can learn more about our mission to champion American manufacturing here.

Category 1: Cast-in-Place Anchors

These are the heavyweights of the anchoring world, integrated directly into the structure during its creation.

• Description: As the name implies, cast-in-place anchors are positioned in the formwork before the concrete is poured. Common types include J-bolts, L-bolts, and headed anchor bolts (also known as anchor rods with a forged head or a plate welded to the embedded end).
• How They Work: Their holding power comes almost exclusively from the keying/bearing mechanism. The shape of the embedded end provides a permanent mechanical interlock once the concrete has fully cured around it.
• Applications: They are the standard for foundational connections in new construction. You'll find them securing structural steel columns to foundations, anchoring heavy industrial machinery like presses and turbines, and fastening the bases of towers and large-scale equipment.
• Pros: When designed and installed correctly, they offer the highest possible load capacity and become an integral part of the reinforced concrete structure.
• Cons: Their primary drawback is a complete lack of flexibility. Their position is permanent. Any error in placement during the pour can lead to costly and time-consuming remediation work.

Category 2: Post-Installed Mechanical Anchors

This is the most diverse and widely used category, offering solutions for retrofitting, MRO, and applications where cast-in-place anchors are not feasible. They are installed into hardened, fully cured concrete.

Sub-type A: Expansion Anchors

These anchors work on the principle of frictional resistance and are valued for their speed of installation and reliability in many common applications.

• Mechanism: As discussed, they generate holding power by expanding to create a friction grip against the wall of the borehole.
• Examples:
  • Wedge Anchors: A threaded stud with a single expansion clip and a conical wedge at the bottom. Extremely popular for medium-to-heavy-duty fastening of steel plates and equipment feet.
  • Sleeve Anchors: A bolt that passes through a cylindrical sleeve. As the bolt is tightened, it pulls up a cone, forcing the sleeve to expand along its entire length. This makes them suitable for a wider range of base materials, including block and brick.
  • Drop-In Anchors: A female-threaded anchor that is set flush with the concrete surface. A setting tool is used to drive an internal plug downward, expanding the anchor body. This allows for easy removal of the bolted fixture.
• Best For: Generally best for static load applications in solid, non-cracked concrete. While some are rated for cracked concrete, their performance is typically higher in solid substrates.

Sub-type B: Undercut Anchors

When the highest performance is required from a post-installed anchor, especially under seismic or heavy dynamic loads, undercut anchors are the top-tier solution.

• Mechanism: They use the keying/bearing principle. A special drill bit or a secondary tool creates an "undercut" or bell shape at the bottom of the hole. The anchor has expanding components that deploy into this void, creating a positive mechanical interlock.
• Best For: Critical applications where failure is not an option. This includes securing curtain walls on high-rise buildings, heavy industrial equipment subject to vibration, and structural elements in seismically active regions. They offer superior performance in cracked concrete compared to expansion anchors because their holding power is not dependent on the concrete's tensile strength at the point of expansion.

Category 3: Post-Installed Adhesive (Chemical) Anchors

Adhesive anchors represent a pinnacle of anchoring technology, offering tremendous versatility and load-bearing capacity by leveraging the principle of bonding.

• Description: These systems consist of two components: a chemical adhesive (packaged in a dual-cartridge system or a glass capsule) and a threaded anchor element.
• Mechanism: The adhesive is injected into the hole, and the anchor is inserted. The chemical reaction cures the adhesive, creating an incredibly strong bond between the steel anchor and the concrete substrate. The load is distributed evenly along the entire length of the embedment, which is a key advantage.
• Pros:
  • High Load Capacity: Can often meet or exceed the capacity of cast-in-place anchors.
  • Stress-Free Fastening: Because they don't rely on expansion forces, they induce virtually no stress in the concrete. This allows for installations closer to edges and closer to other anchors.
  • Versatility: Ideal for securing rebar for structural extensions, anchoring in cracked concrete, and use in oversized or irregularly shaped holes.
• Cons: The installation process is highly technique-sensitive. The cleanliness of the hole is absolutely paramount, and cure times, which vary with temperature, must be strictly observed before the anchor can be loaded.

Critical Selection Criteria for Procurement and Engineering

Choosing the right anchor goes far beyond simply picking a type. For procurement professionals and engineers, a detailed analysis is required to ensure safety, compliance, and long-term performance.

Load Requirements

The forces the anchor will be subjected to are the primary consideration.

• Tension Load: The pull-out force trying to extract the anchor from the base material.
• Shear Load: The side-to-side force acting perpendicular to the anchor's axis.
• Combined and Dynamic Loads: Many connections are subjected to both tension and shear simultaneously. Furthermore, if the load is dynamic (vibratory, like from a running motor) or seismic, this must be factored in, often requiring anchors specifically rated for such conditions.

Base Material Properties

The anchor is only as strong as the material it's installed in.

• Concrete Strength: The compressive strength of the concrete (measured in PSI) directly impacts the holding capacity of most anchors.
• Cracked vs. Non-Cracked Concrete: Concrete under tensile stress can develop fine cracks. While invisible to the naked eye, these cracks can significantly reduce the holding power of standard expansion anchors. For any application where cracking is possible (e.g., the tension zone of a suspended slab), it is crucial to use anchors specifically tested and qualified for use in cracked concrete.
• Other Materials: Anchoring into hollow block, brick, or natural stone requires specialized anchors and techniques to avoid fracturing the base material.

Environmental Factors

The operational environment will dictate the anchor's material and any required protective coatings.

• Corrosion Resistance: For interior, dry applications, plain carbon steel or zinc-plated steel is often sufficient. For exterior applications, damp environments, or exposure to chemicals, hot-dip galvanized or stainless steel (typically Type 304 or, for more aggressive environments like marine settings, Type 316) is necessary to prevent corrosion that could compromise the connection's integrity over time.

Material Certifications and Compliance

For any industrial or commercial project, traceability and compliance are non-negotiable. Sourcing from unverified suppliers introduces unacceptable risk. At Maden.co, our mission is to democratize access to American manufacturing, connecting industrial buyers with over 2.5 million products from our network of 800+ verified U.S. manufacturers. This ensures you can easily source components that meet stringent standards (ASTM, ASME, DIN, etc.) and obtain the necessary documentation like Mill Test Reports (MTRs) to guarantee material composition and performance.

Installation Integrity: The Difference Between Success and Failure

An anchor's published load capacity is only achievable if it is installed perfectly according to the manufacturer's instructions. A high-quality anchor installed improperly will fail long before a standard anchor installed correctly.

The Unforgiving Importance of Hole Preparation

The first step is the most critical.

• Correct Diameter and Depth: The drill bit must be the correct diameter as specified by the manufacturer to ensure the proper fit and expansion. The hole must be drilled to the required depth to achieve the necessary embedment.
• The Critical Role of Cleaning: For mechanical anchors, dust and debris can prevent the expansion mechanism from fully engaging, drastically reducing friction. For adhesive anchors, it's even more critical. A hole that is not meticulously cleaned of all dust (typically with a wire brush and compressed air) will result in the adhesive bonding to the dust, not the concrete, leading to a catastrophic bond failure at a fraction of the expected load.

Achieving Proper Preload: Torque vs. Tension

Tightening an anchor isn't just about making it snug; it's about applying a specific clamping force, or preload.

• Traditional Torque Wrenches: For most mechanical anchors, installation specifications call for a specific torque value. A calibrated torque wrench is used to tighten the nut, which in turn creates the expansion and clamping force. However, torque is an indirect measure of tension. A significant and unpredictable portion of the applied torque (often over 80%) is consumed by friction between the nut and the washer and in the threads, not by stretching the bolt.
• Advanced Hydraulic Tensioning: For critical, high-load foundation bolts, a more precise method is required. Hydraulic bolt tensioning directly applies an axial tensile load to the bolt. The tool grips the threads and pulls on the bolt, stretching it like a spring. While the bolt is held in this tensioned state, the nut is easily run down to sit flush against the joint. When the hydraulic pressure is released, the bolt's desire to return to its original length creates the precise, predictable preload. This method eliminates the inaccuracies of friction and is the gold standard for critical connections.

For these demanding jobs, having access to premier American-made tooling is essential. Solutions like the Enerpac FTR-Series Foundation Bolt Tensioners are specifically designed for the wind energy and heavy construction industries, providing unparalleled accuracy and safety. The versatility of these systems means there are solutions for a wide range of bolt sizes and project scales, such as the robust Enerpac FTR-Series Foundation Bolt Tensioners, ensuring the right tool is available for any critical application.

Ancillary Systems and Safety in Structural Installations

A successful project views safety and support systems not as an afterthought, but as an integral part of the installation process. Anchor bolts secure the machinery, but a comprehensive plan secures the personnel and the surrounding environment. This holistic approach, which champions industrial excellence and safety, is a cornerstone of a well-managed operation.

Ensuring Personnel Safety on Site

During the installation of heavy equipment or the construction of platforms and mezzanines, the work area itself presents hazards. OSHA regulations strictly mandate the use of physical barriers to prevent falls and restrict access to dangerous areas. This is where the broader industrial ecosystem comes into play. It's not just about the strength of the anchor holding the machine; it's about the integrity of the safety systems protecting the installers. Components like the American-made JESCO 8 ft Guards Rail Safety Yellow Lift-Out Type are critical for creating safe work zones. Sourcing these essential safety products from reliable U.S. manufacturers ensures they meet the rigorous standards required for industrial environments, demonstrating a commitment to the entire project lifecycle, not just the core fastening components.

Sourcing American-Made Anchors: A Strategic Advantage

In a globalized world, the temptation to source components based solely on price can be strong. However, for critical components like anchor bolts, this approach is fraught with risk. The true cost of a failed connection—measured in downtime, damage, and potential injury—is astronomical. Sourcing from verified domestic manufacturers provides a clear strategic advantage.

• Quality and Traceability: U.S. manufacturers operate under some of the world's most stringent quality control standards. Sourcing domestically provides a clear chain of custody and easy access to material certifications.
• Supply Chain Resilience: Relying on domestic supply chains insulates your projects from the volatility of international shipping delays, tariffs, and geopolitical disruptions. This means more predictable lead times and better project management.
• Supporting the Industrial Base: Every purchase of an American-made product contributes to the strength and innovation of our domestic manufacturing sector. We believe "America's manufacturing revival is here," and we are proud to be a part of it.

Are you a U.S. manufacturer of high-quality industrial components? Register as a vendor and join us in strengthening the American supply chain.

Conclusion

Anchor bolts are a marvel of mechanical engineering, generating incredible strength through the core principles of friction, keying, or bonding. We've seen that their successful application depends on a rigorous selection process that accounts for load, base material, and environment, and that their ultimate performance is inextricably linked to the precision of their installation. For American businesses, the path to ensuring reliability and safety is clear.

By prioritizing high-quality, domestically sourced components, you reduce your Total Cost of Ownership (TCO), enhance supply chain resilience, and ensure compliance with critical industry standards. Don't let procurement friction or supply chain uncertainty slow down your critical projects. Explore our vast catalog of U.S.-made fasteners and industrial components today. If you have specific sourcing questions, our team is ready to help. To empower your procurement process further, you can apply for Instant Financing at checkout to streamline your capital-intensive projects and secure the parts you need, when you need them.

Frequently Asked Questions

1. What is the difference between a wedge anchor and a sleeve anchor?

A wedge anchor has a small expansion clip at its base and is primarily designed for high-holding power in solid concrete. A sleeve anchor has a much larger expansion sleeve that runs along the length of the bolt, which provides a more distributed bearing pressure. This makes sleeve anchors more versatile and suitable for a wider range of base materials, including softer or hollow materials like brick and concrete block, where a wedge anchor's concentrated expansion force could cause cracking.

2. Why is cleaning the hole so important for adhesive anchors?

For an adhesive anchor to work, the chemical resin must bond directly to the solid structure of the concrete. When a hole is drilled, a fine layer of concrete dust coats the entire surface. If this dust is not completely removed (typically with a wire brush and compressed air), the adhesive will bond to the loose dust particles instead of the concrete wall. This creates an incredibly weak connection that can fail at a small fraction of its designed load capacity. Proper cleaning is the single most critical step in adhesive anchor installation.

3. Can anchor bolts be used in brick or hollow block?

Yes, but you must use anchors specifically designed for these materials. Using standard expansion anchors meant for solid concrete in hollow block will likely result in the anchor expanding into a void or cracking the thin webbing of the block. For these applications, sleeve anchors are often a good choice. For hollow materials, specialized adhesive systems with screen tubes are also used. The screen tube contains the adhesive, allowing it to form a key within the hollow portion of the block as it cures.

4. What does "cracked concrete" mean and why does it matter for anchor selection?

All concrete has a high compressive strength but a low tensile strength. In structural elements like suspended slabs or beams, the areas subjected to tension (stretching) can develop microscopic cracks. While often invisible, these cracks can open and close as loads change. A standard expansion anchor relies on constant frictional pressure. If a crack forms and opens at the location of the anchor, the expansion force can be lost, severely compromising its holding power. Anchors rated for "cracked concrete" are specifically designed with follow-up expansion or keying mechanisms that allow them to maintain their load capacity even if a crack forms. It is a critical safety designation for many structural applications.
