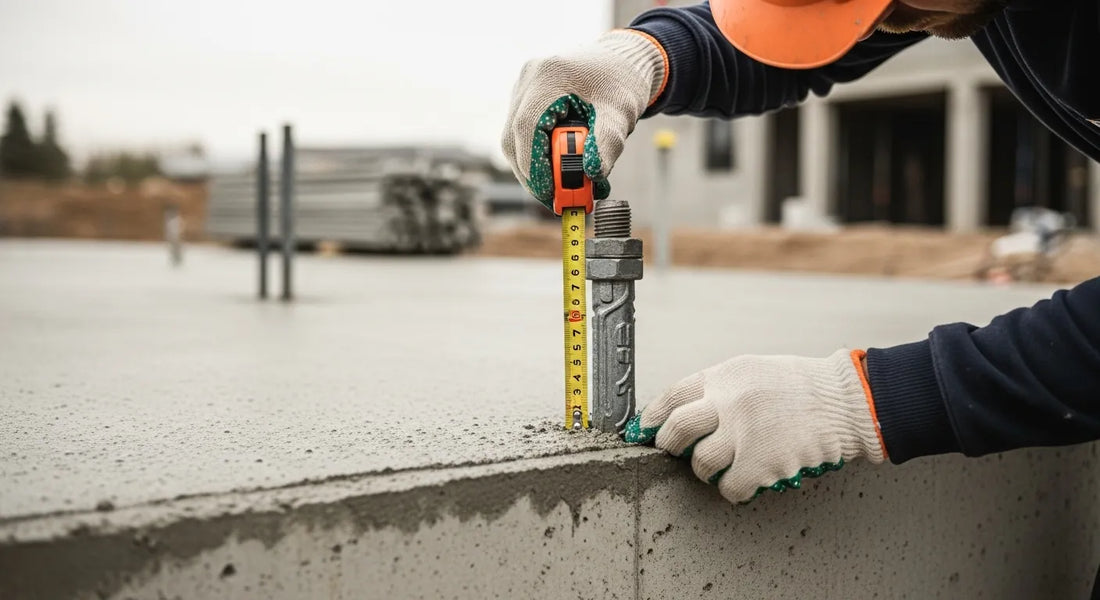

How Deep Should Anchor Bolts Be in a Concrete Slab?

Table of Contents

1. Introduction
2. The Critical Role of Embedment Depth in Structural Integrity
3. Key Factors Influencing Anchor Bolt Embedment Depth
4. Calculating Embedment Depth: From Rules of Thumb to ACI 318
5. Practical Applications and Sourcing the Right Components
6. The Maden.co Advantage: Building a Resilient American Supply Chain
7. Conclusion
8. Frequently Asked Questions (FAQ)

Introduction

Imagine the final walkthrough on a new industrial installation. The heavy machinery is in place, the safety barriers are installed, and the project is on the verge of completion. Then, the structural inspector points to an anchor bolt securing a critical piece of equipment and shakes their head. The embedment is too shallow, the installation fails inspection, and the entire project grinds to a halt. This scenario, a costly and frustrating setback, is all too common and stems from a misunderstanding of one of the most fundamental aspects of construction and industrial safety: anchor bolt embedment depth.

The question of "how deep should anchor bolts be in a concrete slab?" isn't one with a simple, one-size-fits-all answer. It’s a critical engineering question where precision is paramount. Getting it right ensures the safety of personnel, the integrity of multi-million dollar equipment, and the long-term reliability of your facility. Getting it wrong can lead to catastrophic failure, project delays, and significant financial loss. This article will serve as an authoritative resource for procurement managers, MRO buyers, and design engineers. We will move beyond simple rules of thumb to explore the complex interplay of factors that determine correct embedment depth, including concrete properties, anchor types, load dynamics, and the governing industry standards. The goal is to empower you with the knowledge to specify, source, and ensure the proper installation of anchoring systems, forming the bedrock of a safe and efficient industrial environment.

The Critical Role of Embedment Depth in Structural Integrity

At its core, an anchor bolt is a heavy-duty fastener designed to attach objects to a concrete base. Its function is to transfer loads—from machinery, structural columns, or safety railings—safely and securely into the concrete slab. The single most important parameter governing its performance is the effective embedment depth, which is the distance from the surface of the concrete to the deepest point of the anchor's load-transfer mechanism.

Why is this one measurement so critical? The entire strength of the anchor system relies on its interaction with the surrounding concrete mass.

• Shallow Embedment: If an anchor is not embedded deeply enough, it lacks the necessary engagement with the concrete. Under a tensional (pullout) load, it can simply pull straight out of the hole. Even more dangerous is the risk of a "concrete cone breakout." In this failure mode, the load exceeds the tensile strength of the concrete, and a cone-shaped chunk of concrete is ripped out from the slab, with the anchor attached. This is a brittle, sudden failure with no warning.
• Correct Embedment: When an anchor is embedded to the correct, engineered depth, it engages a sufficient volume of concrete. The load is distributed over a larger area, ensuring that the steel of the bolt will yield or fail long before the concrete gives way. This is the desired outcome, as steel failure is ductile and often preceded by visible deformation, providing a measure of safety.

The consequences of improper depth extend far beyond a failed inspection. They represent a fundamental compromise of industrial excellence and safety. For a business, this can manifest as:

• Safety Hazards: A poorly anchored machine can vibrate loose, and a guardrail can fail upon impact, leading to serious injury or death.
• Equipment Damage: Costly machinery can be damaged or destroyed if its foundation fails.
• Operational Downtime: Reworking faulty anchor installations means taking equipment offline, halting production, and incurring significant labor and material costs.
• Structural Failure: In the most extreme cases, improperly anchored structural elements can lead to a cascading failure of a building or other structure.

At Maden.co, our entire mission is built on fostering American manufacturing pride by connecting industrial buyers with the highest quality components. We believe that industrial excellence begins at the foundation, and that means understanding and respecting the engineering principles that ensure safety and reliability.

Key Factors Influencing Anchor Bolt Embedment Depth

Determining the proper embedment depth is a multi-faceted calculation that requires a thorough understanding of the entire system. An engineer must consider several critical variables, as a change in any one of them can significantly alter the final specification.

Concrete Strength and Condition

Concrete is not a uniform material. Its properties are the first and most important consideration.

• Compressive Strength (psi): This is the most common measure of concrete strength. It indicates how much pressure the concrete can withstand before crushing. A higher psi concrete (e.g., 5,000 psi) is stronger and has a higher tensile capacity than a lower psi concrete (e.g., 3,000 psi). For the same load, an anchor in stronger concrete may sometimes achieve the required capacity at a shallower depth. All engineering calculations must start with the specified compressive strength of the slab.
• Condition and Age: Freshly poured concrete must cure for a specified time (typically 28 days) to reach its designed compressive strength. Installing and loading anchors in "green" concrete can lead to premature failure. Furthermore, the condition of the existing slab is vital. Is it cracked, spalled, or made with lightweight aggregate? Any of these conditions will reduce the concrete's effective strength and require a re-evaluation of the anchor design, often necessitating deeper embedment or a different anchoring solution.

Anchor Bolt Type and Diameter

The design of the anchor itself dictates how it transfers load to the concrete and, therefore, its depth requirements.

• Cast-in-Place Anchors: These anchors, such as J-bolts, L-bolts, and headed studs, are positioned in the formwork before the concrete is poured. They offer the highest capacity because they rely on mechanical bearing and are fully integrated with the concrete matrix. Their required depth is determined by the design engineer based on the loads they will carry.
• Post-Installed Mechanical Anchors: These are installed into hardened concrete.
  • Wedge Anchors: A very common type, these are inserted into a drilled hole, and as the nut is tightened, a clip is forced to expand, wedging the anchor tightly against the walls of the hole.
  • Sleeve Anchors: Similar to wedge anchors, but an expanding sleeve provides a fuller contact area, often suitable for block or brick as well as concrete.
  • Undercut Anchors: These require a special drill bit to create an "undercut" at the bottom of the hole. The anchor then expands into this larger cavity, creating a mechanical interlock that is extremely resistant to pullout and ideal for dynamic loads.
• Post-Installed Adhesive (Epoxy) Anchors: This system involves a threaded rod or rebar set into a drilled hole using a high-strength epoxy or other adhesive. The adhesive bonds the anchor to the concrete. This method is incredibly versatile, can be used close to edges, and can achieve very high load capacities. The embedment depth is a critical factor in determining the total bonded surface area, which directly correlates to its strength.

The diameter of the bolt is also directly proportional to the embedment depth. A 1/2-inch anchor bolt will require a significantly shallower embedment than a 1-inch anchor bolt to achieve a comparable stress distribution in the concrete.

Applied Loads: Tension, Shear, and Combined Forces

Anchors must resist the specific forces exerted by the object they are securing.

• Tension Load: This is a force that tries to pull the anchor straight out of the concrete. Examples include anchoring the columns of a pre-engineered metal building that are subject to wind uplift.
• Shear Load: This is a force that acts parallel to the concrete surface, trying to slice the anchor off. An example is the base of a guardrail that must resist the impact of a forklift.
• Combined Loads: Most applications involve a combination of tension and shear forces. For instance, a piece of vibrating machinery exerts both downward (compressive), upward (tensional), and side-to-side (shear) forces. The anchor system must be designed to resist the most critical combination of these loads.
• Dynamic vs. Static Loads: A static load, like the weight of a stationary storage rack, is constant. A dynamic load, like the one from a stamping press or a robotic arm, involves vibration, shock, and cyclical loading, which can be much more demanding on an anchor system and often requires deeper embedment and specialized anchor types.

Edge Distance and Anchor Spacing

It's a common mistake to think of the concrete slab as an infinitely large mass. The location of the anchor on the slab is just as important as its depth.

• The Concrete Breakout Cone: When an anchor is under tension, it doesn't just pull on the area immediately around it. It engages a "cone" of concrete that extends from the bottom of the anchor up to the surface.
• Edge Distance: If an anchor is placed too close to a free edge of the concrete slab, a portion of this theoretical stress cone is cut off. This drastically reduces the anchor's capacity and makes it susceptible to a "side-face blowout" failure. To compensate, anchors near edges often need to be embedded much deeper, or their allowable load must be significantly reduced.
• Anchor Spacing: Similarly, if multiple anchors are placed too close to each other, their stress cones will overlap. This means they are competing for the same mass of concrete to resist the load. This interaction reduces the capacity of the entire anchor group. To prevent this, anchors must be spaced sufficiently far apart, or the design must account for the group effect, which again may require deeper embedment.

Calculating Embedment Depth: From Rules of Thumb to ACI 318

With a clear understanding of the influencing factors, the next step is determining the specific depth. This process ranges from simple guidelines for non-critical applications to complex engineering calculations for structural connections.

General Rules of Thumb (Use with Extreme Caution)

You may hear contractors or maintenance personnel mention rules of thumb like "embed the anchor to a depth of 4 times its diameter" (4D) or 8D.

Important Disclaimer: These rules are highly generalized and should never be used for structural applications, life-safety systems, or anchoring dynamic machinery. They do not account for concrete strength, edge distances, spacing, or specific load types. Their use is limited to very light-duty, non-critical applications, such as anchoring a small workbench to a garage floor.

Relying on these generalizations for anything significant is a direct path to liability and potential failure. The risk simply isn't worth it.

The Manufacturer's Specification: Your First Point of Reference

For any post-installed anchor, the manufacturer provides the most critical document: the Installation Instructions and Technical Data Sheet. Reputable manufacturers perform extensive testing to determine the performance of their products in various conditions. These documents will specify:

• The required drill bit diameter and hole depth.
• The required installation torque.
• Load capacity tables for different embedment depths and concrete strengths.
• Minimum edge distance and spacing requirements.

Following the manufacturer's instructions is not optional; it is essential for the anchor to perform as designed. Sourcing components through a trusted B2B marketplace like ours ensures you have access to products from verified U.S. manufacturers who provide this critical documentation and stand behind their products' performance.

The Engineering Gold Standard: ACI 318

For any application that is structural in nature—from building columns to mezzanines to critical equipment platforms—the governing standard in the United States is the ACI 318, "Building Code Requirements for Structural Concrete," published by the American Concrete Institute.

This document outlines the required methodology, known as the Concrete Capacity (CC) Design method, for calculating the strength of anchor connections. This is a complex, physics-based approach that requires a qualified structural engineer to perform. The engineer will analyze all five potential failure modes:

1. Steel strength of the anchor in tension.
2. Concrete breakout strength in tension.
3. Pullout strength of the anchor.
4. Steel strength of the anchor in shear.
5. Concrete breakout strength in shear.

The engineer calculates the anchor system's capacity for each of these failure modes. The lowest calculated value becomes the design strength of the connection, and the embedment depth is a primary variable in these calculations. This rigorous process ensures that a safe and reliable connection is designed, accounting for all the factors we've discussed.

Practical Applications and Sourcing the Right Components

Understanding the theory is one thing; applying it to real-world industrial scenarios is another. For procurement and MRO professionals, the challenge is often sourcing the right components to meet these demanding engineering specifications.

Securing Heavy Machinery and Equipment

Consider an MRO manager tasked with installing a new CNC machine. The manufacturer specifies that it must be anchored to the 6-inch concrete slab to prevent "walking" from vibration and to ensure precision. The engineering plan calls for 3/4-inch diameter undercut anchors embedded to a depth of 5 inches to handle the dynamic loads. This installation is also part of a larger facility upgrade that includes new safety zones. To protect the new machine and its operators, a perimeter must be established. For this, a product like the Jesco Extra Heavy Duty 96" Welded Rail System is ideal. The integrity of this entire safety system—and the expensive machinery it protects—begins with the anchor bolts being installed to the correct 5-inch depth in the slab.

Installing Safety and Guardrail Systems

A facility manager facing an OSHA audit needs to install protective barriers along forklift traffic lanes to safeguard pedestrian walkways. The solution is to install dozens of heavy-duty guardrails. The base plates of a product like the Jesco Guard Rails 10ft Safety Yellow Barrier Rail require four anchor bolts each. The critical question isn't just about placing the rail; it's about ensuring it can withstand a 10,000-pound forklift impact at 4 mph, a common industry standard. This performance is entirely dependent on the anchor bolts being embedded deeply enough to transfer that massive shear load into the concrete slab without failing. A shallow embedment would cause the entire railing post to be ripped from the floor during an impact, rendering it useless.

High-Tension Structural Applications

In large-scale construction or energy projects, design engineers often work with massive anchor bolts for foundations, wind turbines, or large steel superstructures. These applications require not only significant embedment depth but also a precise amount of tension, or "preload," in the bolt. Achieving this preload is impossible if the anchor isn't securely embedded. If the embedment is insufficient, attempting to tension the bolt will simply pull the anchor out of the concrete. Specialized tools are required for this process. For example, the Enerpac FTR-Series Foundation Bolt Tensioners are designed to apply precise tension to these large-scale fasteners. Sourcing such specialized, American-made industrial equipment relies on a transparent and efficient supply chain, a core tenet of our mission at Maden.co.

The Maden.co Advantage: Building a Resilient American Supply Chain

In each of these scenarios, success hinges on two things: correct engineering knowledge and access to reliable, high-quality components. This is where our values of Supply Chain Transparency and Customer Empowerment become critical assets for your business.

At Maden.co, our mission is to democratize access to American manufacturing. We connect industrial buyers directly with a network of over 800 verified U.S. manufacturers, offering more than 2.5 million products. When you source an anchor bolt or a complete guardrail system through our platform, you gain confidence that the components meet rigorous domestic quality standards and that the technical specifications provided are accurate. This transparency is vital for ensuring the calculations and plans made by your engineers can be executed faithfully on the shop floor.

This digital innovation is designed to reduce procurement friction. Instead of spending days tracking down a specific type of anchor from a reputable domestic supplier, you can find it, compare it, and procure it in minutes. For capital-intensive projects requiring large orders of fasteners, safety equipment, or structural components, managing cash flow is paramount. That's why we offer a strategic advantage to help you move forward. You can apply for Instant Financing at checkout to streamline your purchasing process and keep your projects on schedule and on budget.

Our vision is to become the definitive platform that proves American-made components are as accessible and convenient as any global alternative. We believe America's manufacturing revival is here, and we are proud to be building the digital infrastructure to support it. If you share that vision, we invite you to join us. Are you a U.S. manufacturer? Register as a vendor and join the movement. For any specific sourcing questions, our team is ready to help.

Conclusion

The depth of an anchor bolt in a concrete slab is far more than a simple measurement; it is the linchpin of structural integrity and industrial safety. We've seen that this critical dimension is not based on guesswork or outdated rules of thumb but on a careful engineering analysis of the concrete, the anchor type, the specific loads, and the anchor's placement. For any non-critical application, the manufacturer's instructions are the law. For any structural or safety-critical system, the calculations must be performed by a qualified engineer following the standards of ACI 318.

By prioritizing correct engineering and sourcing high-quality, domestically-produced components, you are not just ensuring compliance; you are investing in the long-term safety, efficiency, and resilience of your operations. This commitment to industrial excellence is the foundation upon which strong businesses and a strong national manufacturing base are built.

Start building a more resilient and reliable foundation for your projects today. Explore our vast catalog of American-made industrial components and simplify your procurement with Instant Financing available at checkout.

Frequently Asked Questions (FAQ)

What is the absolute minimum embedment depth for an anchor bolt? There is no universal minimum, as it is entirely dependent on the specific anchor, the load it must carry, and the strength of the concrete. The shallowest acceptable depth is always what is specified by the manufacturer's load tables for a given application. For some common light-duty wedge anchors, this may be around 1-1/2 inches, but this figure should never be used as a substitute for proper engineering or the manufacturer's data.

Can I drill the hole deeper than required for the anchor? Generally, drilling the hole deeper than the specified minimum will not negatively affect the performance of a mechanical anchor. The critical dimension is the "effective embedment depth," which is achieved when the anchor is installed. For adhesive anchors, a deeper hole will require more epoxy to fill the annular space, so you should follow the manufacturer's recommendations closely. In all cases, thoroughly cleaning dust and debris from the hole is crucial for proper performance.

What happens if an anchor bolt is not embedded deep enough? An anchor with insufficient embedment will have a significantly reduced load capacity and is at high risk of failure. The two most common failure modes are pullout, where the anchor slips out of the hole, and concrete cone breakout, where a cone-shaped section of the concrete slab is ripped out. Both are sudden, brittle failures that can lead to equipment damage, structural collapse, and serious safety incidents.

How do I know I'm buying a quality anchor bolt compliant with U.S. standards? The most reliable method is to source components from verified and reputable manufacturers who provide comprehensive technical data and stand behind their products. Platforms that prioritize supply chain transparency are invaluable. At Maden.co, we connect you directly with over 800 verified U.S. manufacturers, providing confidence that the components you purchase are built to meet rigorous industry standards and perform as specified. You can learn more about our mission to champion American manufacturing here.
