Introduction

A multi-ton CNC machine, a towering pallet rack system, a critical safety guardrail—what do they all have in common? Their stability, safety, and operational integrity rely entirely on their connection to the concrete floor beneath them. This connection is made possible by an often-underestimated component: the concrete anchor. The failure of a single anchor can lead to equipment damage, production downtime, and, most critically, severe safety hazards. Understanding the fundamental mechanics of how these fasteners achieve their incredible holding power is not just an academic exercise; it's a prerequisite for any procurement manager, MRO buyer, or design engineer responsible for the safety and efficiency of an industrial facility. This article will deconstruct the science behind concrete anchoring. We will explore the core principles of mechanical and chemical fastening, detail the various types of anchors and their specific use cases, and equip you with the knowledge to specify and source the right component for your application with confidence. By mastering these concepts, you can move beyond simply buying a part and begin strategically building a more secure and resilient operational foundation.

The Science Behind the Grip: Core Operating Principles

At its core, a concrete anchor is designed to transfer a load—whether it's the weight of a machine, the force of an impact, or the tension on a cable—into a solid, non-ductile base material like concrete, brick, or block. Unlike fastening to wood or steel, you cannot simply drill a hole and drive a standard screw. Concrete lacks the fibrous or ductile nature that allows traditional threads to bite and hold. Instead, anchors must create their holding power through one of two primary mechanisms: mechanical interlock (friction) or chemical adhesion (bonding).

Mechanical Anchors: The Power of Expansion and Friction

Mechanical anchors are the most common type used in industrial settings. They function by expanding within a pre-drilled hole. This expansion force presses the anchor body outwards against the walls of the hole. This outward pressure generates an immense amount of friction between the anchor and the concrete. It's this frictional force that resists any attempt to pull the anchor out (tensile load) or slide it sideways (shear load). The anchor essentially becomes "wedged" in place, creating a powerful mechanical interlock with the base material. The effectiveness of this mechanism depends on the quality of the concrete, the cleanliness of the hole, and the design of the anchor itself.

Adhesive Anchors: The Chemical Connection

Adhesive anchors, also known as chemical or epoxy anchors, work on a completely different principle. Instead of friction, they rely on a powerful bonding agent to secure a threaded rod or rebar into the concrete. This process involves drilling a hole, cleaning it meticulously, and then injecting a two-part epoxy, acrylic, or hybrid resin. The threaded rod is then inserted, and the adhesive cures, forming an incredibly strong, monolithic bond with both the anchor element and the surrounding concrete. This method distributes the load stress over a much larger surface area compared to a mechanical anchor's focused pressure points. This makes them ideal for applications near the edge of a concrete slab or in situations involving significant vibration, as the adhesive helps to dampen dynamic forces.

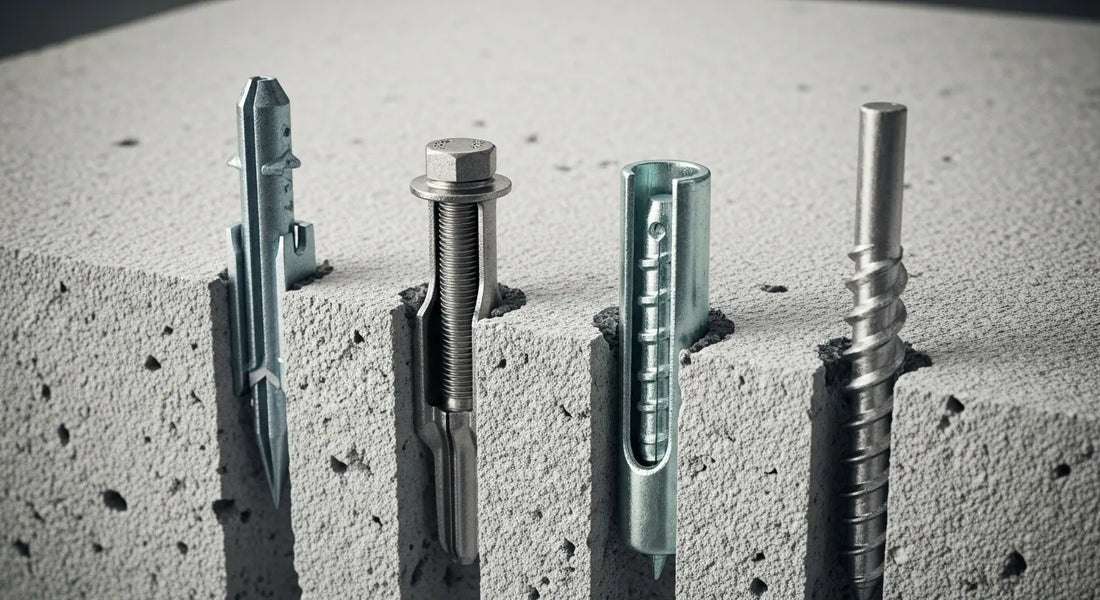

A Deep Dive into Mechanical Anchor Types

Within the category of mechanical anchors, there are several distinct designs, each engineered for specific applications and load requirements. As a leader in providing access to American-made industrial components, we at Maden.co see procurement professionals specifying these types daily. Understanding the nuances between them is key to a successful installation.

Expansion Anchors

Expansion anchors are the workhorses of the mechanical anchor world. They are reliable, strong, and available in various configurations.

Wedge Anchors

A wedge anchor is a one-piece, heavy-duty anchor consisting of a threaded stud, a nut, a washer, and an expansion clip at the bottom. After being inserted into a pre-drilled hole, tightening the nut pulls the stud upwards, forcing the expansion clip to ride up a tapered cone at the base of the anchor. This action forces the clip to expand outwards, "wedging" it securely against the walls of the concrete hole. They are known for their exceptional tensile strength, making them ideal for securing heavy equipment, structural steel columns, and heavy-duty racking.

Sleeve Anchors

Sleeve anchors feature a threaded stud enclosed within a cylindrical metal sleeve. As the bolt or nut is tightened, it pulls the tapered cone at the base of the stud up into the sleeve. This causes the sleeve to expand along its entire length, providing 360-degree contact with the concrete. This design is particularly effective in softer or less consistent base materials like block or brick, where the broader contact area helps to distribute the load more evenly and prevent breakout.

Shield Anchors

For applications requiring a flush-mounted, removable anchor, the shield anchor is an excellent choice. This type consists of a pre-assembled expander shell and a conical plug. For example, the Zamac Alloy Single Expansion Shield Anchor is a robust, U.S.-made option perfect for medium-duty fastening of components like pipe hangers, support brackets, or electrical junction boxes. The anchor is placed in the hole, and as a machine bolt is threaded into it, the internal plug is drawn upwards, forcing the shield to expand. Because the bolt can be removed, this allows for temporary installations or machinery maintenance without abandoning the anchor point.

Undercut Anchors

For the most demanding, safety-critical applications, undercut anchors provide the highest level of performance. This two-step process involves drilling a standard hole and then using a special tool to create a larger, "undercut" cavity at the bottom. The anchor is then inserted, and its mechanical "keys" are expanded into this cavity. This creates a positive mechanical interlock that is not reliant on friction alone. It's physically keyed into the concrete, offering unparalleled resistance to both tensile and dynamic loads, making it the choice for seismic zones, curtain walls, and critical infrastructure.

Screw Anchors

Concrete screw anchors, like the popular Tapcon brand, offer a unique blend of strength and convenience. They feature specialized, hardened threads that are designed to cut their own mating threads into concrete, block, or brick. They are installed quickly with a standard drill and offer good load performance for light to medium-duty applications. A key advantage is their removability. Because they thread into the concrete rather than permanently expanding, they can be taken out, making them ideal for temporary fixtures, formwork, and applications where adjustments may be needed.

Understanding Adhesive Anchoring Systems

Adhesive anchors have revolutionized heavy-duty fastening, offering capabilities that mechanical anchors cannot. Their ability to perform near edges and in cracked concrete, coupled with their superior resistance to vibration, makes them indispensable in modern construction and industrial retrofitting.

The installation process is more complex but yields incredible results. It begins with drilling a hole to the specified diameter and depth. The next step is the most critical: cleaning the hole. Any dust or debris left in the hole will compromise the bond strength. This is typically done with a wire brush and compressed air, repeated until the hole is perfectly clean.

Next, the adhesive is injected from the bottom of the hole outwards to prevent air pockets. These adhesives come in two-part cartridges that are mixed automatically in the dispenser nozzle. Common types include:

• Epoxy Adhesives: Offer the highest bond strength and chemical resistance. They have a longer curing time, which can be an advantage for deep embedments or complex adjustments, but also means a longer wait before the anchor can be loaded.
• Acrylic and Hybrid Adhesives: These have much faster curing times, allowing for quicker installation and loading. They offer excellent performance and are often preferred for their balance of strength and speed.

Once the adhesive is injected, the threaded rod or rebar is slowly twisted into the hole to ensure full coverage. After the specified cure time, the anchor is ready to be loaded. The resulting bond is so strong that in a pull-out test, the concrete base material will often fail before the adhesive bond does.

Choosing the Right Anchor: Key Considerations for Procurement Professionals

Specifying the correct anchor is a technical decision with significant business implications. An over-specified anchor increases project costs, while an under-specified one introduces unacceptable risk. Procurement and engineering teams must consider several critical factors.

Load Requirements

The forces acting on the anchor are the primary consideration.

• Tensile Load (Pull-out): The force trying to pull the anchor straight out of the hole. This is critical for overhead applications like hanging pipes or HVAC units.
• Shear Load (Side Force): The force acting perpendicular to the anchor, trying to slice it off. This is the dominant load on anchors securing the base plates of columns or machinery.
• Dynamic Loads: Vibrations from operating machinery or seismic activity create cyclical loads that can cause mechanical anchors to loosen over time. Adhesive anchors are often superior in these conditions.

Base Material and Condition

The type and quality of the concrete are paramount.

• Compressive Strength: Measured in pounds per square inch (PSI), this indicates the hardness of the concrete. Stronger concrete provides better holding values.
• Cracked vs. Uncracked Concrete: Concrete under tension (e.g., the bottom of a suspended slab) can develop fine cracks. An anchor must be specifically rated for "cracked concrete" to be used in these areas, as a standard expansion anchor may lose significant capacity if a crack propagates through the hole.
• Material Type: Anchoring into lightweight concrete, hollow block, or brick requires specialized anchors, like sleeve anchors, that distribute pressure over a wider area.

Environmental Factors

The operational environment will dictate the required material and coating of the anchor.

• Corrosion: In wet, humid, or corrosive chemical environments, standard carbon steel anchors will rust and fail. Stainless steel (Types 304 or 316) or specialized coatings like hot-dip galvanization are required for longevity.
• Temperature: Both high and low temperatures can affect anchor performance, particularly for adhesive anchors, which have specific installation and service temperature ranges.

Installation Quality

An anchor's performance is only as good as its installation. This is a critical point that reinforces the need for a reliable supply chain. Sourcing from verified manufacturers ensures that the product comes with clear, precise installation instructions that, when followed, will yield the published load values. Key installation factors include:

• Hole Diameter: Using the correct ANSI-standard drill bit is essential. An oversized hole will prevent a mechanical anchor from expanding properly.
• Hole Depth: The hole must be drilled to the specified depth to achieve the required embedment.
• Hole Cleaning: As mentioned, this is absolutely critical for adhesive anchors and highly recommended for mechanical anchors to ensure maximum frictional contact.
• Torque: Mechanical anchors must be tightened to the manufacturer's specified torque value. Under-tightening results in low holding power, while over-tightening can damage the anchor or the concrete.

Anchors in Action: Securing the Modern Industrial Facility

The principles of anchoring are applied every day in facilities across the country. The safety and productivity of these environments depend on the proper application of these components in systems that protect both people and property.

For example, in a high-traffic warehouse, protecting valuable racking from forklift impacts is a top priority. A product like the Heavy Duty Steel Rack End Protector Extension Kit is a vital piece of safety equipment. This protector is only effective if it's securely fastened to the floor with heavy-duty mechanical anchors capable of withstanding significant shear forces from an impact. The anchors are the unseen heroes that absorb and transfer that impact energy into the concrete slab, preventing a costly rack collapse.

Similarly, delineating pedestrian walkways from vehicle traffic is a fundamental safety requirement. Installing a barrier like the Jesco Guard Rails 10ft Safety Yellow Barrier Rail creates a physical separation that directs flow and prevents accidents. Each base plate of that guardrail system must be secured with multiple anchors. The choice of anchor here—whether wedge or adhesive—depends on the concrete condition and the potential for impact. The integrity of the entire 10-foot rail section is wholly dependent on the handful of anchors holding it down. Sourcing these anchors from a trusted, verifiable source is non-negotiable.

The Maden.co Advantage: Sourcing American-Made Anchors with Confidence

At Maden.co, our entire business model is built on strengthening American manufacturing and empowering the businesses that rely on it. Our mission is to democratize access to the industrial components that form the backbone of our economy. You can learn more about our mission to champion American manufacturing here. When it comes to something as critical as a concrete anchor, the benefits of sourcing through our platform are tangible.

Supply Chain Transparency and Resilience

When you source an anchor through Maden.co, you are connecting with a network of over 800 verified U.S. manufacturers. This provides unparalleled transparency into your supply chain. You get access to detailed spec sheets, material certifications, and the assurance that you are procuring a high-quality component that meets rigorous American standards. This domestic network insulates your projects from the volatility of international shipping and geopolitical disruptions, ensuring you get the parts you need, when you need them. America's manufacturing revival is here, and it's built on the foundation of reliable components.

Digital Innovation and Procurement Efficiency

Our platform is designed to reduce procurement friction. For a busy engineer or MRO buyer, wasting hours searching for a specific anchor with the right material grade and load rating is a significant drain on productivity. Our powerful search and filtering tools allow you to quickly navigate over 2.5 million American-made products, compare specifications, and make informed decisions in minutes, not days. We believe that American-made components should be as accessible and convenient as any global alternative, and our technology makes that a reality.

If you are a U.S. manufacturer producing quality industrial components like concrete anchors, we invite you to join our mission. Register as a vendor and join the American manufacturing revival.

Customer Empowerment and Strategic Financing

We are committed to empowering our customers. For large-scale projects or capital-intensive equipment installations that require a significant volume of fasteners and other components, managing cash flow is critical. That's why we offer a strategic advantage directly within our procurement process. To streamline your capital-intensive projects and facilitate larger volume purchases without disrupting your budget, you can apply for Instant Financing at checkout. This isn't just a payment option; it's a tool to help you build and grow more efficiently. If you have specific sourcing questions or need assistance navigating our catalog, our team is ready to help.

Conclusion

The humble concrete anchor is a marvel of engineering, translating the principles of friction and adhesion into immense holding power. From the simple expansion of a shield anchor to the complex chemical bond of an epoxy system, these components are fundamental to the safety, stability, and productivity of any industrial operation. Understanding how they work is the first and most important step in selecting the right one.

Making the correct choice involves a careful analysis of load requirements, base material conditions, and environmental factors. It requires a commitment to proper installation and, crucially, a reliable source for high-quality, certified products. By partnering with Maden.co, you gain more than just a component; you gain access to a verified network of American manufacturers, a streamlined procurement process, and a partner dedicated to your success. We encourage you to explore our extensive catalog of U.S.-made fasteners and discover how our platform, combined with powerful tools like Instant Financing, can help you build your next project on a foundation of strength and confidence.

Frequently Asked Questions

1. What is the main difference between a mechanical anchor and an adhesive anchor? A mechanical anchor works by physically expanding to create friction against the walls of a pre-drilled hole, essentially wedging itself into the concrete. An adhesive anchor uses a chemical bonding agent, like epoxy or acrylic, to glue a threaded rod into the hole, creating a monolithic, stress-free connection with the concrete.

2. Can I reuse a mechanical concrete anchor once I remove it? Generally, no. Most mechanical anchors, especially expansion types like wedge and sleeve anchors, are considered single-use. The expansion mechanism is permanently deformed during the initial installation and cannot be reliably reset to achieve its original certified load capacity upon re-installation. Concrete screw anchors are an exception and can often be reused in a new hole.

3. Why is cleaning the hole so important, especially for adhesive anchors? For adhesive anchors, a clean hole is absolutely critical. Any dust or debris creates a barrier between the adhesive and the concrete, severely compromising the bond strength and leading to potential failure. For mechanical anchors, while less critical, a clean hole still allows for better contact and more consistent frictional performance.

4. What does the term "cracked vs. uncracked concrete" mean for anchor selection? Concrete can develop hairline cracks when it is under tensile stress (being pulled apart), such as on the underside of a floor slab. An anchor installed in an area that could potentially crack must be specifically tested and rated for "cracked concrete." These anchors are designed to maintain their holding power even if a crack forms and passes through the installation hole, a scenario where a standard anchor could fail.
