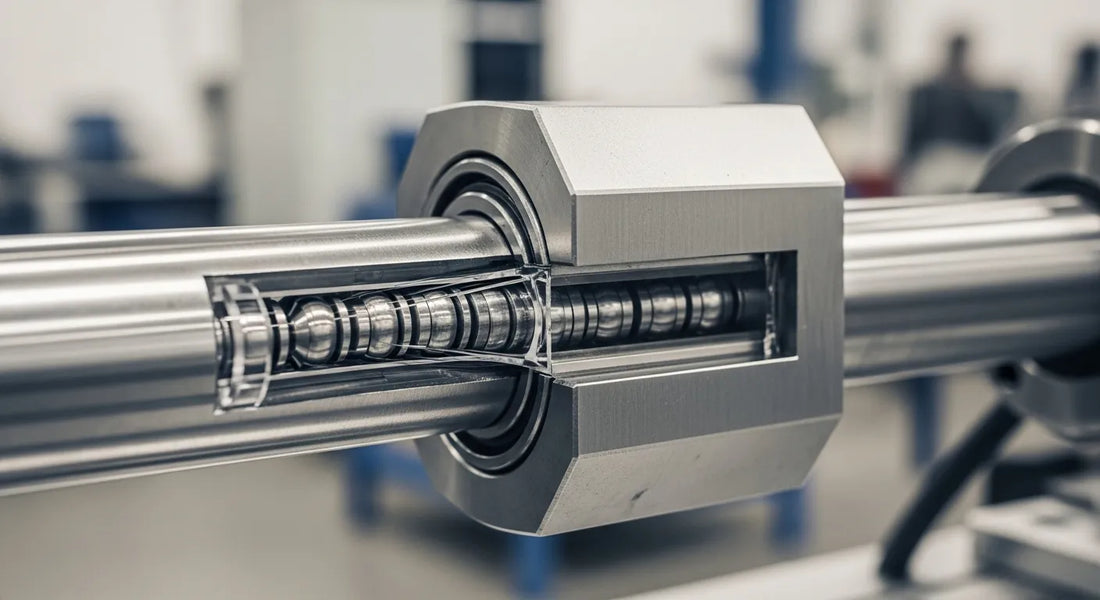

Introduction

A state-of-the-art CNC machine grinds to a halt mid-operation. The cause isn't a complex software glitch or a catastrophic power failure, but a component barely larger than a coin: a single, worn-out linear bearing. This scenario, all too familiar to MRO buyers and plant managers, highlights a critical truth in modern industry: the largest, most complex systems are only as reliable as their smallest, most fundamental components. Linear bearings are the unsung heroes of precision engineering, enabling the smooth, accurate, and low-friction motion that powers everything from automated assembly lines to medical imaging equipment. Without them, the world of modern manufacturing would literally seize up.

Understanding how these critical components function is not just an academic exercise; it's a strategic necessity for anyone involved in procurement, design, or maintenance. A deep knowledge of their mechanics, types, and performance characteristics empowers you to make smarter purchasing decisions, design more resilient machinery, and reduce the Total Cost of Ownership (TCO) through proactive maintenance and superior component selection. This article will deconstruct the science behind linear motion, exploring the core principles that govern how linear bearings work. We will dissect the different types, from ball bushings to roller guides, analyze the key performance metrics that define their capabilities, and discuss how sourcing high-quality, American-made components is fundamental to building a robust and competitive operation. Our goal is to equip you with the practical knowledge to not just fix problems, but to engineer them out of your systems from the start, leveraging the power of precision U.S. manufacturing available through platforms like Maden.co.

The Fundamental Principle: Overcoming Friction

At its core, a linear bearing is a device designed to solve one of physics' most persistent challenges: friction. Whenever one surface attempts to move along another, friction acts as a resistive force. In industrial applications, this force is a significant enemy of efficiency, precision, and longevity. It increases energy consumption, generates wear and tear, produces unwanted heat, and introduces inaccuracies into machine movements.

To understand how linear bearings work, we must first distinguish between the two primary types of friction they are designed to mitigate:

• Static Friction: This is the force that must be overcome to initiate movement between two stationary objects. It's the "sticking" force you feel when you first try to push a heavy box across the floor. In machinery, high static friction can cause jerky, imprecise starts, a phenomenon known as stiction.
• Kinetic (or Dynamic) Friction: This is the force that resists motion once an object is already moving. While generally lower than static friction, it continuously drains energy and contributes to component wear over the life of the machine.

Linear bearings conquer friction by fundamentally changing the nature of contact between moving parts. Instead of two flat surfaces sliding against each other (sliding friction), they introduce rolling elements—typically balls or rollers—between the moving and stationary components. This replaces high-resistance sliding friction with much lower-resistance rolling friction. The difference is profound. The coefficient of rolling friction can be hundreds of times lower than that of sliding friction, which translates directly into smoother motion, lower energy requirements, higher speeds, and greater positional accuracy. This simple yet brilliant principle is the foundation upon which all high-performance linear motion systems are built.

Core Components of a Linear Bearing System

While designs vary, nearly all rolling-element linear bearing systems are composed of three essential parts that work in concert to facilitate controlled, low-friction movement along a single axis.

1. The Rail (or Shaft)

This is the stationary, foundational track of the system. It provides the hardened, precision-ground pathway along which the bearing moves. Rails can be round (shafts) or profiled (with complex cross-sections featuring precisely machined raceways). The material, hardness, straightness, and surface finish of the rail are critical to the overall performance and lifespan of the system. Any imperfection in the rail will be transmitted through the bearing, affecting accuracy and causing premature wear.

2. The Carriage (or Block, Bushing)

This is the moving component that supports the load. It houses the rolling elements and is designed to mate perfectly with the corresponding rail. The carriage is the interface between the linear motion system and the part of the machine that needs to be moved, such as a tool holder, a measurement probe, or an assembly fixture. Its design dictates the load capacity, rigidity, and mounting options for the system.

3. The Rolling Elements

These are the heart of the bearing, the components that actively reduce friction. They are positioned between the rail and the carriage, creating a low-friction rolling interface. The two most common types are:

• Balls: Spherical elements that provide a single point of contact. This results in extremely low friction and allows for very high speeds, but generally offers a lower load capacity compared to rollers. Components like the U.S.-Made Standard Steel Ball Bearing Nylon Pulley showcase how integrated ball bearings facilitate smooth rotational motion, a principle directly applied to linear systems.
• Rollers: Cylindrical elements that provide a line of contact. This distributes the load over a larger area, resulting in significantly higher load capacity and greater rigidity than ball bearings. The trade-off is slightly higher friction.

In many designs, particularly ball bushing types, a recirculation system is integrated into the carriage. This allows the rolling elements to cycle through the load-bearing zone and then return to the start through a non-load-bearing channel within the carriage itself. This clever mechanism enables unlimited travel along the rail without the rolling elements ever falling out.

Types of Linear Bearings: A Functional Breakdown

The specific design and type of linear bearing chosen for an application depend heavily on the required load, speed, accuracy, and environmental conditions. Understanding the functional differences between these types is crucial for any design engineer or procurement manager.

Ball Bushing Bearings

Often referred to as linear ball bearings, these are one of the most common and versatile types. They typically run on a hardened and ground round shaft. Inside the bushing, several rows of ball bearings are arranged in a recirculating track. As the bushing moves along the shaft, the balls roll between the shaft and the inner wall of the bushing, providing smooth, low-friction motion.

• How They Work: Balls in the load-bearing zone support the weight and facilitate movement. As the bushing advances, these balls cycle out of the load zone and into a return channel within the bushing, moving back to the front to re-enter the load zone.
• Advantages: Very low friction, high-speed capability, self-aligning properties (in some designs), and relatively low cost.
• Limitations: Lower load capacity and rigidity compared to roller bearings due to the point contact of the balls. They can be more susceptible to contamination if not properly sealed.
• Typical Applications: 3D printers, laboratory automation, packaging equipment, and light-duty material handling systems where speed and smooth motion are prioritized over heavy load support.

Roller Bearings

When an application demands high load capacity and rigidity, roller-type linear bearings are the superior choice. Instead of balls, these systems use cylindrical or crossed rollers as the rolling elements.

• How They Work: Rollers provide a line of contact with the raceways, distributing the load over a much larger surface area. This dramatically increases the system's ability to handle heavy loads and resist deflection under force. Crossed roller bearings, for example, arrange cylindrical rollers at 90-degree angles to each other, allowing them to handle loads from any direction with exceptional rigidity.
• Advantages: Extremely high load capacity, outstanding rigidity, and excellent positional accuracy. They are ideal for applications involving high torque or moments.
• Limitations: Higher friction and lower maximum speed compared to ball bearings. They are generally more expensive and less forgiving of misalignment.
• Typical Applications: CNC machine tools, industrial robotics, injection molding machines, and large gantry systems where precision under heavy load is paramount. The C-938 Roller Bearing Bottom Mount Slide is a prime example of an American-made component engineered for this kind of demanding, high-load environment.

Plain Bearings (Bushings)

The simplest form of linear bearing, plain bearings, also known as bushings, operate on the principle of sliding friction. They have no rolling elements. Instead, they consist of a sleeve made from a specialized material with a low coefficient of friction.

• How They Work: A shaft slides directly within the sleeve. The performance depends entirely on the material properties of the sleeve and shaft, as well as the presence of lubrication.
• Materials: Common materials include bronze (often oil-impregnated), PTFE-lined metals, and advanced engineered polymers.
• Advantages: Simple, compact, and cost-effective. They are excellent at handling shock and vibration, are tolerant of contamination, and can operate without external lubrication in many cases (self-lubricating types).
• Limitations: Significantly higher friction than rolling-element bearings, leading to lower efficiency and speed limitations. They are also subject to "stick-slip" phenomena at low speeds and have a finite wear life.
• Typical Applications: High-impact machinery, agricultural equipment, construction vehicles, and applications in dirty or corrosive environments where the simplicity and durability of a plain bearing outweigh the need for low friction.

Linear Slides and Guide Rails

Often, linear bearings are integrated into pre-assembled systems known as linear slides or guide assemblies. These units combine the rail and one or more carriages into a ready-to-install package, saving significant design and assembly time.

• How They Work: The manufacturer has already handled the critical task of matching the carriage to the rail for optimal fit and preload. This ensures the specified performance metrics for accuracy and rigidity are met right out of the box.
• Advantages: Guaranteed performance, reduced engineering and assembly time, and simplified procurement. They come in a vast array of sizes and configurations to suit different needs.
• Typical Applications: These are used across nearly all industries. A robust, pre-assembled unit like the C-7000 Linear Bearing Bottom Mount Slide provides a reliable, U.S.-made solution for applications in automation, cabinetry, and industrial workstations where dependable, smooth motion is a core requirement.

Key Performance Metrics: How to Choose the Right Bearing

Selecting the correct linear bearing involves a careful analysis of the application's specific demands. Procurement managers and design engineers must consider several key performance metrics to ensure the chosen component will perform reliably over its expected service life.

Load Capacity (Static and Dynamic)

• Static Load Capacity (C₀): The maximum load a non-moving bearing can endure without causing permanent deformation of the rolling elements or raceways. This is critical for applications with high shock loads or where the bearing is stationary under a heavy weight.
• Dynamic Load Capacity (C): The constant load under which a bearing can operate for a defined travel distance (e.g., 1 million revolutions or 100 km) before the first signs of material fatigue appear. This is the most important metric for calculating the bearing's lifespan in a continuous-motion application.

Precision and Accuracy

This refers to the travel accuracy of the bearing system. It's typically measured as the maximum deviation in parallelism between the carriage and the rail over a given length of travel. For applications like metrology, semiconductor manufacturing, or high-precision machining, accuracy is the paramount concern.

Speed and Acceleration

Every bearing has a maximum rated speed and acceleration, beyond which performance degrades and wear accelerates. High-speed applications, such as pick-and-place robotics, require bearings designed with low-inertia components and advanced recirculation systems to handle rapid changes in direction without issue.

Rigidity and Deflection

Rigidity is a measure of a bearing's resistance to deformation under load. A more rigid bearing will deflect less, leading to higher positional accuracy of the machine. Roller bearings are inherently more rigid than ball bearings. Preload—an internal force applied to the bearing during assembly—can be used to increase rigidity but may also increase friction and reduce lifespan if not applied correctly.

Environmental Factors

The operating environment plays a huge role in bearing selection. Factors to consider include:

• Temperature: Extreme temperatures can affect lubricant viscosity, material dimensions, and the integrity of seals.
• Contamination: Dust, metal chips, moisture, and chemical exposure can rapidly destroy a bearing. Proper sealing and shielding are essential in dirty environments.
• Vibration and Shock: Applications with high impact require bearings with robust construction and good damping characteristics, often favoring plain bearings or heavy-duty roller guides.

The Maden.co Advantage: Sourcing American-Made Precision

In an era of unpredictable global supply chains, the ability to source critical components from verified domestic manufacturers is more than a preference—it's a strategic imperative. For a procurement manager under pressure to find a specific roller bearing slide, a design engineer needing material certifications for a new prototype, or an MRO buyer facing an unexpected equipment breakdown, the ability to quickly find and finance a verified, U.S.-made part is a game-changer. This is the core of our mission at Maden.co.

Our platform is built to democratize access to American manufacturing, connecting industrial buyers with over 2.5 million products from a network of more than 800 verified U.S. manufacturers. We believe that "America's manufacturing revival is here," and our business model is a testament to that conviction. You can learn more about our mission to champion this revival. By focusing exclusively on American-made products, we provide several tangible benefits that go beyond simple patriotism:

Supply Chain Transparency and Resilience: Sourcing domestically shortens lead times, reduces shipping complexities, and insulates your operations from international disruptions. You gain clarity and control over your supply chain.

Uncompromising Quality Standards: U.S. manufacturers are renowned for their adherence to strict quality control, material traceability, and industry standards (like DIN, NPT, and ANSI). When you source through our platform, you are partnering with manufacturers who embody Industrial Excellence.

Customer Empowerment: We empower buyers by providing detailed specifications, transparent sourcing, and direct access to a vast catalog of hard-to-find components. We reduce procurement friction and save you valuable time.

If you are a U.S. manufacturer producing high-quality industrial components, we invite you to join our growing network. Register as a vendor and become a part of the platform proving that American-made is the most accessible and reliable choice.

Conclusion: Building Resilient Systems with U.S. Manufacturing

Linear bearings are not mere commodities; they are precision-engineered components that form the bedrock of modern industrial machinery. Understanding how they work—from the fundamental principle of rolling friction to the nuances of load capacity, rigidity, and material science—is essential for building systems that are efficient, accurate, and durable. The right bearing, chosen with care and sourced from a reliable partner, can significantly enhance machine performance and reduce the total cost of ownership.

By prioritizing verified, U.S.-made components, you are doing more than just buying a part; you are investing in a more resilient supply chain, higher quality standards, and the revitalization of America's industrial base. At Maden.co, we are your strategic partner in this effort, providing the tools and access you need to build better, stronger, and more competitive operations.

Explore our extensive catalog of American-made linear motion components and discover how you can enhance the precision and reliability of your machinery. For capital-intensive projects or large-volume orders, you can apply for Instant Financing at checkout to manage your cash flow effectively and keep your projects moving forward. If you have specific sourcing questions or need help finding the right component, our team is ready to help. Please do not hesitate to contact us.

Frequently Asked Questions (FAQ)

What is the main difference between a ball bearing and a roller bearing linear slide?

The primary difference lies in the shape of the rolling element and how it contacts the raceway. Ball bearings use spheres that create a small "point" of contact, resulting in very low friction and high speed capabilities, but lower load capacity. Roller bearings use cylinders that create a "line" of contact, distributing the load over a larger area. This provides much higher load capacity and rigidity, making them ideal for heavy-duty applications, but with slightly more friction and lower speed limits.

How does lubrication affect the performance and lifespan of a linear bearing?

Lubrication is absolutely critical. It serves multiple functions: it reduces friction and wear between the rolling elements and raceways, it helps dissipate heat generated during operation, it prevents corrosion, and it helps to flush out contaminants. Using the correct type and amount of lubricant (grease or oil) and adhering to a proper re-lubrication schedule is the single most important maintenance task for maximizing the service life of a linear bearing.

What does "preload" mean in the context of linear bearings?

Preload is an internal force intentionally applied to a linear bearing system during its assembly to eliminate any internal clearance or "play" between the rolling elements and the raceways. A preloaded bearing exhibits higher rigidity, meaning it deflects less under load, which leads to greater positional accuracy. However, preload also increases friction and can reduce the bearing's calculated lifespan, so it must be specified carefully based on the application's need for rigidity versus speed and life.

Can I use a linear bearing without a rail?

No, a linear bearing is part of a system and is designed to work with a corresponding rail or shaft. The rail provides the precision-ground, hardened surface that the bearing's rolling elements move along. The exacting tolerances and material properties of both the bearing and the rail are what allow the system to achieve its rated accuracy, load capacity, and lifespan. Attempting to use a bearing on an unprepared or incorrect surface would lead to immediate failure.
