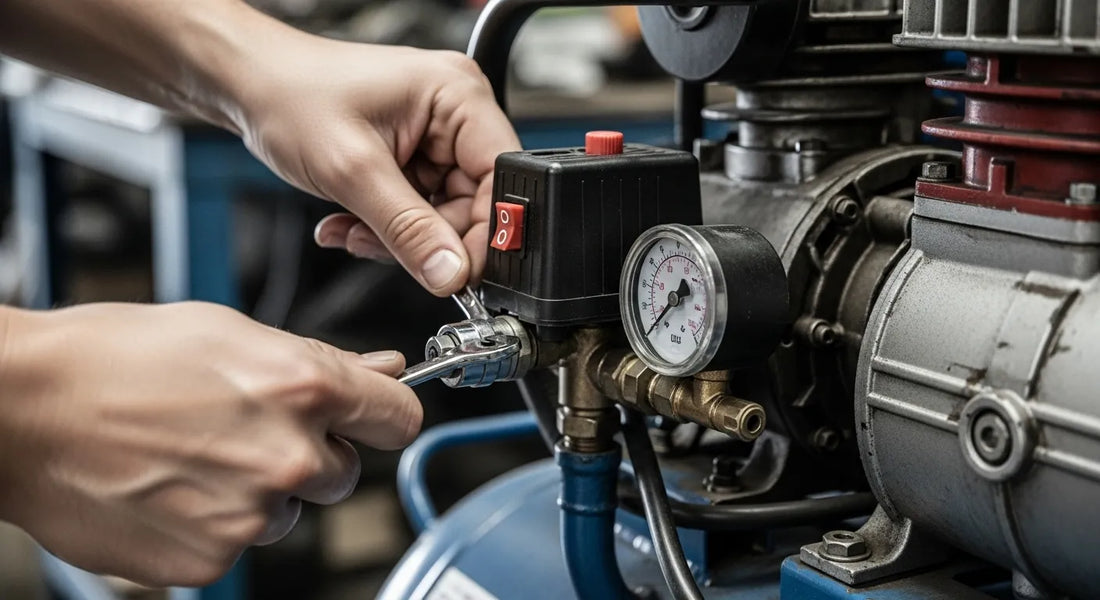

How to Adjust an Air Compressor Pressure Switch

Table of Contents

1. Introduction
2. Understanding the Role of the Pressure Switch
3. Why and When to Adjust Your Pressure Switch
4. Safety First: The Pre-Adjustment Checklist
5. The Step-by-Step Guide to Adjusting a Pressure Switch
6. Critical Limitations: What You Must Not Do
7. Conclusion: Empowering Your Operations Through Precision Control
8. Frequently Asked Questions (FAQ)

Introduction

An MRO manager gets a frantic call: the pneumatic assembly line is down. A design engineer watches a prototype test fail because the air-powered actuator isn't getting consistent force. A small business owner hears their shop compressor kicking on and off every thirty seconds, driving up the electricity bill and signaling impending failure. What do these scenarios have in common? They can all stem from a single, often-overlooked component: a misadjusted air compressor pressure switch. This small, electromechanical device is the brain of your compressor, and when it's not set correctly, it can cause operational chaos, costly downtime, and unnecessary wear on critical equipment.

This article is not just a technical manual; it's a strategic guide for procurement managers, facility operators, and engineers who understand that operational efficiency is built on a foundation of well-maintained equipment. We will move beyond the basics to provide a comprehensive, step-by-step process for safely and accurately adjusting your air compressor's pressure switch. We'll explore the underlying principles of its operation, outline the critical safety precautions, and provide practical troubleshooting tips. For businesses that rely on American-made reliability, understanding how to maintain this core component is essential for maximizing the Total Cost of Ownership (TCO) of your compressed air system and ensuring your operations run smoothly.

Understanding the Role of the Pressure Switch

Before you can adjust a pressure switch, you must understand its function. The pressure switch is the primary control that governs your compressor's operating cycle. It’s a simple yet brilliant device that uses air pressure to actuate an electrical switch, turning the compressor's motor on and off to maintain a specific pressure range within the air tank. This prevents the compressor from running continuously, which would waste energy and lead to catastrophic failure, and ensures that you have pressurized air ready when you need it.

At Maden.co, we believe in empowering our customers with knowledge, reflecting our core value of Customer Empowerment. Understanding your equipment is the first step toward building a more resilient and efficient supply chain.

Key Terminology Decoded

To adjust the switch correctly, you must be fluent in its language. There are two critical pressure settings and one key relationship between them:

• Cut-In Pressure: This is the lower pressure threshold. When the air pressure in the tank drops to this pre-set level, the pressure switch closes an electrical circuit, sending power to the motor and starting the compression cycle.
• Cut-Out Pressure: This is the upper pressure threshold. Once the air pressure in the tank reaches this level, the switch opens the circuit, cutting power to the motor and stopping the compressor. This is the maximum pressure your system will reach during a normal cycle.
• Pressure Differential (or Differential): This is simply the difference in PSI (pounds per square inch) between the cut-out and cut-in pressures. For example, if your cut-out pressure is 125 PSI and your cut-in pressure is 95 PSI, your differential is 30 PSI. A wider differential means the compressor will run for longer periods but will cycle on and off less frequently. A narrower differential results in more frequent, shorter cycles.

Inside the Switch: The Core Components

While designs vary slightly between manufacturers, most pressure switches contain four key components that work in concert:

1. Diaphragm: A flexible membrane that moves in response to the air pressure from the tank. This physical movement is what initiates the switching action.
2. Springs: These provide resistance against the diaphragm. The tension on these springs is what you are actually adjusting. Typically, there is a main, larger spring that controls the overall pressure range and a smaller, secondary spring that fine-tunes the differential.
3. Electrical Contacts: These are the points that physically open and close to make or break the electrical circuit to the motor. Over time, these can become worn or pitted, which is a common point of failure.
4. Unloader Valve: This is a crucial but often misunderstood part. When the compressor reaches its cut-out pressure and shuts off, the unloader valve briefly opens to release the trapped, high-pressure air from the line between the compressor pump and the tank's check valve. This depressurizes the pump head, making it significantly easier for the motor to restart on the next cycle. A hissing sound for a second or two after the compressor shuts off is the normal sound of this valve operating.

Why and When to Adjust Your Pressure Switch

Adjusting a pressure switch isn't a routine maintenance task performed on a set schedule. It’s a specific tuning procedure performed for distinct operational reasons. Understanding why you're making an adjustment is as important as knowing how.

Matching Pressure to Application Needs

The most common reason for adjustment is to align the compressor's output with the requirements of the pneumatic tools or equipment it powers.

• Under-Pressurization: If your impact wrench feels sluggish or your paint sprayer is sputtering, it might be because the cut-in pressure is set too low, causing a significant pressure drop before the compressor kicks in to replenish the tank.
• Over-Pressurization: Conversely, running tools at a pressure higher than their recommended operating range can cause premature wear and tear or even create a safety hazard. There is no benefit to running a system at 150 PSI if your tools only require 90 PSI. It wastes energy and accelerates component fatigue.

Optimizing Duty Cycle and Energy Consumption

The pressure differential directly impacts how often your compressor cycles. For an MRO buyer or a facility manager focused on energy efficiency and equipment longevity, this is a critical tuning point.

• Short-Cycling: A differential that is too narrow will cause the compressor to turn on and off frequently. This "short-cycling" leads to increased wear on the motor's starter, contacts, and windings, and it is highly inefficient from an energy standpoint. The motor draws a large inrush current every time it starts, so minimizing start-ups saves electricity.
• Excessively Long Runs: A differential that is too wide might mean that the pressure drops too low for some applications before the compressor begins to recharge the tank. Finding the right balance is key.

Accommodating System Changes or Component Replacement

If you install a new, higher-pressure-rated tank, add a secondary air tank to your system, or replace a faulty switch with a new one, you will almost certainly need to adjust and calibrate the pressure settings to match the new system parameters. For mission-critical operations, starting with a robust, American-made compressor can prevent many of these headaches. A unit like the FS-Curtis CA-Series 15 HP Simplex Reciprocating Air Compressor is built for demanding industrial environments where reliability is non-negotiable.

Safety First: The Pre-Adjustment Checklist

This is the most important section of this guide. Working with a system that combines high-pressure air and electricity is inherently dangerous. Failure to follow proper safety procedures can result in severe injury or death. Do not proceed until you have completed every step on this checklist.

Absolute Safety Mandate: Never attempt to adjust a pressure switch while the compressor is powered on or while the tank is pressurized.

• Disconnect All Power: Do not just turn the switch off. Unplug the compressor from the wall outlet. For hardwired units, go to the electrical panel and turn off the corresponding circuit breaker. Use a lockout/tagout device if one is available to ensure no one can inadvertently restore power while you are working.
• Completely Drain the Air Tank: Open the drain valve at the bottom of the tank and let all the compressed air escape. Watch the pressure gauge on the tank and wait until it reads zero. Do not trust a gauge that you suspect is faulty; ensure all pressure is audibly gone.
• Wear Personal Protective Equipment (PPE): At a minimum, wear ANSI-rated safety glasses to protect your eyes from debris or a sudden, unexpected release of pressure.
• Work in a Clean, Dry, Well-Lit Area: Ensure you have stable footing and enough light to clearly see the small components inside the pressure switch.
• Gather the Correct Tools: You will typically need a flat-head screwdriver and a nut driver or wrench that fits the adjustment nuts on the switch. Using the wrong tool can strip the adjustment screws, making further tuning impossible.

The Step-by-Step Guide to Adjusting a Pressure Switch

With all safety precautions in place, you are ready to begin the adjustment process. Remember to work slowly and methodically.

Step 1: Locate and Access the Pressure Switch

The pressure switch is typically a small, box-like component mounted on or near the air tank. It will have an electrical conduit running to it and a small tube connecting it to the tank or pump head to sense the pressure. Most switches are protected by a plastic or metal cover, usually held in place by a single screw on the side or top. Carefully remove this screw and lift the cover off to expose the internal components.

Step 2: Identify the Adjustment Nuts/Screws

Inside, you will see the springs and contacts. Your focus is on the adjustment nuts located on top of the springs. Nearly all pressure switches use a two-spring system:

• The Main/Range Adjustment Nut: This is on the larger, central spring. Turning this nut adjusts the cut-in and cut-out pressures simultaneously and by the same amount. It effectively shifts the entire pressure range up or down.
  • Clockwise: Increases both cut-in and cut-out pressure.
  • Counter-Clockwise: Decreases both cut-in and cut-out pressure.
• The Differential Adjustment Nut: This is on the smaller, secondary spring. This nut only adjusts the cut-in pressure by changing the width of the pressure differential.
  • Clockwise: Widens the differential, which lowers the cut-in pressure without affecting the cut-out pressure.
  • Counter-Clockwise: Narrows the differential, which raises the cut-in pressure without affecting the cut-out pressure.

This second point is often the most confusing. Think of it this way: tightening the differential spring (clockwise) makes it harder for the switch to turn back on, requiring the pressure to drop further.

Step 3: Making the Initial Adjustment (Setting the Cut-Out)

Always start by setting your desired cut-out pressure first. Make small, incremental adjustments. A good rule of thumb is to start with a half-turn of the main adjustment nut in the desired direction.

1. Turn the main adjustment nut (e.g., a half-turn clockwise to increase the maximum pressure).
2. Carefully replace the cover (do not screw it back on yet, just set it in place to protect the contacts).
3. Move away from the compressor, restore power, and turn it on.
4. Allow the compressor to run through a full cycle. Carefully watch the tank pressure gauge and note the exact pressure at which the motor shuts off. This is your new cut-out pressure.
5. Crucially, repeat the full safety shutdown procedure: Disconnect power and fully drain the tank before making another adjustment.
6. Repeat this process until the cut-out pressure is at your desired level.

Step 4: Fine-Tuning the Differential (Setting the Cut-In)

Once your cut-out pressure is set, you can adjust the cut-in pressure using the smaller differential nut.

1. With the power off and the tank empty, turn the differential adjustment nut. To raise the cut-in pressure (narrowing the differential), turn it counter-clockwise. To lower the cut-in pressure (widening the differential), turn it clockwise. Again, start with a small, half-turn adjustment.
2. Follow the same testing procedure: replace the cover, restore power, and let the compressor run through a full cycle. This time, watch the gauge to see at what pressure the motor turns on. This is your new cut-in pressure.
3. Repeat the safety shutdown and adjustment process until your cut-in pressure is where you want it.

Step 5: Final Testing and Verification

Once you are satisfied with both the cut-in and cut-out pressures, let the compressor run through at least three to five full cycles.

• Confirm that the cut-in and cut-out points are consistent.
• Listen for the distinct hiss of the unloader valve for a second or two after each shutdown.
• Check for any air leaks around the switch or its fittings.
• Once you are confident the settings are stable, perform the final safety shutdown, securely fasten the switch cover, and restore power.

For operations where air quality is paramount, such as in finishing or electronics assembly, ensuring your entire system is optimized is key. A unit like the Campbell Hausfeld 31.2 Ft³/Min Moisture-Free Air Compressor integrates drying capabilities, but its performance still relies on a correctly calibrated pressure switch to function efficiently.

Critical Limitations: What You Must Not Do

Adjusting a pressure switch gives you control, but that control comes with responsibilities and limitations. Ignoring them is not just inefficient; it's extremely dangerous.

Never Exceed the Maximum Pressure Rating

Every component in a compressed air system has a maximum pressure rating. The lowest-rated component determines the maximum allowable working pressure (MAWP) for the entire system. This is most often the air tank itself.

Warning: The maximum pressure rating is stamped onto a metal nameplate on the air tank. NEVER set the cut-out pressure higher than this number. Exceeding the tank's rating can lead to a catastrophic rupture, releasing a deadly amount of force.

Our commitment to Industrial Excellence means advocating for safe practices. We connect buyers with verified U.S. manufacturers who adhere to strict safety and quality standards. Our entire business model is built on this principle; you can learn more about our mission to champion American manufacturing here.

Understand the Impact on Your Motor and Pump

Increasing the pressure setting forces the motor and pump to work harder. While a small increase is often acceptable, a significant one can push the components beyond their designed capabilities. This can lead to overheating, excessive wear, and a dramatically shortened lifespan for your compressor. If you consistently need higher pressure than your compressor can comfortably provide, it's a sign that you need a more powerful machine, not that you should push your current one past its limits.

Know When to Replace, Not Adjust

A pressure switch is a mechanical device with a finite lifespan. If you observe any of the following symptoms, the switch is likely failing and should be replaced immediately:

• Erratic Behavior: The compressor cycles unpredictably or fails to hold a consistent cut-in/cut-out point.
• Contact Arcing: You see visible sparks inside the switch when it operates.
• Constant Hissing: If the unloader valve leaks continuously while the compressor is running, it's faulty.
• Failure to Start or Stop: The contacts may be welded shut (won't stop) or too corroded to make a connection (won't start).

Finding a high-quality, American-made replacement part is crucial for restoring reliability. We are dedicated to democratizing access to these components. Are you a U.S. manufacturer of industrial parts? Register as a vendor and join the American manufacturing revival.

Conclusion: Empowering Your Operations Through Precision Control

Mastering how to adjust your air compressor pressure switch transforms it from a "black box" into a tunable instrument for operational excellence. It's a skill that empowers you to optimize tool performance, reduce energy consumption, and extend the life of your valuable equipment. By following a methodical process rooted in safety, you can ensure your compressed air system is perfectly matched to your business's needs.

This dedication to precision, reliability, and domestic capability is the driving force behind Maden.co. For the small workshop owner needing a dependable workhorse like the FS-Curtis CA-Series 5 HP Simplex Reciprocating Air Compressor, or the large-scale industrial facility requiring a certified, U.S.-made component, our platform eliminates procurement friction. We connect you directly with over 800 verified U.S. manufacturers and more than 2.5 million American-made products. Explore our catalog to find the exact compressor, part, or component your operation needs. And when you're ready to invest in American-made quality, you can apply for Instant Financing at checkout to streamline your capital-intensive projects and manage your cash flow effectively.

Frequently Asked Questions (FAQ)

1. Can I increase my compressor's PSI indefinitely by adjusting the pressure switch?

No, and it is extremely dangerous to try. You must never set the cut-out pressure higher than the maximum allowable working pressure (MAWP) stamped on the compressor's tank. Doing so can cause the tank to rupture, which can result in serious injury or death. Always operate within the manufacturer's specified limits.

2. What is the difference between the range and differential screws on the switch?

The range screw/nut (on the larger spring) adjusts the entire operating pressure range up or down, affecting both the cut-in and cut-out pressures together. The differential screw/nut (on the smaller spring) adjusts only the cut-in pressure, thereby changing the gap, or differential, between the cut-in and cut-out points. Always set the cut-out pressure first with the range screw, then fine-tune the cut-in pressure with the differential screw.

3. My compressor leaks air from the pressure switch area after it shuts off. What's wrong?

A continuous leak after shutdown (not to be confused with the short, 1-2 second hiss of the unloader valve) typically points to a faulty check valve. The check valve is supposed to prevent air from the tank from flowing backward into the compressor pump. When it fails, this backflow of air escapes through the unloader valve on the pressure switch. You will likely need to replace the check valve, not the pressure switch.

4. How do I know if my pressure switch is bad and needs to be replaced?

Common signs of a failing pressure switch include: the compressor not turning on or off at all, erratic or inconsistent cut-in/cut-out points, visible electrical arcing inside the switch cover, or physical damage like cracks or melted plastic. If you've tried adjusting it and the behavior remains unpredictable, it's safest to replace the switch. If you have specific sourcing questions about finding the right replacement, our team is ready to help.
