Introduction

A sudden hiss, a drop in tool performance, and an entire production line grinds to a halt. For an MRO buyer or a plant manager, this isn't a minor inconvenience; it's a direct hit to productivity and the bottom line. The culprit is often something seemingly simple: a faulty connection between an air compressor and its hose. This single point of failure can cost hours of downtime, yet mastering the process is one of the most fundamental and critical skills in any industrial, commercial, or workshop setting. The integrity of this connection dictates the efficiency, safety, and reliability of every pneumatic tool in your operation.

This article moves beyond a basic tutorial. We will provide a comprehensive, detailed breakdown of how to properly and safely connect an air hose to a compressor, tailored for the professionals who rely on pneumatic power to keep American industry moving. We'll explore the anatomy of the components involved, from compressor outlets to the nuances of various fittings. We will detail a step-by-step process that emphasizes safety and leak prevention, troubleshoot common issues that cause costly interruptions, and discuss advanced considerations for high-demand industrial environments. Our goal is to empower you with the technical knowledge to not only make a secure connection but to understand why each step is critical for maintaining operational excellence and a resilient supply chain. At Maden.co, we believe that building a stronger American manufacturing sector starts with mastering these essential details, powered by reliable, domestically sourced components.

The Anatomy of the Pneumatic Connection

Before a single wrench is turned, understanding the components involved is paramount. A secure, efficient pneumatic system is more than just a compressor and a hose; it's an ecosystem of precisely engineered parts working in concert. For procurement managers and engineers, specifying the right components is the first step toward a reliable operation.

The Compressor Outlet Assembly

The journey of compressed air begins at the compressor's tank outlet. This isn't just a simple valve; it's a control center for the air that will power your tools.

  • The Tank Pressure Gauge: This gauge displays the raw pressure inside the compressor tank. This is the maximum pressure your system holds before regulation.
  • The Regulator: This is arguably the most critical component for tool performance and safety. The regulator is a knob or T-handle that allows you to dial down the high tank pressure to the specific Pounds per Square Inch (PSI) required by your air tool. Running a tool above its recommended PSI can lead to premature failure and create a serious safety hazard.
  • The Regulated Pressure Gauge: Positioned after the regulator, this gauge shows the actual pressure being delivered to the hose and tool. This is the number you will constantly reference and adjust for different applications.
  • The Outlet Port: This is the physical connection point. On virtually all compressors sold in the United States, this will be a female-threaded port featuring National Pipe Taper (NPT) threads. The size can vary, but 1/4-inch NPT is the most common for smaller consumer and contractor units, while 3/8-inch, 1/2-inch, or larger ports are standard on industrial machines like the robust, American-made Campbell Hausfeld 124.8 CFM Three-Phase Duplex Air Compressor, which is designed for continuous, multi-tool use in demanding factory environments.

The Air Hose: The Lifeline of Your System

The air hose is the conduit that delivers the potential energy stored in the compressor to the kinetic energy of the tool. Its material, diameter, and length have a significant impact on performance.

  • Materials: Hoses are typically made from PVC, rubber, or hybrid polymers. PVC is lightweight and inexpensive but becomes stiff in cold weather. Rubber is heavier and more expensive but remains flexible in all temperatures and is more resistant to abrasion. Hybrid hoses offer a compromise, blending flexibility and durability.
  • Diameter: The inner diameter (ID) of the hose is crucial for air volume, measured in Cubic Feet per Minute (CFM). A 1/4-inch ID hose is sufficient for low-demand tools like nailers, but high-demand tools like grinders or impact wrenches require a 3/8-inch or 1/2-inch ID hose to prevent "air starvation" and a drop in performance.
  • Length: Longer hoses introduce more friction, which causes a pressure drop. While a 100-foot hose offers great range, the pressure at the tool will be noticeably lower than with a 25-foot hose. For stationary workbenches, using shorter hoses is always more efficient.

The Critical Connectors: Plugs and Couplers

These small but mighty components are the heart of the quick-connect system. Using mismatched or low-quality fittings is the number one cause of leaks and connection failures.

  • The Coupler (Female Fitting): This is the socket-like part that contains the locking mechanism. It has a retractable collar. When you pull the collar back, it allows the male plug to be inserted. Releasing the collar locks the plug in place and opens the internal valve to allow airflow. The coupler is typically attached to the "supply" side—the compressor or the end of the air hose connected to the compressor.
  • The Plug (Male Fitting): This is the simpler male end that inserts into the coupler. Plugs are attached to the "demand" side—the air tools themselves or the end of a hose that connects to a tool.

The most critical detail about plugs and couplers is that they come in several distinct, non-interchangeable styles. While they may look similar, their internal dimensions are different. Attempting to mix styles will result in a poor seal, a major leak, or an inability to connect at all. The most common styles in the U.S. are:

  • Industrial (I/M) Style: Also known as Milton "M" style, this is the most prevalent type in North America. It is characterized by a flat-bottomed groove on the male plug.
  • Automotive (T/F) Style: Also known as Tru-Flate or "T" style, this is common in automotive shops. The plug has a V-shaped groove.
  • ARO (F) Style: Also known as ARO 210 or "F" style, this type is common in industrial settings and features a wider plug body.

Pro Tip: Standardize your entire operation on a single fitting style. This eliminates confusion, prevents accidental mismatches, and streamlines tool changes, saving valuable time and reducing procurement friction.

A Step-by-Step Guide to a Perfect Connection

With a clear understanding of the components, we can proceed with the connection process. This method prioritizes safety and the creation of a leak-free seal, which is essential for maximizing efficiency and reducing energy waste from your compressor.

Step 1: Prioritize Safety Above All

Before starting, always ensure the compressor is turned off and the tank is completely depressurized. Open the drain valve at the bottom of the tank to release all stored air. Never attempt to attach or remove fittings from a pressurized system. Always wear safety glasses, as debris or a sudden release of pressure can cause serious eye injury.

Step 2: Prepare the Threads for a Leak-Proof Seal

NPT threads are tapered, designed to wedge together to form a mechanical seal. However, to ensure a truly airtight connection, a thread sealant is mandatory.

  • PTFE Tape (Teflon Tape): This is the most common sealant. The key is to apply it correctly.
    1. Hold the male fitting with the threads facing you.
    2. Place the end of the tape on the second thread from the end.
    3. Wrap the tape clockwise around the threads. This is crucial; wrapping counter-clockwise will cause the tape to unravel as you tighten the fitting.
    4. Apply 3-4 wraps, keeping the tape flat and pulling it taut so it conforms to the thread profile.
    5. Ensure the tape does not overhang the end of the fitting, as pieces can break off and clog downstream components.
  • Pipe Dope (Pipe Sealant Compound): This is a paste-like sealant. It can be more effective than tape in some situations, especially on larger diameter pipes or slightly damaged threads. Apply a thin, even coat to the male threads, avoiding the first thread to prevent internal contamination.

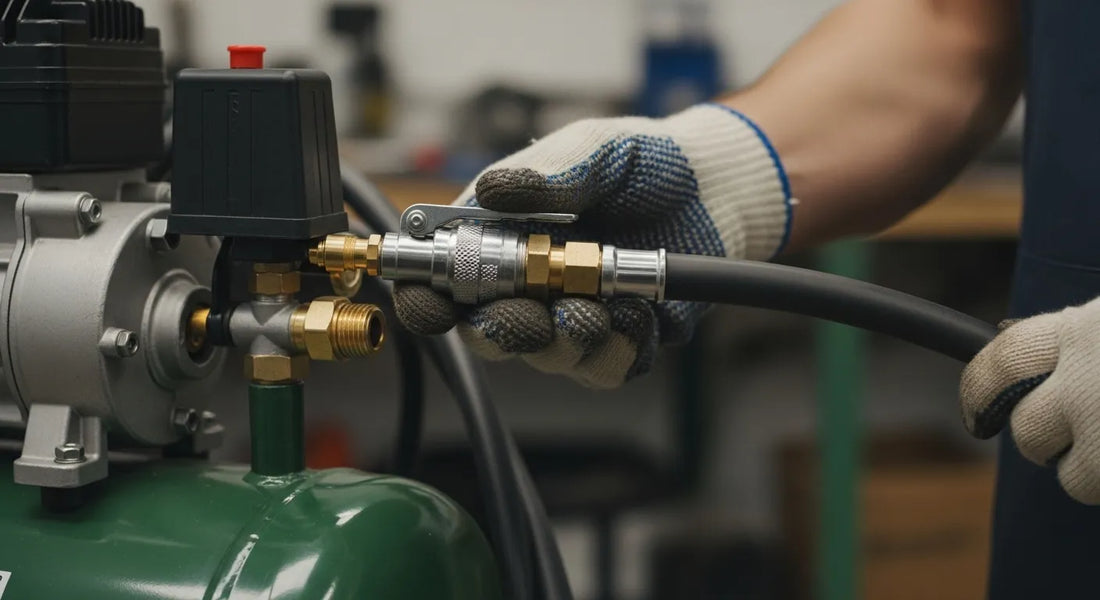

Step 3: Attach the Coupler to the Compressor

Now you will connect the female coupler to the regulated outlet port on your compressor.

  1. Apply PTFE tape or pipe dope to the male threads of a connector piece that will thread into your coupler. Often, this is a male-to-male hex nipple.
  2. Thread the prepared male fitting into the female outlet port on the compressor's regulator. Hand-tighten it first.
  3. Using two wrenches—one to hold the regulator body steady (the "backup wrench") and one to turn the fitting—tighten the connection an additional 1.5 to 2 turns past hand-tight. Do not overtighten, as this can crack the regulator housing. The backup wrench prevents a rotational force from being applied to the delicate regulator and gauge assembly.
  4. Attach your female quick-connect coupler to the other end of the hex nipple, again using PTFE tape and the two-wrench method.

Step 4: Prepare Your Hoses and Tools

Every air tool and every end of every air hose needs a male plug. This standardization allows any tool to be quickly connected to any hose.

  1. Select the male plug that matches the style of the coupler you installed on the compressor (e.g., Industrial style).
  2. Apply PTFE tape to the male threads of the plug, wrapping clockwise.
  3. Thread the plug into the female inlet of your air tool.
  4. Use a wrench to tighten the plug securely.
  5. Repeat this process for the end of your air hose that will connect to the tool. The other end of the hose will receive a female coupler to connect to the compressor.

Step 5: Making the Final Connection and Checking for Leaks

You are now ready to connect the system.

  1. Connect the female coupler on your air hose to the male plug you installed on the tool. Pull back the coupler's collar, insert the plug until it clicks into place, and release the collar. Give it a gentle tug to ensure it's locked.
  2. Connect the other end of the air hose to the female coupler on the compressor using the same method.
  3. Close the tank's drain valve. Turn on the compressor and let it build to its full pressure.
  4. Adjust the regulator to your desired operating pressure (e.g., 90 PSI).
  5. Listen carefully for any audible hissing sounds at all connection points.
  6. For a more thorough check, mix some dish soap and water in a spray bottle and spray each threaded connection. If bubbles form, you have a leak. Depressurize the system and re-apply your thread sealant, ensuring the connection is sufficiently tight.

Advanced Considerations for Professional Environments

For MRO managers and engineers, a simple connection is just the start. Optimizing a pneumatic system for an industrial setting involves a deeper level of strategic thinking that impacts efficiency, safety, and the bottom line. Our mission at Maden.co is to empower this strategic approach by democratizing access to high-quality, American-made industrial components. You can learn more about our mission to champion American manufacturing and build a more resilient domestic supply chain here.

Matching Components to Compressor Capability

The power of a compressor is measured not just in PSI, but in CFM—the volume of air it can deliver. A high-output machine like the Campbell Hausfeld 36 CFM Rotary Screw Air Compressor, designed for continuous-duty industrial applications, produces a massive volume of air. Connecting this powerhouse with a standard 1/4-inch hose and fittings would be like trying to drain a swimming pool through a drinking straw. The restrictions would choke the airflow, starving your tools and rendering the compressor's power useless.

For such systems, it is critical to use:

  • High-Flow Fittings: These have a larger internal diameter than standard fittings, significantly reducing pressure drop and allowing maximum CFM to reach the tool.
  • Larger Diameter Hoses: A minimum of 3/8-inch or, more commonly, 1/2-inch ID hoses are required to carry the necessary air volume without significant friction loss.

For a procurement manager under pressure to source compatible, high-CFM components for a new production line, or a design engineer specifying the pneumatic system for an automated process, having access to a verified catalog of U.S.-made parts is a game-changer. It ensures compliance with standards and eliminates the supply chain risks associated with unvetted overseas suppliers.

Portability and Durability in Field Operations

Not all work happens on a clean factory floor. For construction crews, mobile mechanics, and agricultural operations, pneumatic power needs to be portable. This is where a gas-powered unit like the American-made FS-Curtis CA-Series 13HP Gas Driven Reciprocating Air Compressor becomes indispensable.

However, field operations introduce new challenges for hose connections:

  • Contamination: Dirt, dust, and moisture can easily enter an open coupler, causing internal damage and contaminating air tools. Using dust caps on couplers and plugs is a simple but effective preventative measure.
  • Physical Stress: Hoses are dragged over abrasive surfaces and fittings are subjected to impacts. Investing in high-quality, durable rubber hoses and brass or hardened steel fittings reduces the frequency of replacements and prevents costly downtime on the job site. Sourcing these durable components from our network of verified U.S. manufacturers provides confidence that the parts will withstand the rigors of field use.

Troubleshooting Common Connection Problems

Even with a perfect setup, issues can arise. Knowing how to quickly diagnose and fix them is key to maintaining productivity.

  • Problem: A constant, audible hiss from a connection.
    • Cause: This is almost always a leak at a threaded joint or a worn-out seal inside the female coupler.
    • Solution: Depressurize the system. Use the soapy water method to pinpoint the exact source. If it's a threaded joint, disassemble, clean the threads, and re-apply PTFE tape or sealant correctly. If the leak is from the coupler's collar or where the plug inserts, the internal O-rings are likely worn. It's often more efficient to replace the entire coupler than to attempt a rebuild.
  • Problem: The coupler and plug won't connect or are extremely difficult to engage.
    • Cause 1: Mismatched fitting styles (e.g., trying to connect an Industrial plug to an Automotive coupler). This is the most common reason.
    • Cause 2: Debris or dirt lodged inside the coupler's locking mechanism.
    • Solution: First, verify that both fittings are of the exact same style. If they are, depressurize the hose and use a small pick or a blast of air from another line to carefully clean out the inside of the female coupler.
  • Problem: The air tool seems underpowered or sluggish.
    • Cause 1: The regulator is set too low. This is the first thing to check.
    • Cause 2: The hose is too long or its diameter is too small for the tool's CFM requirements, causing a significant pressure drop.
    • Cause 3: A kink or obstruction in the air hose.
    • Solution: Check the regulator first. If the pressure is correct, try a shorter and/or larger diameter hose. Fully inspect the hose for any kinks or signs of internal collapse.

The Maden.co Advantage: Building a Better Supply Chain

Mastering the physical connection of an air hose is a vital skill, but for American businesses, the real challenge often lies in sourcing the high-quality components needed to build a reliable system. This is where we come in. Maden.co is more than a marketplace; we are a strategic partner dedicated to strengthening American manufacturing. Our platform connects industrial buyers directly with over 2.5 million products from a network of more than 800 verified U.S. manufacturers.

We believe that sourcing domestically is not just about patriotism; it's a strategic business decision that leads to:

  • Improved Total Cost of Ownership (TCO): Higher quality, domestically made fittings, hoses, and compressors last longer, require fewer replacements, and reduce downtime, lowering the overall cost over the product's lifecycle.
  • Enhanced Supply Chain Resilience: A domestic supply chain is less vulnerable to international shipping delays, tariffs, and geopolitical disruptions, ensuring you get the parts you need when you need them.
  • Unwavering Quality and Compliance: Our verified manufacturers adhere to strict U.S. standards, ensuring every component meets critical specifications for safety and performance.

Are you a U.S. manufacturer producing the high-quality industrial components that power our nation? Register as a vendor and join the American manufacturing revival. If you have specific sourcing questions or need help finding a particular component for your pneumatic system, our team is ready to help. Please don't hesitate to contact us.

Conclusion

Connecting an air hose to a compressor is a process where precision and attention to detail pay significant dividends. By understanding the function of each component, following a safety-first installation process, and using the correct thread sealing techniques, you can create a robust, leak-free system that maximizes the performance of your pneumatic tools and minimizes energy waste. For professional operations, the strategy extends to sourcing high-quality, application-appropriate components that can withstand the rigors of industrial use.

Building a reliable pneumatic system is a direct investment in your operational efficiency. We invite you to explore the vast catalog on Maden.co, where you can find the American-made compressors, hoses, and fittings you need to build with confidence. To help you manage your procurement budget and invest in the quality your business deserves, you can apply for Instant Financing at checkout to streamline your capital-intensive projects and secure the tools for success.

Frequently Asked Questions

1. Can I mix and match different styles of air fittings, like Industrial and ARO? No, you should never mix different styles of air fittings. While they might look similar, their internal dimensions are different, and they are not designed to be compatible. Attempting to connect mismatched styles will result in a poor or non-existent seal, leading to significant air leaks or the inability to connect at all. For maximum efficiency and safety, standardize all fittings in your workshop or facility to a single style.

2. Why is it so important to wrap PTFE tape clockwise on male threads? You must wrap PTFE tape clockwise (as viewed from the end of the fitting) because that is the same direction you will turn the male fitting to tighten it into the female port. This motion tightens the tape into the threads, creating a perfect seal. If you wrap it counter-clockwise, the friction from tightening the fitting will cause the tape to bunch up, unravel, and fail to create a proper seal.

3. What is the difference between a quick-connect coupler and a plug? The coupler is the female part of the connection, typically found on the air supply side (the compressor or the end of the hose). It contains a retractable collar and an internal valve that stops the airflow when disconnected. The plug is the simpler male part, which is inserted into the coupler. It is attached to the air tool or the "use" end of an extension hose. When the plug is inserted into the coupler, it opens the valve and allows air to flow.

4. How often should I inspect and replace my air hoses and fittings? Regular inspection is crucial for safety and performance. Visually inspect air hoses daily for cracks, bulges, or signs of abrasion. Fittings should be checked regularly for wear, corrosion, or damage to the locking mechanism. There is no set replacement schedule, as it depends on usage and environment. However, in a demanding industrial setting, it's good practice to replace worn hoses proactively and swap out couplers and plugs at the first sign of leaking or connection difficulty.
