Introduction

An improperly installed wedge anchor, a component that often costs only a few dollars, can be the single point of failure that leads to catastrophic equipment damage, operational downtime, and significant safety hazards. The entire structural integrity of a heavy-duty machine guard, a pallet rack, or critical support column can rest on the frictional force generated by this small but mighty piece of hardware. Its performance is not just a matter of the anchor's quality, but a direct result of the precision and care taken during its installation. For procurement managers, MRO buyers, and design engineers, understanding this process is not just a technical exercise; it's a fundamental aspect of risk management and operational excellence.

This article provides a definitive, step-by-step guide for installing wedge anchors correctly, ensuring the safety, compliance, and long-term reliability your facility demands. We will move beyond a simple checklist to explore the critical "why" behind each step—from selecting the right American-made anchor and preparing the concrete to applying the precise torque that ensures maximum holding power. Our goal is to empower you with the knowledge to eliminate installation errors, enhance workplace safety, and strengthen your operational infrastructure. By mastering the proper installation of high-quality, U.S.-sourced wedge anchors from a trusted marketplace like Maden.co, you are making a direct investment in the resilience and integrity of your American enterprise.

What is a Wedge Anchor? A Foundation of Strength

Before diving into the installation process, it's crucial to understand the design and mechanics of a wedge anchor. Often referred to as an expansion anchor or a stud anchor, it is a heavy-duty, non-bottom bearing, torque-controlled anchor designed exclusively for use in solid concrete. It is one of the most common and reliable fasteners used in industrial and commercial construction for good reason: its simplicity belies an incredibly strong and permanent connection.

Core Components

A typical wedge anchor consists of four primary parts, each playing a critical role in its function:

1. Threaded Stud Body: This is the main shaft of the anchor, threaded at the top to accept a nut and washer. The bottom of the stud is tapered or "conical."
2. Expansion Clip: A single-piece, wrap-around clip located at the bottom of the stud. This clip sits around the conical section.
3. Nut: A standard hex nut that, when tightened, creates the anchoring action.
4. Washer: A flat washer that distributes the load from the nut across the surface of the object being fastened.

The Mechanical Principle: Frictional Force

The genius of the wedge anchor lies in its powerful expansion mechanism. When you tighten the nut on the top of the anchor, you are pulling the threaded stud body upward. This action forces the conical end of the stud up into the expansion clip. As the cone moves, it forces the clip to expand outwards, pressing it with immense force against the interior walls of the hole drilled in the concrete. This creates a powerful and permanent frictional hold, securing the anchor firmly in place. Unlike other anchor types, it does not rely on adhesives or interlocking with the bottom of the hole; its strength comes purely from this 360-degree radial pressure.

Common Materials and Their Applications

Choosing the right material is just as important as the installation itself. The operational environment dictates the best choice for longevity and safety.

• Zinc-Plated Carbon Steel: This is the most common and cost-effective option, suitable for dry, indoor applications where moisture and corrosive elements are not a concern.
• Hot-Dipped Galvanized Carbon Steel: For applications with some moisture exposure or outdoor use in non-coastal areas, the thick, protective zinc coating of a hot-dipped galvanized anchor provides a significant level of corrosion resistance.
• 304 Stainless Steel: This material is ideal for wet environments, wash-down areas in food processing plants, and outdoor applications where enhanced corrosion resistance is necessary.
• 316 Stainless Steel: Offering the highest level of corrosion resistance, 316 stainless steel is the premier choice for use in chemical plants, wastewater treatment facilities, and coastal areas where exposure to salt and other harsh chemicals is constant.

At Maden.co, our mission is to democratize access to the full spectrum of American manufacturing. This means providing industrial buyers with easy access to over 2.5 million products, including wedge anchors in every material and specification, sourced directly from our network of over 800 verified U.S. manufacturers. You can learn more about our commitment to rebuilding America's industrial base and our core values of Supply Chain Transparency and Industrial Excellence by exploring our mission.

Pre-Installation Checklist: Preparing for a Perfect Set

Success in anchoring is determined before you even pick up a drill. Thorough preparation ensures a safe, efficient, and effective installation. Rushing this stage is the most common source of failure.

Essential Tools and Safety Gear

Gathering everything you need beforehand prevents delays and dangerous improvisations.

• Rotary Hammer Drill: A standard drill is insufficient. A rotary hammer drill provides the necessary percussion and torque to create a clean, uniform hole in dense concrete.
• ANSI-Compliant Carbide-Tipped Masonry Drill Bit: The bit's diameter must match the anchor's diameter. An ANSI-compliant bit ensures the hole tolerance is correct for the anchor to function properly. Using a worn or incorrect bit is a direct path to a failed connection.
• Calibrated Torque Wrench: This is non-negotiable. "Feel" is not a valid measurement for setting a structural anchor. A torque wrench is the only tool that can ensure the anchor is tightened to the manufacturer's specified value, achieving the correct expansion force without damaging the concrete or the anchor itself.
• Compressed Air or a Blow-Out Bulb: To thoroughly clean the drilled hole of all dust and debris.
• Stiff Wire or Nylon Brush: Sized correctly for the hole diameter, this is used to scrub the interior walls of the hole.
• Hammer: For tapping the anchor into the prepared hole.
• Safety Equipment: Always wear safety glasses or goggles, heavy-duty gloves, and hearing protection when operating a hammer drill.

Site Assessment: Concrete and Spacing

Not all concrete is created equal, and anchor placement is critical.

• Concrete Condition: Wedge anchors are designed for solid, cured concrete. They should not be used in block, brick, or other base materials. Ensure the concrete is fully cured (typically at least 28 days old) and free of large cracks.
• Minimum Embedment Depth: This is the minimum length of the anchor that must be embedded into the concrete to achieve its stated holding value. This information is provided by the anchor manufacturer.
• Spacing and Edge Distance: Installing anchors too close to each other or too close to an unsupported edge of the concrete can cause the concrete to crack and fail. Manufacturers provide minimum spacing and edge distance requirements that must be strictly followed. A general rule of thumb is to maintain a minimum of 10 anchor diameters between anchors and 5 anchor diameters from an edge.

The Definitive 5-Step Wedge Anchor Installation Process

Following these five steps with precision and attention to detail will ensure a secure and reliable fastening every time. Let's walk through the process from start to finish.

Step 1: Drill the Hole to the Correct Depth and Diameter

This is the foundation of the entire installation. Precision here is paramount.

1. Mark Your Location: Using a permanent marker or chalk, clearly mark the exact spot where the anchor will be installed, ensuring it adheres to the required spacing and edge distances.
2. Select the Right Bit: Choose an ANSI-compliant carbide-tipped drill bit that has the same diameter as the anchor you are installing. A 1/2" anchor requires a 1/2" hole.
3. Set the Drilling Depth: The hole must be drilled deeper than the anchor's intended embedment depth. A good rule is to drill the hole at least 1/2" to 1" deeper than the anchor will penetrate the concrete. This extra space ensures the anchor does not bottom out and provides a space for any residual dust to settle. Many hammer drills have an adjustable depth gauge for this purpose.
4. Drill the Hole: Hold the hammer drill perpendicular to the concrete surface. Drilling at an angle will compromise the anchor's holding power. Apply steady pressure and let the tool do the work.

Step 2: Thoroughly Clean the Hole

This is arguably the most critical and most frequently neglected step in the entire process. Concrete dust left in the hole acts as a lubricant, drastically reducing the friction between the expansion clip and the concrete walls. This can diminish the anchor's holding capacity by as much as 60%.

1. Blow: Use a compressed air nozzle or a blow-out bulb to blow all the loose dust and debris out of the hole. Be sure to wear safety glasses, as the dust will exit the hole with significant force.
2. Brush: Insert a stiff wire or nylon brush that is correctly sized for the hole diameter. The bristles should make firm contact with the walls. Scrub the inside of the hole vigorously, twisting the brush several times to dislodge any embedded particles.
3. Blow Again: Use the compressed air or blow-out bulb one more time to remove all the dust loosened by the brush. A truly clean hole is essential for achieving the anchor's published load values. The hole is not clean until no more dust comes out during the blowing process.

Step 3: Install the Anchor

With a clean hole prepared, you can now install the anchor itself.

1. Assemble the Anchor: Ensure the nut and washer are on the top of the threaded stud. The nut should be threaded on so that it is flush with the top of the anchor body. This protects the threads from damage when you tap the anchor with a hammer.

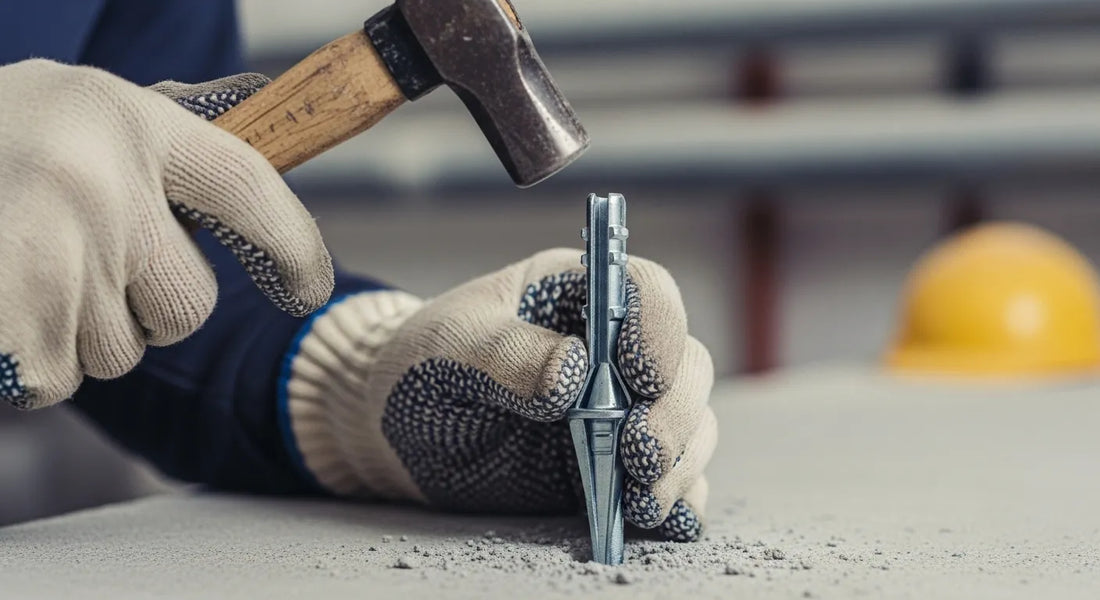

2. Drive the Anchor: Insert the clip end of the anchor into the hole. Gently tap the top of the anchor (on the nut) with a hammer. Continue tapping until the washer and nut are snug against the surface of the material you are fastening. If you are installing the anchor before the fixture is in place, drive it in until the required embedment depth is reached.

Step 4: Position the Fixture and Hand-Tighten

Now, it's time to position the object you are securing. For an MRO buyer under pressure to improve warehouse safety after a near-miss with a forklift, this step is where the plan becomes reality. Properly securing a guard rail is not just a maintenance task; it's a critical safety implementation.

1. Place the Fixture: Position the fixture, such as the base plate of a Jesco 10ft Safety Yellow Barrier Rail, over the protruding anchor stud.
2. Add Hardware: Place the washer over the stud, followed by the nut.
3. Hand-Tighten: Tighten the nut by hand until it is snug. This will ensure the fixture is properly seated before applying the final torque.

Step 5: Apply the Specified Torque

This final step is what "sets" the anchor, creating the expansion and the immense holding power.

1. Use a Torque Wrench: Set your calibrated torque wrench to the value specified by the anchor's manufacturer. This value depends on the anchor's diameter, material, and embedment depth.
2. Tighten the Nut: Place the wrench on the nut and tighten in a smooth, continuous motion until the wrench clicks or signals that the specified torque has been reached. Do not continue to tighten after this point.
3. Check for Spinning: The anchor should not spin in the hole as you apply torque. If it does, it's an indication of an oversized hole or a failure in the base material, and the anchor must be relocated.

The anchor is now properly installed, providing the maximum holding power it was designed to deliver. Whether you are securing a single piece of equipment or outfitting an entire facility with new pallet racking and safety guards, following this process ensures a safe and lasting result.

Common Installation Mistakes and How to Avoid Them

Even with a clear process, errors can happen. Being aware of the most common pitfalls is the best way to avoid them.

• Using an Incorrect Drill Bit: A hole that is too large will prevent the clip from making proper contact, and the anchor will spin. A hole that is too small will prevent the anchor from being inserted. Solution: Always use an ANSI-compliant bit that matches the anchor diameter exactly.
• Inadequate Hole Cleaning: As mentioned, this is the number one cause of reduced holding power. Solution: Follow the "blow-brush-blow" method until no more dust is visible.
• Ignoring Edge and Spacing Rules: Placing an anchor too close to an edge creates a cone of pressure that can easily blow out the side of the concrete slab. Solution: Meticulously measure and adhere to the manufacturer's minimum distance requirements.
• Over-Torquing: Applying too much torque can be just as bad as not enough. It can cause the concrete to crack, stretch the anchor's stud beyond its yield point, or even strip the threads. Solution: Always use a calibrated torque wrench set to the specified value.
• Under-Torquing: Failing to apply enough torque means the expansion clip is not fully engaged, resulting in a weak connection that could fail under load. Solution: Use a torque wrench for the final tightening—no exceptions.

For a procurement manager tasked with installing a series of Heavy-Duty Steel Rack End Protectors in a busy warehouse, a single failed anchor due to one of these mistakes could result in thousands of dollars in damaged inventory and racking. The cost of precision is minimal compared to the cost of failure.

The Maden.co Advantage: A Partnership in American Excellence

In an era of unpredictable global supply chains, the ability to source critical components like industrial-grade fasteners from verified domestic manufacturers is a powerful strategic advantage. This is the core of our mission at Maden.co. We are dedicated to proving that American-made components are just as accessible and convenient as any global alternative.

When you source hardware through our B2B marketplace, you are gaining more than just a product. You are gaining:

• Supply Chain Transparency: You know where your products are coming from, with clear traceability back to one of our 800+ verified U.S. manufacturing partners.
• Industrial Excellence: You get access to components that are manufactured to the highest quality and compliance standards, reducing the risk of material defects and premature failure.
• Customer Empowerment: Our platform streamlines the procurement process, reducing friction and saving valuable time. For complex projects requiring modular solutions, like installing a series of Jesco 8 ft Lift-Out Guard Rails, you can source all the necessary hardware from one reliable domestic hub.

If you are an American manufacturer producing high-quality industrial components, we invite you to join our network and be a part of this movement. Register as a vendor and help us prove that America's manufacturing revival is here.

Conclusion

The proper installation of a wedge anchor is a foundational skill in any industrial setting. It is a process where precision matters, from selecting the correct drill bit to applying the final, measured torque. By understanding the mechanics of the anchor and meticulously following each step—drilling, cleaning, installing, and torquing—you transform a simple piece of hardware into a steadfast point of structural integrity. This diligence directly translates into a safer workplace, more reliable equipment mounting, and a more resilient facility.

Don't let procurement challenges or supply chain uncertainties compromise the quality of your work. We are your strategic partner in building a more efficient and reliable procurement process. Explore the vast Maden.co catalog to find the American-made wedge anchors and industrial hardware you need for your next project. To help you manage capital for larger-scale facility upgrades or equipment installations, you can apply for Instant Financing at checkout, a strategic tool to improve your cash flow and get critical projects moving forward. If you have specific sourcing needs or technical questions, please do not hesitate to contact our team of experts.

Frequently Asked Questions (FAQ)

1. What happens if I over-torque a wedge anchor? Over-torquing is a serious error that can lead to immediate or future failure. It can cause the concrete around the anchor to crack or spall, creating a weak point. It can also stretch the anchor's steel stud beyond its elastic limit, permanently weakening it, or even strip the threads. This is why using a calibrated torque wrench set to the manufacturer's specification is absolutely critical.

2. Can I reuse a wedge anchor once it has been installed? No, a wedge anchor is a permanent, single-use fastener. The process of torquing and setting the anchor permanently deforms the expansion clip. Attempting to remove and reinstall it will result in a significantly compromised and unreliable connection that cannot be trusted to handle its rated load.

3. How close to the edge of the concrete can I install a wedge anchor? This is known as the "critical edge distance," and it varies based on the anchor's diameter and embedment depth. Installing an anchor too close to an unsupported edge can cause the concrete to break away. Always consult the manufacturer's technical data sheet for the specific minimum edge distance required for the anchor you are using. A general guideline is to maintain a distance of at least five anchor diameters from any edge.

4. What is the difference between embedment depth and hole depth? Embedment depth is the specific length of the anchor body that must be installed into the concrete to achieve the published load values. Hole depth is the total depth you drill the hole. The hole depth must always be greater than the required embedment depth (typically by at least 1/2 inch) to provide space for the anchor to be fully inserted and to collect any small amount of remaining dust without bottoming out.
