Introduction

A facility manager stares at the production floor layout, a blueprint for efficiency that requires relocating a critical piece of machinery. The only thing standing in the way is the heavy-duty safety railing surrounding it, its base plates secured firmly to the concrete with a dozen sleeve anchors. These small but mighty fasteners, designed for permanence, now present a significant challenge. Removing them incorrectly could mean cracked concrete, costly repairs, and project delays that ripple through the entire supply chain. This scenario is a common reality in dynamic industrial environments where adaptation and reconfiguration are constants.

Sleeve anchors are the unsung heroes of industrial fastening, providing immense holding power for everything from pallet racking to heavy equipment. But their strength is a double-edged sword when it comes time for removal. This task is not about brute force; it is about understanding the mechanics of the anchor and applying the right technique to release its grip without damaging the surrounding substrate. This article serves as an authoritative guide for procurement managers, MRO buyers, and facility engineers on how to remove sleeve anchors safely and efficiently.

We will explore the fundamental design of a sleeve anchor, detail the essential tools and safety precautions, provide step-by-step instructions for standard and stubborn removals, and cover the critical final step of repairing the concrete surface. More importantly, we will connect this practical task to the broader strategic goals of facility management—ensuring that once old fixtures are removed, you are prepared to source and install superior, American-made components that enhance safety and productivity for years to come. At Maden.co, we believe that every component, and every process, contributes to a stronger, more resilient American manufacturing ecosystem.

Understanding the Sleeve Anchor: The Science of a Secure Hold

Before you can effectively remove a sleeve anchor, it is essential to understand how it works. This knowledge transforms the task from a frustrating battle of force into a calculated process of mechanical disassembly. A sleeve anchor is an expansion-type fastener designed to create a powerful, load-bearing connection in solid base materials like concrete, brick, or block.

The Core Components of a Sleeve Anchor

A typical sleeve anchor consists of four primary parts, each playing a critical role in its function:

  • The Threaded Bolt: This is the core of the anchor. The top is threaded to accept a nut and washer, while the bottom end features a tapered or cone-shaped section.
  • The Expansion Sleeve: This is a cylindrical metal sleeve that fits over the bolt. It is often scored or split to allow it to expand easily.
  • The Washer: A standard flat washer that distributes the load of the nut.
  • The Nut: A hex nut that, when tightened, initiates the anchoring action.

The Expansion Mechanism: How It Grips Concrete

The genius of the sleeve anchor lies in its simple yet incredibly effective expansion mechanism. The process works as follows:

  1. A hole is drilled into the concrete that matches the diameter of the anchor sleeve.
  2. The complete anchor assembly is inserted into the hole until the washer and nut are flush with the surface of the fixture being fastened.
  3. As the nut is tightened, it pulls the threaded bolt upward.
  4. This upward movement draws the tapered cone at the bottom of the bolt into the expansion sleeve.
  5. The cone forces the sections of the sleeve to expand outwards, pressing them with immense force against the interior walls of the drilled hole.

This creates a powerful friction hold that can withstand significant shear and tensile forces. The anchor becomes one with the concrete, which is precisely why it is a preferred choice for securing heavy machinery and critical safety structures. This inherent permanence is what makes removal a specialized task. You are not simply unscrewing a bolt; you are reversing a powerful mechanical wedging action.

Safety First: Essential Preparations and Tools

Attempting to remove a sleeve anchor without the proper preparation and equipment is inefficient and dangerous. Metal fragments can fly, heavy tools can slip, and improper technique can cause injury or property damage. Prioritizing safety sets the stage for a successful and professional outcome.

Personal Protective Equipment (PPE)

Never underestimate the importance of PPE, even for what seems like a simple task.

  • Safety Glasses or Goggles: This is non-negotiable. Striking metal on metal, chipping concrete, or using power tools can send small, sharp projectiles flying at high speed. Protect your vision at all times.
  • Work Gloves: Heavy-duty leather or impact-resistant gloves will protect your hands from cuts, scrapes, and blisters when handling tools and sharp metal edges.
  • Hearing Protection: If you need to use an angle grinder or a hammer drill, foam earplugs or over-ear muffs are essential to protect against hearing damage.
  • Steel-Toed Boots: Standard practice in any industrial setting, these protect your feet from falling tools or components.

The Right Tools for the Job

Having the correct tools on hand before you begin prevents frustration and the temptation to use an improper, and likely unsafe, substitute.

  • Wrench or Socket Set: To loosen and remove the nut. A socket wrench is often more efficient than an open-ended wrench.
  • Hammer or Mallet: A standard claw hammer or a small sledgehammer (engineer's hammer) is needed to tap the bolt and disengage the sleeve.
  • Pry Bar or Crowbar: Essential for leveraging the anchor out of the hole once it's loosened. A "cat's paw" or trim puller can also work for smaller anchors.
  • Locking Pliers (Vise-Grips): Invaluable for gripping the bolt head if it's damaged or if you need extra torque to wiggle the assembly free.
  • Power Tools (for difficult removals):
    • Angle Grinder with a metal cut-off wheel.
    • Rotary Hammer or Drill with masonry and metal drill bits.
  • Cleanup and Repair Tools:
    • Shop Vacuum or a stiff brush to clean the hole.
    • Concrete Patching Compound or two-part epoxy filler.
    • Putty Knife or trowel for applying the filler.

Before starting, clear the immediate work area of any tripping hazards and ensure you have stable footing. A clean and organized workspace is a safe and efficient workspace.

Step-by-Step Guide: How to Remove a Sleeve Anchor

With your safety gear on and tools at the ready, you can now begin the removal process. We will cover the standard method first, which works for most situations, followed by techniques for more stubborn or damaged anchors.

Method 1: The Standard Removal Technique (Pry and Pull)

This method leverages the anchor's own mechanics to disengage it and is the cleanest way to achieve a full removal.

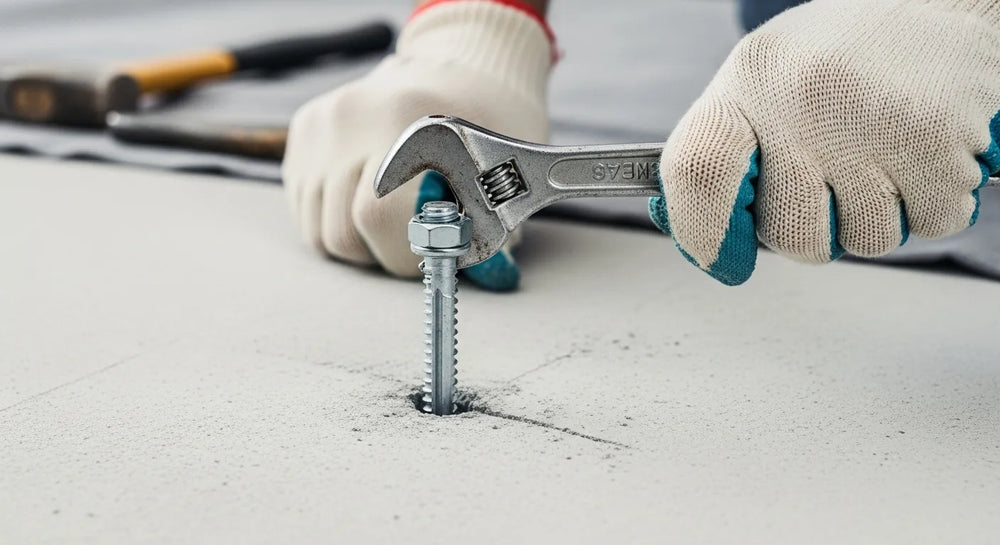

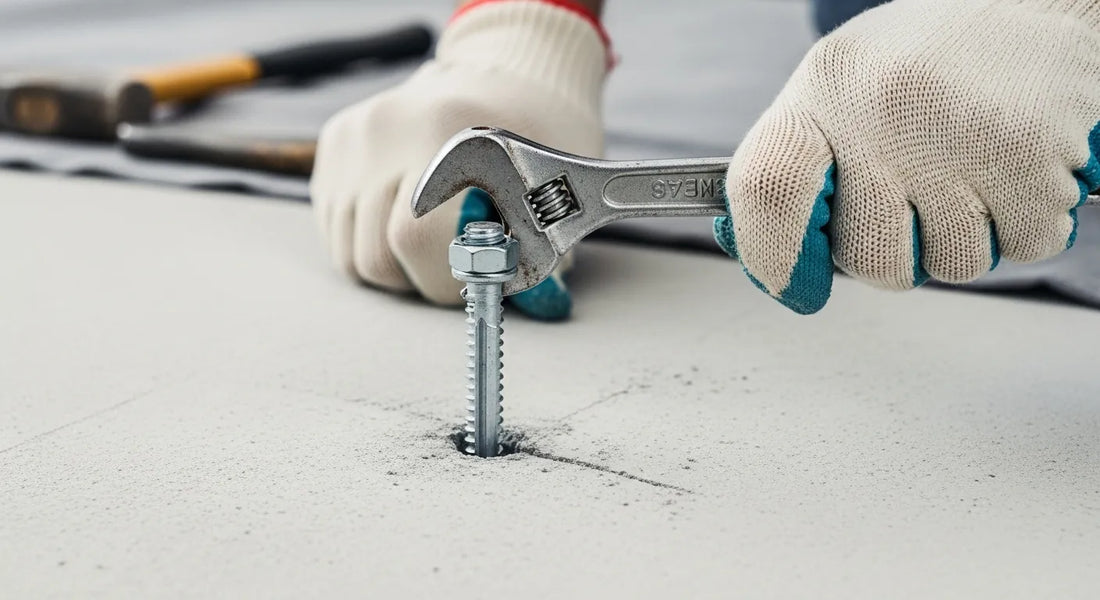

Step 1: Loosen and Remove the Nut and Washer

Use your wrench or socket set to completely unscrew the nut from the top of the bolt. Set the nut and washer aside. This step removes the initial tension on the assembly. In some very rare cases with lightly set anchors, this might be enough to loosen it, but typically, it's just the starting point.

Step 2: Tap the Bolt Down to Disengage the Sleeve

This is the most critical step in the entire process. Place the tip of a screwdriver or a metal punch on the center of the threaded bolt head. Give it a few firm, direct taps with a hammer. You are not trying to drive the bolt deep into the concrete; you are simply trying to push it down about a quarter to a half-inch.

Why this works: Tapping the bolt down pushes the tapered cone away from the expansion sleeve. This immediately relieves the outward pressure of the sleeve against the concrete walls, breaking the friction lock. Skipping this step and trying to pull the anchor out directly will almost certainly fail and can damage the concrete.

Step 3: Create Leverage Under the Anchor Head

Once the sleeve is disengaged, the anchor will be loose in the hole but may not come out easily. The goal now is to get leverage underneath the head or flange of the anchor sleeve. Slide the claw of your hammer or the flat end of a pry bar under the lip of the anchor. You may need to tap the pry bar into position gently with your hammer.

Step 4: Pry and Extract the Anchor Assembly

With your pry bar securely in place, apply steady, upward pressure. Use a small block of wood under the pry bar as a fulcrum to protect the concrete surface from being dented or chipped. As you pry upwards, the entire anchor assembly—bolt, sleeve, and all—should begin to lift out of the hole. You may need to wiggle it back and forth while pulling to work it free completely. If the bolt head is accessible, you can also grip it with locking pliers and pull while twisting.

Method 2: Techniques for Stubborn or Damaged Anchors

Sometimes, an anchor is rusted, the bolt head is stripped, or it is so deeply set that the standard method doesn't work. In these cases, you have a few other options.

The Cut-Off Method

If complete removal is not necessary and your primary goal is a flat surface, this is the fastest solution.

  1. Use an angle grinder fitted with a metal cut-off wheel.
  2. Wearing your full PPE (especially eye and face protection), carefully cut the top of the anchor bolt and sleeve so it is flush with, or slightly below, the surface of the concrete.
  3. The remainder of the anchor is abandoned in the hole. This method is ideal if you plan to install new flooring over the area or if the hole will be patched and its reuse is not required.

The Punch-Through Method

If the concrete slab is thin or if there is a void underneath (e.g., in a block wall), you may be able to simply drive the anchor through. After removing the nut and washer, use a hammer and a sturdy metal punch (like a pin punch) to drive the entire anchor assembly completely through the hole and out the other side. This is a highly situational method and is not applicable for most slab-on-grade concrete floors.

The Drill-Out Method

This is a last-resort option for when the anchor is completely seized and must be removed.

  1. Cut the top of the anchor bolt off flush with the surface using an angle grinder.
  2. Use a center punch to create a small indent in the exact center of the remaining bolt stud. This will prevent your drill bit from wandering.
  3. Select a high-quality metal drill bit that is slightly smaller in diameter than the anchor bolt.
  4. Carefully drill down through the center of the bolt. This will either destroy the bolt's integrity, allowing you to break it apart and pull out the pieces, or it will relieve the pressure on the sleeve enough for it to be collapsed inward and extracted. This method requires patience and precision.

Post-Removal: Preparing the Surface for What's Next

Successfully removing the anchor is only half the job. A professional finish requires properly repairing the hole to restore the integrity and safety of the concrete surface.

Step 1: Thoroughly Clean the Hole

Use a shop vacuum with a narrow crevice tool to suck all the dust, debris, and metal fragments out of the empty hole. Alternatively, use compressed air (while wearing safety glasses) to blow the hole clean. A clean, dust-free surface is critical for the patching material to bond correctly.

Step 2: Fill the Hole with a Patching Compound

The choice of filler depends on the application.

  • For general-purpose repairs: A high-strength, non-shrink concrete patching compound or grout is an excellent choice. Mix it according to the manufacturer's directions to a paste-like consistency.
  • For high-traffic or high-impact areas: A two-part epoxy filler provides a more durable, chemically resistant, and faster-curing repair.

Use a putty knife or a small trowel to press the patching material firmly into the hole. Overfill it slightly, as some materials may shrink a bit as they cure.

Step 3: Finish the Surface

Once the hole is filled, use the flat edge of your putty knife to screed the surface of the patch, making it perfectly flush with the surrounding concrete. Allow the material to cure completely as specified by the manufacturer. Once cured, you can sand it lightly if needed for a perfectly smooth finish. This step is vital for preventing trip hazards and creating a clean slate for new layouts or floor coatings.

From Removal to Reinstallation: Building a Better, Safer Facility

The process of removing old anchors is rarely just about demolition; it is the first step toward improvement, reconfiguration, and upgrading your facility. An empty, patched hole represents an opportunity to install better, more effective equipment sourced from reliable partners. For a procurement manager overseeing a facility-wide safety upgrade, this means replacing outdated barriers with modern, compliant, and durable solutions. This is where strategic sourcing becomes paramount.

After clearing a space, you might be tasked with defining new pedestrian walkways or protecting sensitive control panels. For these applications, a product like the Jesco Guard Rails 10ft Safety Yellow Barrier Rail offers a highly visible, robust barrier that clearly delineates safe zones from operational areas. Its U.S.-made quality ensures consistency and reliability, critical factors in any safety installation.

In other areas, flexibility is key. Perhaps you need to protect a piece of machinery that requires frequent access for maintenance. Tearing down a permanent barrier is inefficient. A smarter solution is the Jesco 8 ft Guards Rail Safety Yellow Lift Out Type. These sections can be easily removed and replaced without tools, providing protection when needed and access when required, streamlining MRO tasks.

For the most critical zones—high-traffic forklift aisles, loading docks, or the perimeter of essential electrical equipment—standard-duty is not enough. You need uncompromising strength. The Jesco Extra Heavy Duty 96" Welded Rail System is engineered specifically to withstand significant impacts, providing a last line of defense against costly accidents. Sourcing such critical components through a trusted B2B marketplace ensures you get the specified material strength and build quality your facility demands.

At Maden.co, our mission is to democratize access to American manufacturing, connecting industrial buyers directly with over 800+ verified U.S. manufacturers. Our platform, featuring over 2.5 million products, is built on core values of American Manufacturing Pride and Supply Chain Transparency. We believe that choosing American-made is a strategic decision that enhances quality, reduces lead times, and strengthens domestic supply chains. You can learn more about our mission to champion American manufacturing here. For U.S. manufacturers ready to expand their reach, we invite you to register as a vendor and join the American manufacturing revival.

By simplifying the procurement process, we empower businesses to build safer, more efficient operations. If you have specific sourcing questions or need help finding a particular component, our team is ready to help. We understand that major facility upgrades are capital-intensive. That is why we offer a strategic tool to help manage cash flow. You can apply for Instant Financing at checkout to streamline your capital-intensive projects, making it easier to invest in the quality equipment your facility deserves.

Conclusion

Removing a sleeve anchor from concrete is a task that demands more than just muscle. It requires an understanding of the fastener's mechanics, a commitment to safety, and a methodical approach. By following the steps outlined—loosening the nut, tapping the bolt down to disengage the sleeve, and using proper leverage—you can extract even well-set anchors cleanly and efficiently, preserving the integrity of your concrete floor. For stubborn anchors, knowing when to switch to cutting or drilling methods can save valuable time and prevent further damage.

This process is a microcosm of the larger cycle of industrial improvement: removing the old to make way for the new. As you plan your next facility upgrade, from installing new safety barriers to mounting next-generation machinery, consider the strategic advantage of a streamlined and reliable supply chain. Explore the Maden.co catalog to discover millions of competitively priced, U.S.-made products ready to ship. Empower your projects and manage your budget effectively by taking advantage of Instant Financing at checkout, and partner with us to build a stronger, safer, and more productive American industrial landscape.

Frequently Asked Questions (FAQ)

1. Can I reuse a sleeve anchor after removing it? No, it is strongly advised not to reuse a sleeve anchor. The removal process, particularly the expansion and extraction, deforms the metal sleeve. A reused anchor will not provide the same certified holding power or reliability as a new one, posing a significant safety risk for any load-bearing application.

2. What if the sleeve anchor just spins in the hole when I try to loosen the nut? If the entire anchor assembly spins when you turn the nut, it means the sleeve is not gripping the walls of the hole. This usually happens with an improperly installed anchor. To solve this, try to apply upward pressure on the fixture or with a pry bar underneath the washer while you turn the nut. This can help engage the sleeve enough to allow the nut to be loosened and removed.

3. Is it better to cut the anchor flush or pull it out completely? This depends entirely on your future plans for the hole. If you need to reuse the same hole for a new anchor of the same size, you must pull the old one out completely. If the hole will be patched and covered by new flooring, or if the new fixture's base plate will cover the old spot, then cutting the anchor flush is a much faster and more efficient method.

4. What's the best way to fill the hole left by a sleeve anchor for a lasting repair? For the most durable and professional repair, a two-part epoxy-based concrete filler is the best option. It offers superior strength, excellent bonding capabilities, and high resistance to chemicals and impact. For less critical, low-traffic areas, a high-quality, non-shrink polymer-modified concrete patching compound is also a very effective and more economical choice. Always ensure the hole is perfectly clean before filling.
