Introduction

A project engineer stands on a newly poured concrete floor, blueprint in hand. The designated spot for a 10,000-pound CNC machine is marked, but a critical question looms: how do you securely fasten something that massive and prone to vibration to a seemingly impenetrable surface? Simply drilling a hole and using a standard bolt is out of the question; the forces involved would rip it out in moments, creating a catastrophic safety hazard and a costly operational failure. This exact challenge, faced daily in manufacturing plants, warehouses, and construction sites across America, is solved by an ingenious and indispensable piece of hardware: the expansion anchor.

This article will serve as an in-depth resource for procurement managers, MRO buyers, and design engineers, demystifying the world of expansion anchors. We will explore the fundamental principles of how they work, break down the anatomy of their design, and detail the most common types available for various applications. More importantly, we will provide a practical framework for selecting the correct anchor based on critical factors like base material, load requirements, and environmental conditions.

Ultimately, understanding the mechanics and applications of expansion anchors is fundamental to ensuring the safety, stability, and long-term integrity of critical industrial infrastructure. By pairing this knowledge with a strategic approach to sourcing high-quality, American-made components, you can build not only stronger structures but also a more resilient and reliable supply chain for your entire operation.

The Fundamental Principle: How Expansion Anchors Work

At its core, an expansion anchor is a specialized fastener designed to create an incredibly strong connection within a solid base material like concrete, brick, or stone. Unlike a simple screw in wood, which relies on threads cutting into the material, an expansion anchor functions by exerting immense outward force against the interior walls of a pre-drilled hole. This creates a powerful frictional or keyed grip that can withstand significant tensile (pull-out) and shear (sideways) forces.

Think of it as a mechanical handshake with the concrete itself. When the anchor is tightened, a component inside it—typically a cone, plug, or wedge—is drawn into a sleeve or shield, forcing it to expand. This expansion is precisely controlled to generate a 360-degree contact pressure inside the hole, essentially locking the anchor into place. The integrity of this connection is paramount, as it directly supports the weight and operational forces of whatever is being mounted.

There are two primary mechanisms through which this locking action is achieved:

• Friction-Based Grip: This is the most common mechanism. As the anchor expands, it presses forcefully against the rough, porous surface of the concrete or masonry. The resulting friction is so high that it prevents the anchor from being pulled out, even under thousands of pounds of force.
• Keying or Undercutting: Some specialized anchors are designed to expand into irregularities within the drilled hole or into a specially created "undercut" at the bottom of the hole. This creates a mechanical interlock, similar to how a dovetail joint works in woodworking, providing an even higher level of resistance to pull-out forces.

Regardless of the specific mechanism, the effectiveness of any expansion anchor is entirely dependent on the quality and integrity of the base material. A strong anchor in weak, cracked, or low-density concrete will inevitably fail. This is why understanding the substrate is the first and most critical step in the selection process.

Anatomy of an Expansion Anchor

While designs vary widely, most expansion anchors share a few fundamental components that work in concert to create a secure connection. Understanding this basic anatomy helps in diagnosing installation issues and selecting the right tool for the job.

The Anchor Body

This is the main structural element of the anchor, often a sleeve, shield, or threaded stud that is inserted into the pre-drilled hole. The material of the body is a critical specification. Carbon steel is common for indoor applications due to its strength and cost-effectiveness. For exterior use or in environments with moisture or chemical exposure, stainless steel (typically grades 304 or 316) is essential for its corrosion resistance. For certain applications in softer base materials, a softer, more malleable metal is used for the expanding part. For example, the shield component of some anchors is made from a non-corrosive zinc alloy like Zamac, which provides excellent expansion characteristics without damaging the base material.

The Expansion Mechanism

This is the heart of the anchor. It is the component that generates the outward force. Common mechanisms include:

• Internal Cone/Plug: A tapered cone or plug that is pulled up or driven down into the anchor body, forcing it to expand.
• Wedge Clip: A small, wrap-around clip at the bottom of a stud-type anchor that is forced outward as the anchor is tightened.
• Split Sleeve: The anchor body itself is split and designed to flare outwards when an internal mechanism is activated.

The Fastener Element

This is the part of the anchor that the user interacts with to activate the expansion and attach the fixture. It can be an integrated threaded stud that protrudes from the hole, an internally threaded body that accepts a separate bolt or threaded rod, or a hex, flat, or round head bolt that is part of the anchor assembly. The choice of fastener element often depends on whether the fixture needs to be removable or if a flush-mounted finish is required.

At Maden.co, we understand that material science and design integrity are non-negotiable. Our mission is to democratize access to American manufacturing, providing a platform where industrial buyers can easily find components that meet precise specifications from a network of over 800+ verified U.S. manufacturers. This commitment to industrial excellence ensures you get parts with traceable materials and consistent quality, every time.

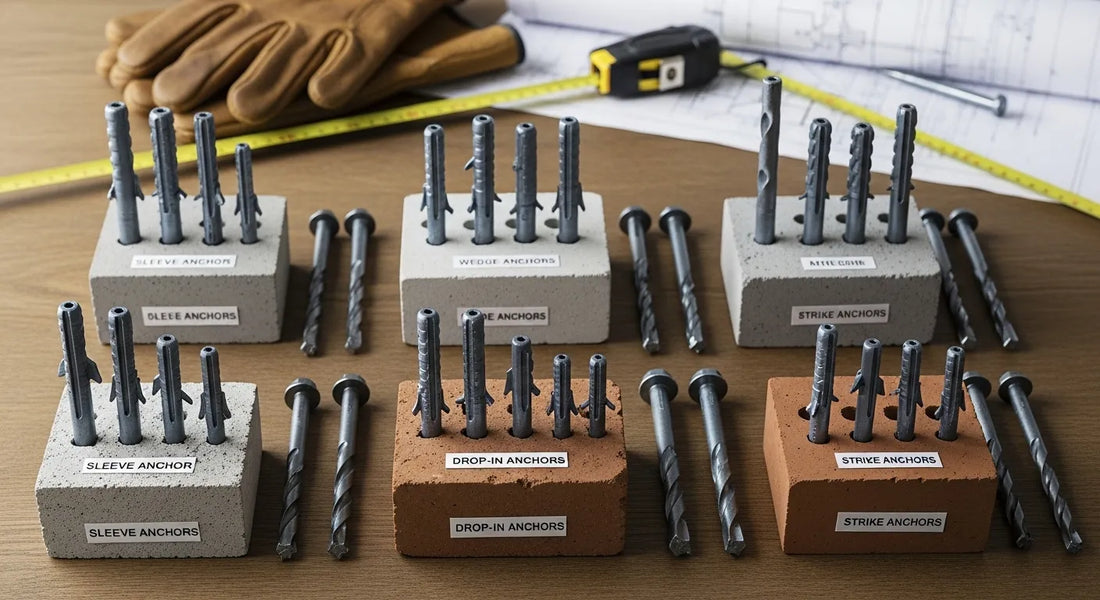

Types of Expansion Anchors: A Detailed Breakdown

Choosing the right expansion anchor is not a one-size-fits-all decision. The optimal choice depends heavily on the base material, the weight of the object being fastened, and the type of load it will experience. Here is a detailed look at the most common types used in industrial settings.

Sleeve Anchors

Sleeve anchors are one of the most versatile types of expansion anchors. They consist of a threaded bolt pre-assembled inside an expansion sleeve. As the bolt head is tightened, it pulls a tapered cone into the sleeve, causing the entire length of the sleeve to expand and grip the sides of the hole.

• How They Work: Provides a 360-degree grip along the length of the sleeve.
• Best For: Light to medium-duty applications in a wide range of base materials, including solid concrete, brick, and concrete block (CMU). They are a reliable choice for fastening support brackets, conduit straps, handrails, and machinery guards.
• Considerations: While versatile, they generally offer lower load capacities than heavy-duty wedge anchors in solid concrete.

Wedge Anchors

Wedge anchors are the workhorses of heavy-duty fastening in solid concrete. They are a stud-type anchor, meaning a threaded stud remains protruding from the surface after installation. The bottom of the stud features a tapered cone and a wrap-around expansion clip. After being inserted into the hole, tightening the nut pulls the stud upwards, forcing the clip to expand and wedge itself tightly against the concrete.

• How They Work: A high-force wedging action at the bottom of the anchor provides exceptional tensile strength.
• Best For: Heavy-duty, high-load applications exclusively in solid, cured concrete. This includes securing structural steel columns, heavy machinery, pallet racking, and mezzanine supports.
• Considerations: They are not suitable for use in block, brick, or green (uncured) concrete, as the high expansion force can crack or spall these weaker base materials.

Drop-In Anchors

A drop-in anchor is an internally threaded, deformation-controlled anchor. It consists of a tubular steel body with an internal, pre-assembled expander plug. After the anchor is "dropped in" to a pre-drilled hole, a special setting tool is used to drive the internal plug downwards, which flares the bottom of the anchor body, locking it in place.

• How They Work: An internal plug expands the base of the anchor, creating a secure, internally threaded point.
• Best For: Medium-duty applications, particularly overhead fastening of threaded rod for sprinkler systems, HVAC ductwork, cable trays, and lighting fixtures. Their key benefit is creating a flush-mount anchor point, leaving no protruding stud.
• Considerations: Requires a specific setting tool for proper installation. The load capacity is dependent on the installer correctly setting the internal plug.

Shield Anchors

Shield anchors are designed for medium-duty fastening in a variety of base materials, including concrete, brick, and block. They consist of an expandable shield and a tapered cone. When a machine bolt or lag screw is tightened into the shield, it pulls the cone up, expanding the shield against the walls of the hole. They come in various configurations, such as single-expansion (expands at the base) and double-expansion (expands at two points along its length for greater holding power).

• How They Work: An external shield is expanded by an internal cone, providing a secure grip that is often less aggressive than a wedge anchor, making it suitable for softer masonry.
• Best For: Fastening machinery, support ledgers, and structural elements to concrete, brick, or block. Their design distributes the load over a larger area. For applications requiring a robust but non-destructive grip in concrete or masonry, a U.S.-made Zamac Alloy Single Expansion Shield Anchor offers an excellent balance of strength and material compatibility, ensuring a reliable connection without risking damage to the substrate. Sourcing these through our platform provides confidence in material quality and manufacturing consistency.

Selecting the Right Expansion Anchor: A Procurement Manager's Checklist

Making the wrong anchor choice can lead to project delays, budget overruns, and, most critically, catastrophic structural failure. A systematic approach is required. For any procurement professional, engineer, or MRO buyer, this checklist is an essential part of the specification process.

1. Base Material Analysis

This is the non-negotiable starting point. The type, strength, and condition of the base material dictate which anchors are even viable options.

• Solid Poured Concrete: The ideal substrate for heavy-duty anchors like wedge and drop-in anchors. Its compressive strength (measured in PSI) should be known.
• Concrete Block (CMU): The hollow cells and relatively lower strength of block require anchors that distribute load over a larger area, like sleeve anchors or shield anchors.
• Brick: Similar to block, brick is more brittle than solid concrete. Less aggressive expansion anchors are necessary to prevent cracking.
• Condition: Is the concrete old and potentially cracked? Is it "green" (newly poured and not fully cured)? These conditions significantly reduce holding power.

2. Load Requirements

You must understand the forces the anchor will be subjected to.

• Tensile Load: The "pull-out" force acting parallel to the anchor. This is the primary force for overhead applications.
• Shear Load: The force acting perpendicular to the anchor, trying to slice it sideways. This is common for items mounted on a vertical wall.
• Static vs. Dynamic Loads: A static load is constant and unchanging (e.g., a mounted pipe rack). A dynamic load involves vibration or movement (e.g., a large motor or piece of rotating machinery). Dynamic loads require anchors specifically rated for such conditions, as vibrations can cause standard anchors to loosen over time.

3. Environmental Factors

The operational environment plays a huge role in the anchor's longevity.

• Interior/Dry: Standard zinc-plated carbon steel anchors are usually sufficient.
• Exterior/Wet: Exposure to moisture, rain, or humidity requires stainless steel or hot-dip galvanized anchors to prevent corrosion and rust, which can compromise structural integrity.
• Chemical/Corrosive: In manufacturing plants, wastewater facilities, or coastal areas, higher-grade stainless steel (like Type 316) may be necessary to resist specific chemical agents or salt spray.

4. Installation & Hole Specifications

The phrase "measure twice, cut once" is doubly true for anchoring.

• Hole Diameter and Depth: Each anchor has a precise hole size requirement. Using the wrong size drill bit will result in either an anchor that doesn't fit or one that has no holding power. The hole must also be drilled to the correct depth and be thoroughly cleaned of all dust and debris before installation.
• Edge Distance and Spacing: Anchors must be installed a minimum distance from any concrete edge and from each other. Placing them too close can cause the concrete to crack and fail under load. These specifications are provided by the manufacturer and must be followed rigorously.

5. Compliance and Certification

In many industrial and commercial applications, fasteners must meet specific industry standards or have certain certifications. Our value of Supply Chain Transparency means we connect you with manufacturers who provide clear documentation and traceability for their products, ensuring the components you procure meet the standards your project demands.

The Strategic Advantage of Sourcing American-Made Anchors

In today's volatile global market, the decision of where to source components like expansion anchors has moved from a simple cost calculation to a complex strategic decision. Choosing to source from American manufacturers offers tangible benefits that directly impact your bottom line and operational stability.

Supply Chain Resilience: The disruptions of the past few years have laid bare the vulnerabilities of long, overseas supply chains. A critical shipment of fasteners stuck in a port for weeks can bring a multi-million dollar project to a grinding halt. By sourcing domestically, you shorten your supply chain, reduce lead times, and gain immunity from international shipping delays and geopolitical instability. America's manufacturing revival is here, and it offers the most direct path to a secure and predictable supply of essential components.

Quality and Transparency: When you partner with verified U.S. manufacturers, you gain a level of quality control and material transparency that is often difficult to verify from overseas suppliers. American manufacturing is built on a foundation of rigorous standards, consistent production, and accountability. You can trust that the steel composition, heat treatment, and dimensional tolerances of an American-made anchor meet the stated specifications. You can learn more about our mission to champion American manufacturing here and how we vet our partners to ensure they meet the highest standards of industrial excellence.

A Holistic Approach to Industrial Safety: Securing equipment is often part of a larger safety initiative. Imagine a warehouse manager tasked with overhauling facility safety to meet new standards. This project requires more than just anchors. It involves installing robust physical barriers to protect both people and infrastructure. Sourcing a Heavy Duty Steel Rack End Protector Extension Kit to shield vulnerable pallet racking and installing high-visibility Jesco Guard Rails using the correct, high-strength American-made wedge anchors creates a comprehensive safety ecosystem. Procuring all these critical components through a single, reliable domestic marketplace like Maden.co simplifies logistics, aligns delivery schedules, and guarantees a consistent level of quality across the entire project.

Streamlining Procurement: Beyond the Anchor

Our core value of Customer Empowerment drives us to do more than just sell parts. We aim to solve the systemic challenges of industrial procurement. We've built a platform designed to reduce friction and improve the Total Cost of Ownership (TCO) for our customers.

TCO extends far beyond the per-unit price of an anchor. It includes the "soft costs" of sourcing: the hours your team spends vetting new suppliers, the administrative overhead of managing dozens of vendors, the financial risk of a part failing due to poor quality, and the massive opportunity cost of project delays caused by unreliable deliveries.

By providing direct access to a curated network of over 800+ verified U.S. manufacturers and a catalog of more than 2.5 million products, we eliminate those soft costs. You save time, reduce risk, and can reallocate your team's valuable resources to more strategic initiatives.

Furthermore, we understand that large-scale industrial projects and major MRO undertakings often require significant capital investment. To support your business's growth and operational needs, we offer a powerful tool for financial flexibility. For larger projects, such as a full warehouse safety refit or a major equipment installation, managing cash flow is critical. That's why we offer an Instant Financing option directly at checkout. It's a strategic tool that allows businesses to acquire the necessary high-quality components without disrupting their capital flow. You can apply for Instant Financing at checkout to streamline your capital-intensive projects.

Conclusion

Expansion anchors are far more than simple hardware; they are the unseen foundation of industrial safety and stability. From the machinery on your plant floor to the racking in your warehouse, their proper selection and installation are critical to your operation's success. The process demands a thorough understanding of base materials, load dynamics, and environmental conditions.

Equally important is the strategic decision of where to source these vital components. Embracing the American manufacturing revival is not just a patriotic sentiment; it is a sound business strategy that builds a resilient, transparent, and high-quality supply chain. It mitigates risk, improves your Total Cost of Ownership, and contributes to a stronger domestic industrial base for everyone.

Don't let procurement hurdles or supply chain uncertainties slow down your next project. Explore our comprehensive catalog of American-made products, find the exact anchors and industrial components you need, and experience the power and efficiency of a revitalized domestic supply chain. If you are a U.S. manufacturer ready to reach a wider audience of industrial buyers, register as a vendor and join us in this movement. For any specific sourcing questions, our team is ready to help.

---

Frequently Asked Questions

1. What is the main difference between a wedge anchor and a sleeve anchor? The primary difference lies in their application and mechanism. A wedge anchor is a high-strength anchor designed exclusively for heavy-duty fastening in solid concrete. It works by expanding a small clip at the very bottom of the anchor. A sleeve anchor is more versatile and can be used in concrete, brick, and block for light to medium-duty applications. It works by expanding a sleeve along the majority of its body length, which distributes the load more broadly and is less likely to damage softer base materials.

2. Can I use an expansion anchor in hollow block or brick? Yes, but you must use the correct type. High-force anchors like wedge anchors should never be used in hollow block or brick as they will likely crack the material. Sleeve anchors and certain types of shield anchors are specifically designed for these applications because their expansion mechanism is less aggressive and distributes the holding pressure over a larger surface area. Always check the manufacturer's specifications to ensure an anchor is rated for use in your specific base material.

3. How important is the hole depth when installing an expansion anchor? Hole depth is absolutely critical. Each anchor is engineered to be installed at a specific embedment depth to achieve its stated load capacity. Drilling a hole that is too shallow will prevent the anchor from being installed correctly and will severely compromise its holding power, creating a significant safety risk. Drilling a hole that is too deep can sometimes cause issues with setting the anchor properly. Always use the correct diameter drill bit and drill the hole to the precise depth recommended by the manufacturer.

4. Why should my company prioritize sourcing U.S.-made anchors? Prioritizing U.S.-made anchors offers several strategic business advantages. First, it ensures supply chain resilience by drastically reducing lead times and eliminating risks associated with international shipping and geopolitical instability. Second, it provides greater quality assurance and material traceability, as American manufacturers adhere to stringent quality control standards. Finally, it simplifies procurement and improves your Total Cost of Ownership by reducing the time and risk associated with vetting unknown overseas suppliers, ultimately contributing to a more efficient and reliable operation.
