What Is a Needle Roller Bearing and Why Is It Essential?

Table of Contents

1. Introduction
2. The Fundamental Anatomy of a Needle Roller Bearing
3. Major Types of Needle Roller Bearings and Their Applications
4. Practical Scenarios: Connecting the Component to the Challenge
5. Key Selection Criteria for Procurement and Design
6. Strengthening Your Supply Chain: The Maden.co Advantage
7. Conclusion: Sourcing Smarter for a Stronger Operation
8. Frequently Asked Questions (FAQ)

Introduction

A critical piece of machinery grinds to a halt. The culprit? A failed bearing in a high-load, tight-space application. For the MRO buyer, it’s a race against downtime. For the design engineer, it’s a frustrating reminder of the immense forces at play in compact designs. This scenario is all too common, and it often highlights the pivotal role of a seemingly small but mighty component: the needle roller bearing. These specialized bearings are unsung heroes in countless applications, from automotive transmissions to industrial gearboxes, where they manage immense radial loads in spaces other bearings simply cannot fit.

This post will provide a detailed exploration of needle roller bearings, moving beyond a simple definition to give procurement professionals, engineers, and business owners the knowledge to make strategic sourcing decisions. We will dissect their unique anatomy, explore the various types and their specific applications, outline critical selection criteria, and discuss the immense value of sourcing these precision components from verified U.S. manufacturers. Our goal is to empower you with the technical understanding and procurement strategy needed to enhance equipment reliability, reduce operational friction, and strengthen your domestic supply chain, which is the core mission of our work here at Maden.co. Understanding this component is the first step toward optimizing performance and ensuring your operations run smoothly.

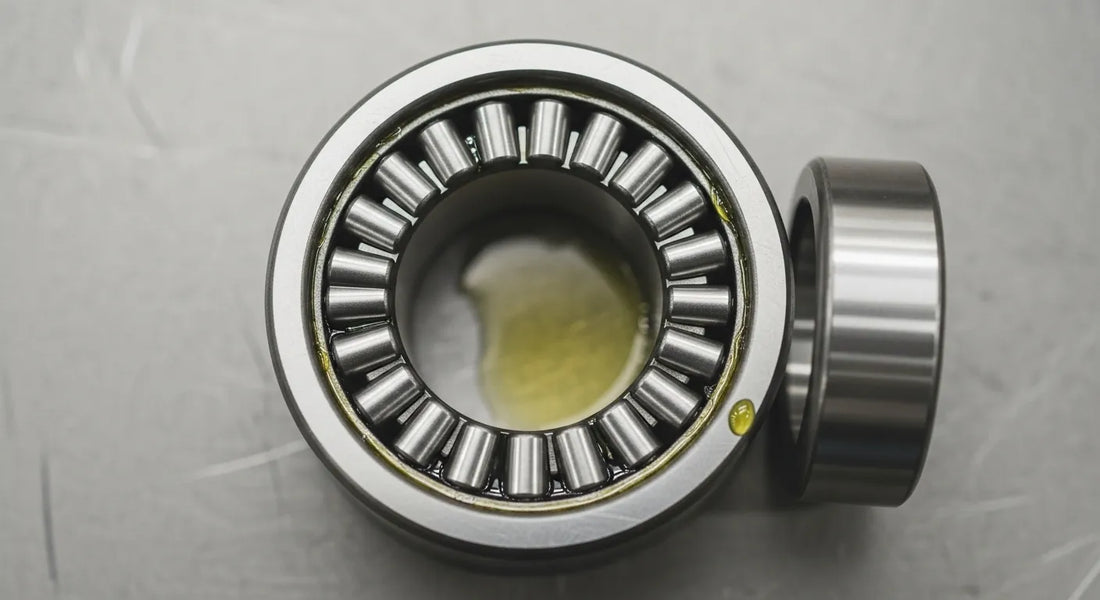

The Fundamental Anatomy of a Needle Roller Bearing

At its core, a bearing's function is to reduce friction between moving parts, constraining relative motion to only the desired motion. While all bearings share this purpose, their methods and capabilities vary significantly. The needle roller bearing distinguishes itself through its unique rolling elements.

Unlike ball bearings, which use spherical balls for point contact, or standard roller bearings that use cylindrical rollers with a length similar to their diameter, needle roller bearings utilize rollers that are thin and long. The defining characteristic is a length-to-diameter ratio typically greater than four. This seemingly simple design change has profound implications for the bearing's performance.

Key Components:

• Needle Rollers: These are the cylindrical rolling elements. Their high length-to-diameter ratio creates a line of contact with the inner and outer raceways, rather than the point contact of a ball bearing. This line contact is the secret to their high load-carrying capacity.
• Cage (or Retainer): In most designs, a cage is used to guide and retain the needle rollers, ensuring they are evenly spaced and preventing them from rubbing against each other. This reduces friction, wear, and heat generation, allowing for higher operational speeds. Materials for cages can range from pressed steel to engineered polymers.
• Outer Ring (or Cup): This is the external component with an inner raceway where the rollers travel. It can be a "drawn cup" style, formed from a thin sheet of high-strength steel, or a "machined ring" style, which is thicker and more rigid for heavier loads and greater precision.
• Inner Ring: Some needle roller bearings include a separate inner ring, providing a hardened and ground raceway for the rollers. However, a key advantage of many needle roller bearing designs is the ability to run the rollers directly on a hardened and ground shaft, saving valuable radial space and reducing cost.

The primary advantage derived from this construction is an exceptionally low cross-sectional height. This makes needle roller bearings the ideal solution for applications where radial space is severely limited, but the demand for high radial load capacity is non-negotiable.

Takeaway: The elongated rollers create a line of contact, distributing the load over a larger surface area. This allows needle roller bearings to support significantly higher radial loads than a single-row ball bearing of the same outside diameter, all within a much smaller radial footprint.

Major Types of Needle Roller Bearings and Their Applications

The world of needle roller bearings is diverse, with numerous designs engineered for specific performance requirements. Understanding these variations is crucial for procurement managers and engineers to select the optimal component for their application.

Drawn Cup Needle Roller Bearings

These are perhaps the most common type, characterized by a thin-walled, drawn steel outer ring. They are pressed into a housing bore, which provides the necessary support and alignment.

• Open End: This is the standard configuration, suitable for a wide range of applications.
• Closed End: One end of the outer cup is closed off, making it ideal for sealing the end of a shaft. This design can accommodate small axial loads and prevent contaminants from entering the bearing. Drawn cup bearings are economical and excellent for mass-produced goods like power tools, automotive sub-assemblies, and office equipment.

Solid (Machined) Ring Needle Roller Bearings

As the name suggests, these bearings feature a solid, machined outer ring, and often an inner ring as well. They are more robust and offer tighter tolerances and greater rigidity than their drawn cup counterparts. This makes them suitable for more demanding applications in machine tools, heavy-duty gearboxes, and industrial machinery where precision and high load capacity are paramount.

Needle Roller and Cage Assemblies (K-Series)

This is the most fundamental form of a needle roller bearing, consisting only of the needle rollers held within a cage. They have no inner or outer ring. This design offers the absolute minimum radial cross-section possible. It requires the shaft and the housing bore to be hardened and ground to serve as the raceways. They are an excellent choice for engine connecting rods, planetary gear sets, and other applications where saving every millimeter of space is critical.

Full Complement Needle Roller Bearings

To maximize radial load capacity, some designs omit the cage entirely and pack the bearing with as many rollers as possible. This "full complement" of rollers significantly increases the number of contact points, boosting the bearing's static and dynamic load ratings. The trade-off is that the operational speed is lower due to friction between adjacent rollers. For high-load, slow-moving or oscillating applications, these are an ideal choice. For instance, the RNN Double Row Full Complement Cylindrical Roller Bearings are designed for exactly these scenarios, offering immense load-bearing capability without an outer ring, further minimizing space requirements.

Thrust Needle Roller Bearings

While most needle roller bearings are designed for radial loads, thrust versions are designed to handle purely axial (thrust) loads. They consist of a cage holding needle rollers arranged like the spokes of a wheel. They are typically used with thrust washers that act as raceways. These bearings provide a high degree of stiffness and are perfect for applications like automatic transmissions and machine tool spindles.

Combined Needle Roller Bearings

These specialized bearings combine a radial needle roller bearing with a thrust bearing (either ball or roller) into a single unit. This allows them to accommodate both radial and axial loads simultaneously, simplifying design and assembly in applications like gearbox main shafts.

Practical Scenarios: Connecting the Component to the Challenge

Theory is valuable, but seeing how these components solve real-world problems is where their importance becomes clear. Imagine an MRO buyer at a distribution center facing an unexpected breakdown on a critical conveyor line. The drive system uses a series of pulleys that rely on needle roller bearings to handle the tension from the belt. Downtime is costing thousands per hour.

The challenge isn't just finding a bearing; it's finding the exact pulley assembly, with the correct bore diameter, outside diameter, and load rating, and getting it on-site immediately. This is where a streamlined procurement process is essential. Searching a vast catalog of American-made components allows the buyer to quickly identify a suitable replacement, like the LP Series 0.5-inch Bore, 2.5-inch OD Standard Needle Roller Bearing Pulley. For a heavier-duty section of the conveyor, they might need the slightly larger and more robust LP Series 0.5-inch Bore, 3-inch OD Standard Needle Roller Bearing Pulley. Access to detailed specifications and verified U.S. manufacturers means they can order with confidence, knowing the part will meet performance standards and arrive without the delays of international shipping.

Key Selection Criteria for Procurement and Design

Choosing the right needle roller bearing involves a careful analysis of the application's demands. A miscalculation can lead to premature failure, costly downtime, and potential damage to surrounding equipment. Here are the primary factors to consider:

1. Load Characteristics

• Radial Load: This is the primary strength of a needle roller bearing. You must determine the magnitude of the radial load the bearing will experience.
• Axial Load: Most standard needle roller bearings can handle little to no axial load. If axial forces are present, a combined bearing or a separate thrust bearing is required.
• Dynamic vs. Static Load: The dynamic load rating (C) is used for calculating the life of a bearing in motion, while the static load rating (C0) relates to the maximum load a non-rotating bearing can withstand without permanent deformation.
• Shock or Vibrational Loads: Applications with heavy shock loads may require a bearing with higher load ratings or a full complement design for maximum durability.

2. Speed and Rotational Requirements

The limiting speed of a bearing is determined by its design, size, cage material, lubrication, and heat dissipation. Cage-guided bearings can typically operate at higher speeds than full complement bearings. Always check the manufacturer's specifications for speed ratings.

3. Space Constraints

This is often the driving factor for choosing a needle roller bearing in the first place. Measure the available radial space (the difference between the housing bore and shaft diameter) to determine if a drawn cup, machined ring, or cageless assembly is the most suitable option.

4. Shaft and Housing Design

• Hardness and Surface Finish: If you plan to use a design without an inner ring, the shaft must be hardened (typically to 58 HRC or higher) and ground to a smooth finish to act as a suitable raceway. The same applies to the housing if a drawn cup bearing is not used.
• Alignment: Proper alignment between the shaft and housing is critical. Misalignment can cause uneven load distribution on the rollers, leading to dramatically reduced bearing life. Machined ring bearings offer better tolerance for slight misalignments than drawn cup types.

5. Lubrication and Sealing

Proper lubrication is the lifeblood of any bearing. It reduces friction, dissipates heat, prevents corrosion, and flushes away contaminants.

• Grease vs. Oil: Grease is common for moderate speeds and temperatures, as it is easier to retain within the bearing. Oil is preferred for high-speed or high-temperature applications due to its superior cooling properties.
• Seals and Shields: Many needle roller bearings are available with integrated seals (contact or non-contact) to retain lubricant and exclude contaminants like dust and moisture. This is critical for extending service life in harsh environments.

If you have a particularly complex application with unique environmental or load requirements, our team of experts is here to assist. We can help you navigate the specifications of over 2.5 million U.S.-made products to find the perfect fit. If you have specific sourcing questions, our team is ready to help.

Strengthening Your Supply Chain: The Maden.co Advantage

In today's volatile global landscape, the conversation around components like needle roller bearings has expanded beyond technical specifications. It's now fundamentally linked to supply chain strategy, risk management, and Total Cost of Ownership (TCO). Sourcing from overseas may sometimes offer a lower initial price, but it often comes with hidden costs: long lead times, customs delays, quality control issues, and a lack of transparency.

This is why we built Maden.co. Our mission is to democratize access to American manufacturing, making it just as easy and convenient to source a U.S.-made component as any global alternative. We believe that America's manufacturing revival is here, and we are dedicated to being the definitive platform that proves it. We achieve this by connecting industrial buyers with a network of over 800 verified U.S. manufacturers.

Our platform is built on several core values that directly benefit your procurement process:

• American Manufacturing Pride: We champion the quality, innovation, and reliability of products made right here in the United States. Every product on our platform is from a verified domestic manufacturer.
• Digital Innovation: We eliminate the friction of traditional industrial procurement. Our powerful search, detailed product pages, and streamlined checkout process save you valuable time.
• Supply Chain Transparency: Know where your parts are coming from. By sourcing domestically, you gain visibility and significantly reduce the risk of geopolitical disruptions, shipping crises, and tariff volatility. This resilience is a powerful competitive advantage.
• Industrial Excellence: We partner with manufacturers who adhere to the highest standards of quality and precision, ensuring the components you receive meet or exceed critical industry specifications like DIN and NPT.
• Customer Empowerment: We provide you with the tools and information to make informed decisions. From detailed spec sheets to direct access to a vast catalog, we empower you to build a more efficient and reliable procurement workflow.

For larger projects or urgent MRO needs that require significant capital outlay, managing cash flow is paramount. That's why we offer a strategic financial tool directly within our platform. You can apply for Instant Financing at checkout to streamline your capital-intensive projects, turning a large upfront cost into manageable payments. This empowers you to secure the high-quality American-made parts you need, when you need them, without disrupting your budget.

For U.S. manufacturers dedicated to quality and excellence, we invite you to join us in this mission. Are you a U.S. manufacturer? Register as a vendor and join the American manufacturing revival.

Conclusion: Sourcing Smarter for a Stronger Operation

The needle roller bearing is more than just a component; it's an enabling technology that allows for the creation of more powerful, compact, and efficient machinery. From its unique long-roller design to the diverse array of types available, it provides solutions to some of the most challenging engineering problems. A thorough understanding of its characteristics, applications, and selection criteria is essential for any professional involved in design, maintenance, or procurement.

However, knowing what to buy is only half the battle. Knowing how and where to buy it is what transforms a simple purchase into a strategic advantage. By prioritizing domestic sourcing through a dedicated B2B marketplace like Maden.co, you do more than just acquire a part. You invest in a shorter, more transparent supply chain. You mitigate risk, ensure quality, and support the industrial base that drives our national economy. You build resilience into your operations.

Don't let your next project be delayed by overseas shipping or questionable quality. Explore our extensive catalog of U.S.-made needle roller bearings and millions of other industrial components. Find the exact part you need from a verified American manufacturer and empower your business with a procurement process built for the modern era. And remember to leverage our Instant Financing option at checkout to make critical purchases work for your budget.

Frequently Asked Questions (FAQ)

What is the main difference between a needle roller bearing and a ball bearing?

The primary difference lies in the shape of the rolling elements and the resulting contact area. Ball bearings use spherical balls that create a small point of contact with the raceways, making them ideal for high speeds and handling both radial and axial loads. Needle roller bearings use long, thin cylinders that create a line of contact, allowing them to handle significantly higher radial loads within a much smaller space, but they are generally not suited for high axial loads or the same top speeds as ball bearings.

Can needle roller bearings handle axial loads?

Standard radial needle roller bearings are designed specifically for radial loads and can tolerate very little, if any, axial (thrust) load. If an application involves axial forces, you must use a dedicated thrust needle roller bearing or a combined bearing that integrates both radial and thrust elements into a single unit. Attempting to subject a radial needle bearing to significant thrust loads will lead to rapid failure.

Why is lubrication so important for needle roller bearings?

Lubrication is critical for all bearings, but especially for needle roller bearings due to the high contact pressures along the line of contact. A proper lubricant (grease or oil) creates a micro-thin film that separates the rollers from the raceways, preventing metal-to-metal contact. This film reduces friction and wear, dissipates heat generated during operation, protects against corrosion, and helps to flush out any potential contaminants, all of which are essential for achieving the bearing's calculated service life.
