What Is a Pillow Block Bearing? A Guide for U.S. Industry

Table of Contents

1. Introduction
2. Deconstructing the Pillow Block Bearing: Anatomy and Function
3. Types of Pillow Block Bearings: Matching the Component to the Application
4. Critical Selection Criteria for Procurement and Engineering
5. The Maden.co Advantage: Sourcing American-Made Pillow Block Bearings
6. Installation and Maintenance Best Practices
7. Conclusion
8. Frequently Asked Questions (FAQ)

Introduction

An entire production line grinds to a halt. The silence is deafening, broken only by the frantic calls of a line supervisor. Every minute of downtime costs thousands in lost productivity and delayed shipments. The culprit? A single, seized bearing on a critical conveyor system—a component worth less than a hundred dollars. For any procurement manager, MRO buyer, or design engineer, this scenario is more than a hypothetical problem; it's a recurring nightmare. The subsequent challenge is often just as daunting: navigating complex catalogs and uncertain supply chains to find a reliable, correctly specified replacement part, and find it now.

This is where understanding the fundamentals of industrial components becomes a strategic advantage. The pillow block bearing, a cornerstone of mechanical power transmission, is one such component. This article will provide an in-depth exploration of pillow block bearings, moving beyond a simple definition to deliver actionable insights. We will deconstruct their anatomy, explore the critical differences between types, establish clear selection criteria for industrial applications, and discuss best practices for installation and maintenance.

Our goal is to empower you with the knowledge to not only solve immediate maintenance issues but also to make smarter procurement decisions that enhance long-term operational reliability. At Maden.co, we believe that sourcing the right American-made component should be straightforward and efficient. This guide is a reflection of that commitment—a resource designed to help you build more resilient, productive, and proudly American operations.

Deconstructing the Pillow Block Bearing: Anatomy and Function

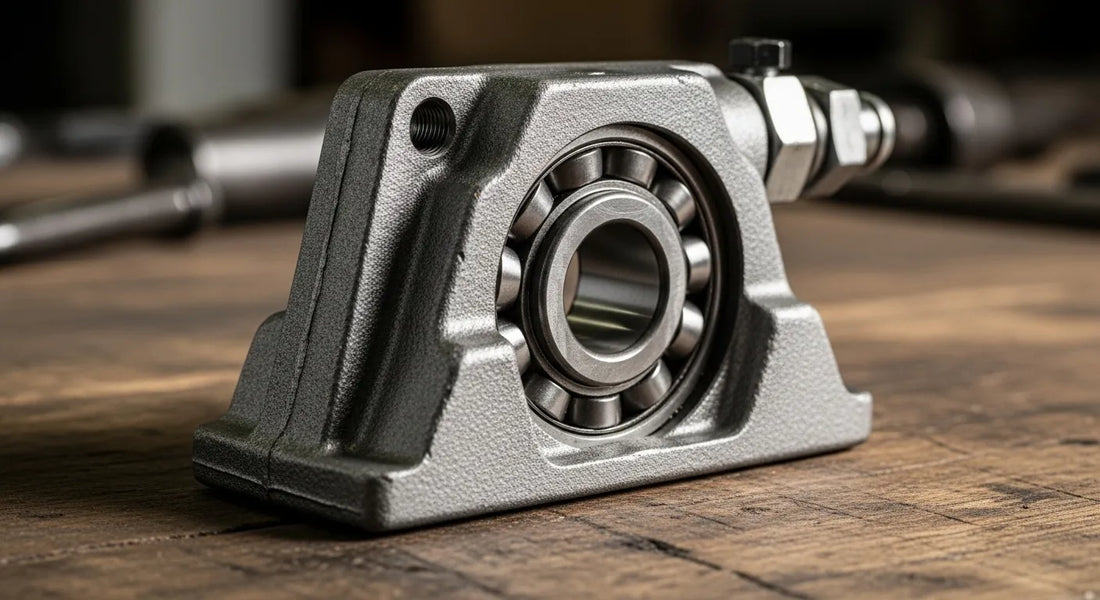

At its core, a pillow block bearing, also known as a plummer block, is a mounted bearing unit. It is designed to provide load support for a rotating shaft whose axis is parallel to the mounting surface. Unlike individual bearings that must be pressed into a custom-machined housing, pillow blocks are self-contained units that simplify design and installation, making them ubiquitous in everything from conveyor systems and agricultural machinery to HVAC units and industrial fans.

The Two Key Components

Every pillow block bearing consists of two primary elements working in concert: the housing and the bearing insert. The synergy between these two parts defines the unit's capabilities, durability, and suitability for a given application.

The Housing (The "Pillow Block")

The housing is the robust outer casing that encases the bearing and bolts to the mounting surface. It is the foundation of the unit, providing stability and protection. The material and design of the housing are critical factors in its performance.

• Materials:
  • Cast Iron: The most common material, offering excellent strength, rigidity, and vibration damping at a cost-effective price point. It's the go-to choice for the majority of general industrial applications.
  • Ductile Iron: Offers higher impact strength and tensile strength than standard cast iron, making it suitable for applications with heavier shock loads.
  • Pressed Steel: Lighter and more economical than cast iron, these housings are often used in light-duty applications where weight is a concern.
  • Thermoplastic: Ideal for food processing, pharmaceutical, and chemical industries. These housings offer superior corrosion resistance and are easy to clean, but typically have lower load and temperature ratings.
  • Stainless Steel: Provides the ultimate in corrosion and chemical resistance, essential for harsh washdown environments or sterile applications.
• Design: Solid vs. Split Housings
  • Solid (Unsplit) Housings: These are single-piece units. They are strong and inherently rigid but require the shaft to be slid through the bearing for installation. This means that replacement often involves disassembling a significant portion of the machine.
  • Split Housings: As the name implies, these housings are made in two pieces (a cap and a base) that are bolted together around the bearing insert. This design is a game-changer for maintenance, repair, and operations. It allows the bearing to be inspected, serviced, or replaced without having to remove the shaft, drastically reducing downtime and labor costs.

The Insert Bearing

Housed within the pillow block is the bearing insert, the component that does the actual work of facilitating rotation. It consists of an inner ring that fits onto the shaft, an outer ring that mates with the housing, and a series of rolling elements (balls or rollers) in between.

• Bearing Type:
  • Ball Bearings: The most common type, excellent for handling radial loads at high speeds with low friction.
  • Spherical Roller Bearings: Designed for the most demanding applications, these bearings can accommodate very heavy radial loads, moderate axial loads, and significant shaft misalignment.
  • Tapered Roller Bearings: Capable of handling large radial and axial loads in one direction, often mounted in pairs.
• Locking Mechanism: This is how the inner ring of the bearing is secured to the shaft to prevent slippage.
  • Set Screw: The most common and simplest method. Two set screws in the extended inner ring are tightened against the shaft.
  • Eccentric Locking Collar: A collar with an offset groove mates with an eccentric extension on the bearing's inner ring. Rotating the collar in the direction of shaft rotation tightens it securely.
  • Concentric Locking Collar: Provides a more uniform, 360-degree grip on the shaft, reducing vibration and ideal for high-speed applications.
  • Adapter Sleeve: Offers the most secure and concentric fit, using a tapered sleeve that is tightened with a locknut to clamp down on the shaft.

How It Works: The Principles of Operation

The genius of the pillow block bearing lies in its integrated design and self-alignment capability. The unit is bolted to a stable, flat surface. The shaft is passed through the bearing inserts. A crucial feature is the spherical outer surface of the bearing insert, which fits into a matching spherical inner surface of the housing. This allows the insert to pivot within the housing, automatically compensating for initial errors in mounting alignment or shaft deflection during operation. This self-alignment capability prevents premature wear and bearing failure, extending the service life of both the bearing and the machinery it supports.

Types of Pillow Block Bearings: Matching the Component to the Application

Not all pillow block bearings are created equal. Choosing the correct type is paramount for ensuring operational efficiency and longevity. The selection process involves carefully considering the housing construction, the type of bearing insert, and the specific demands of the environment.

Based on Housing Construction

As mentioned, the most significant design differentiator in housings is whether they are solid or split. This choice has profound implications for MRO teams.

Solid (Unsplit) Pillow Blocks

These one-piece housings are known for their inherent strength and rigidity. They are often specified by OEMs in new equipment where the assembly process allows for the shaft to be easily installed from one end. For MRO buyers, however, replacing a solid pillow block located in the middle of a long shaft can be a labor-intensive task, requiring extensive disassembly that leads to prolonged downtime.

Split Pillow Blocks

For maintenance and repair, split pillow block bearings are the superior choice. Their two-piece housing construction is a design focused squarely on efficiency and reducing the Total Cost of Ownership (TCO).

Real-World Scenario: An MRO manager at a distribution center gets a call: the main sorting conveyor is down. A bearing failure mid-system is the suspected cause. With a solid housing, the repair would mean hours of work, uncoupling drive motors, and pulling the entire shaft. With a split roller style pillow block bearing, the maintenance team can simply unbolt the cap of the old housing, lift the shaft slightly, replace the two halves of the bearing and housing, and be back in operation in a fraction of the time. This is a direct, measurable improvement in operational uptime.

Based on Bearing Insert Type

The choice of rolling element inside the bearing dictates its load-carrying capacity and speed capabilities.

Ball Bearing Inserts

These are the workhorses of the pillow block world. Using steel balls as the rolling elements, they are perfect for applications with high rotational speeds and primarily radial loads. They are versatile, widely available, and suitable for a vast range of machinery, from HVAC fans to light-duty conveyor belts.

Roller Bearing Inserts (Spherical, Cylindrical, Tapered)

When the application involves heavy loads, shock, or significant stress, roller bearings are the answer. Instead of the point contact of a ball bearing, rollers provide line contact, distributing the load over a much larger area.

• Spherical Roller Bearings: These are the champions of heavy industry. They can handle extreme radial loads, moderate axial loads, and tolerate more misalignment than any other bearing type.
• Cylindrical and Tapered Roller Bearings: These are also designed for high load capacities and are often found in gearboxes, mining equipment, and large industrial machinery.

Real-World Scenario: A design engineer is working on a new piece of forestry equipment. The main rotor shaft will be subjected to immense, unpredictable radial loads and constant vibration. A standard ball bearing unit would fail quickly. The engineer needs a solution that combines extreme durability with serviceability in the field. Sourcing a U.S.-made, heavy-duty split roller pillow block bearing from a verified manufacturer provides the necessary load capacity and the maintenance advantages of a split design, ensuring the machine's reliability in harsh conditions.

Critical Selection Criteria for Procurement and Engineering

Specifying the correct pillow block bearing requires a systematic approach. Procurement managers and engineers must consider a range of factors to ensure the selected component meets the application's demands without being over-engineered or, worse, under-engineered.

1. Load and Speed Requirements

• Load Type and Magnitude: First, identify the loads the bearing will encounter. Is the load primarily radial (perpendicular to the shaft) or axial (parallel to the shaft)? Will it experience constant dynamic loads while in motion or heavy static loads while stationary? Quantify these loads to select a bearing with an adequate load rating.
• Speed (RPM): Every bearing has a maximum speed rating. Exceeding this can lead to overheating and catastrophic failure. Ensure the bearing's RPM limit is well above the shaft's normal operating speed.

2. Shaft Size and Mounting

• Bore Diameter: This is non-negotiable. The inner diameter of the bearing insert must precisely match the outer diameter of the shaft for a secure fit.
• Mounting Dimensions: When replacing an existing unit, check the dimensions of the housing: bolt-hole spacing (center-to-center), bolt-hole size, and the distance from the mounting base to the shaft centerline. These must match to ensure a drop-in replacement.

3. Environmental and Operating Conditions

• Temperature: Will the bearing operate in extreme heat (e.g., near an oven) or cold (e.g., in refrigerated facilities)? High temperatures can degrade lubricants and cause thermal expansion, requiring special high-temperature grease and potentially increased internal clearance.
• Contamination: This is a leading cause of premature bearing failure. Consider the presence of dust, dirt, moisture, or corrosive chemicals. The bearing's sealing mechanism—such as contact seals, non-contact shields, or multi-lip labyrinth seals—must be robust enough to protect the internal components.
• Vibration and Shock: Applications with high levels of vibration or shock loads, such as rock crushers or shaker screens, require bearings with higher load ratings and durable ductile or cast iron housings.

The Maden.co Advantage: Sourcing American-Made Pillow Block Bearings

Understanding the technical specifications of a pillow block bearing is only half the battle. Sourcing that component reliably, quickly, and from a trusted manufacturer is where operational theory meets supply chain reality. This is the challenge our platform was built to solve. Our mission to democratize access to American manufacturing is about more than just patriotism; it's about building a more resilient and efficient industrial backbone for our country. You can learn more about our mission to champion American manufacturing here.

Strengthening Your Supply Chain with U.S. Manufacturing

In recent years, the fragility of global supply chains has been laid bare. Sourcing critical components from domestic manufacturers isn't just a preference; it's a powerful business strategy. It reduces lead times, insulates your operations from international shipping delays and geopolitical turmoil, and ensures a higher level of quality control and material traceability. When you source from Maden.co, you are directly investing in this more secure and reliable industrial ecosystem.

The Power of a Verified Network

We connect industrial buyers with over 2.5 million American-made products from our network of over 800 verified U.S. manufacturers. This verification process is key. It means that when you are searching for a specific component, like a Craft Split Pillow Block Roller Bearing, you can be confident that it is genuinely manufactured in the United States to exacting standards. This commitment to transparency and industrial excellence removes the guesswork from procurement.

Reducing Procurement Friction with Digital Innovation

Our platform is designed to mirror the efficiency of the components we sell. With detailed technical specifications, downloadable CAD models, and powerful search filters, you can find the exact part you need in minutes, not hours. We also understand that managing capital is crucial for businesses of all sizes. That's why we offer a key differentiator: Instant Financing. This is more than just a payment option; it's a strategic tool. For a project manager needing to procure dozens of bearing units for a new conveyor installation, this feature is invaluable. You can apply for Instant Financing at checkout to streamline your capital-intensive projects, getting the parts you need immediately without disrupting cash flow.

Empowering American Manufacturers

America's manufacturing revival is here, and it's powered by the skilled men and women in factories across the country. Our platform provides these manufacturers with a direct channel to the industrial buyers who need their products. We are proud to be a catalyst for this growth. If you are a U.S. manufacturer producing high-quality industrial components, we invite you to be part of this movement. Register as a vendor and join the American manufacturing revival.

Installation and Maintenance Best Practices

Proper installation and proactive maintenance are essential for maximizing the life of any pillow block bearing.

Pre-Installation Checklist

• Handle with Care: Keep the new bearing in its original packaging until you are ready to install it to prevent contamination.
• Inspect the Shaft: Ensure the shaft is clean, smooth, and free of any burrs or nicks. Measure the shaft diameter to confirm it is within the specified tolerance.
• Clean the Mounting Surface: The machine base where the pillow block will sit must be clean, flat, and rigid.

Simplified Installation Steps

1. Lightly oil the shaft and slide the pillow block unit into position.
2. Position the housing on the mounting surface and install the mounting bolts, but do not fully tighten them yet.
3. Align the shaft both radially and axially.
4. Secure the bearing insert to the shaft using its locking mechanism (e.g., tighten the set screws).
5. Rotate the shaft by hand to ensure it turns smoothly without binding.
6. Finally, torque the housing mounting bolts to the manufacturer's recommended specification.

Common Causes of Failure and How to Prevent Them

• Contamination: The number one enemy of bearings. Ensure seals are intact and effective for the environment.
• Improper Lubrication: Both too little and too much grease can cause problems. Over-greasing can blow out seals and cause the bearing to overheat. Follow a regular relubrication schedule based on the manufacturer's guidelines for speed, load, and operating conditions.
• Misalignment: While pillow blocks are self-aligning, severe initial misalignment still puts excessive stress on the bearing. Get the initial setup as true as possible.
• Improper Installation: Overtightening set screws can distort the inner ring, and overtightening mounting bolts can warp the housing. Always use a torque wrench.

If you have specific sourcing questions or need help identifying the right component for a complex application, our team is ready to assist. Please do not hesitate to Contact Us for expert support.

Conclusion

The humble pillow block bearing is a testament to the idea that in the industrial world, the reliability of the entire system often depends on the quality of its smallest components. Understanding what these bearings are, how they function, and how to select the right one is a critical skill for any professional tasked with keeping machinery running. From the maintenance-saving design of a split housing to the load-bearing prowess of a spherical roller insert, the right choice can translate directly into increased uptime, lower maintenance costs, and improved productivity.

At Maden.co, we are dedicated to being more than just a marketplace. We are your strategic partner in building a more robust and resilient supply chain. We provide direct access to the heart of American manufacturing, empowering you to source high-quality, verified components with confidence and efficiency.

Stop letting component sourcing be a bottleneck for your operations. Explore our extensive catalog of American-made pillow block bearings today. Find the exact part you need, enhance your operational reliability, and leverage strategic tools like Instant Financing at checkout to keep your projects moving forward and your business thriving.

Frequently Asked Questions (FAQ)

Q1: What is the main difference between a pillow block and a flange bearing? A: The primary difference is the mounting surface. Pillow block bearings are designed to be mounted on a surface that is parallel to the axis of the rotating shaft. Flange bearings, which come in 2, 3, or 4-bolt configurations, are designed to be mounted on a surface that is perpendicular to the shaft's axis, such as a machine wall.

Q2: Can I use a pillow block bearing for a vertical shaft? A: It is generally not recommended to use standard pillow block bearings for vertical shaft applications. They are designed and lubricated to support horizontal shafts. For vertical orientations, flange-mounted units or other specialized bearing assemblies are the appropriate and safer choice to handle the thrust loads involved.

Q3: How do I know when a pillow block bearing needs to be replaced? A: The key warning signs of a failing bearing include a noticeable increase in operational noise (such as grinding, squealing, or rumbling), excessive vibration that can be felt on the housing, a significant rise in operating temperature, or visible damage like cracks in the housing or leaking grease from the seals. Implementing a proactive maintenance schedule is the best way to catch these issues early.

Q4: Why is sourcing U.S.-made pillow block bearings a better choice? A: Sourcing from verified U.S. manufacturers through a platform like ours provides several strategic advantages. It ensures superior material quality, adherence to strict manufacturing tolerances (e.g., DIN, NPT standards), and a transparent, shorter supply chain, which reduces lead times. Furthermore, it strengthens the domestic economy and provides greater resilience for your business against the volatility of global supply disruptions.
