American Heavy Duty Hoist Rings – Industrial Swivel Hoist Rings
Enhance lifting operations with our American Heavy Duty Hoist Rings – Industrial Swivel Hoist Rings. Robust, flexible, and safety-compliant for industrial use.
In stock
Roll over image to zoom in
About Product

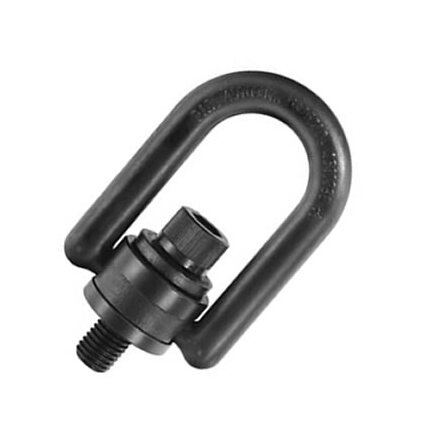

Upgrade your lifting operations with our American Heavy Duty Hoist Rings – Industrial Swivel Hoist Rings. Crafted from forged alloy steel with a minimum tensile strength of 180,000 psi, these rings pivot 180° and swivel 360°, providing flexibility and stability. Meets military specs, OSHA standards, and undergoes rigorous testing. Ideal for nuclear energy equipment and rated up to 5000 pounds.
Additional information
| Specifications G - Thread Size | |
|---|---|
| Specifications B - Base Height | |
| Specifications F - Height | |
| Specifications J - Base Width | |
| Specifications D - Diameter | |
| Specifications Material | |
| Specifications A - Radius | |
| Specifications Finish | |
| Specifications Pivot | |
| Specifications PS - Load Rated | |
| Specifications Swivel | |
| Specifications Torque | |
| Specifications Warning | |
| Specifications Weight |
Key Specifics
- Specifications
- G – Thread Size: 3/4-10
- B – Base Height: 1.50 in
- F – Height: 5.31 in
- I – Overall Width: 3.50 in
- J – Base Width: 1.89 in
- D – Diameter: 0.75 in
- Material: Forged Alloy
- A – Radius: 1.00 in
- Country of Origin: US
- E – Thread Length: 1.00 in
- Finish: Black Oxide
- H – Inside Clearance: 2.31 in
- Pivot: 180 º
- PS – Load Rated: 5000 Pounds (2268 kg)
- Safety Factor (Min.): 5:1
- Swivel: 360 º
- Torque: 100.00 lb·ft
- Warning: Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Weight: 1.89 lb
$149.99
