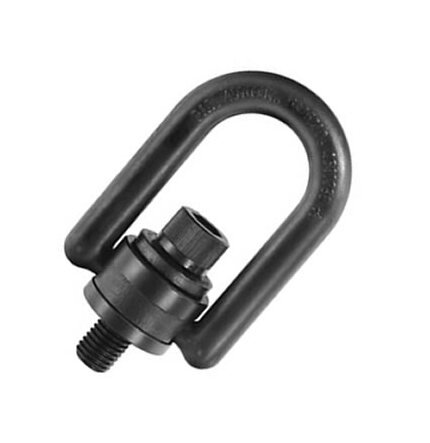

American Heavy Duty Swivel Hoist Rings – 30,000 lb Load Rated
Enhance lifting operations with our premium Heavy Duty Swivel Hoist Rings – 30,000 lb Load Rated. Ensured safety, reliability, and flexibility for industrial lifting tasks.
In stock
Roll over image to zoom in
About Product
Elevate your industrial lifting operations with our American Heavy Duty Swivel Hoist Rings. Designed with precision engineering, these swivel hoist rings pivot 180° and swivel 360°, providing ultimate flexibility. Crafted from forged alloy steel with a minimum tensile strength of 180,000 psi, these rings meet strict military specifications, OSHA standards, and undergo rigorous testing, ensuring safety and reliability. The 30,000-pound load rating makes them ideal for heavy-duty applications, including Nuclear Energy Equipment. Trust in our Magnetic Particle Inspected hoist rings for top-notch performance.
Additional information
| Specifications G - Thread Size | |
|---|---|
| Specifications B - Base Height | |
| Specifications F - Height | |
| Specifications J - Base Width | |
| Specifications D - Diameter | |
| Specifications Material | |
| Specifications A - Radius | |
| Specifications Finish | |
| Specifications Pivot | |
| Specifications PS - Load Rated | |
| Specifications Swivel | |
| Specifications Torque | |
| Specifications Warning | |
| Specifications Weight |
Key Specifics
- Specifications
- G – Thread Size: 2-4 1/2
- B – Base Height: 2.87 in
- F – Height: 9.22 in
- I – Overall Width: 6.75 in
- J – Base Width: 3.88 in
- D – Diameter: 1.25 in
- Material: Forged Alloy
- A – Radius: 2.00 in
- Country of Origin: US
- E – Thread Length: 2.96 in
- Finish: Black Oxide
- H – Inside Clearance: 3.49 in
- Pivot: 180 º
- PS – Load Rated: 30000 Pounds (13608 kg)
- Safety Factor (Min.): 5:1
- Swivel: 360 º
- Torque: 800.00 lb·ft
- Warning: Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Weight: 22.90 lb
$269.99
