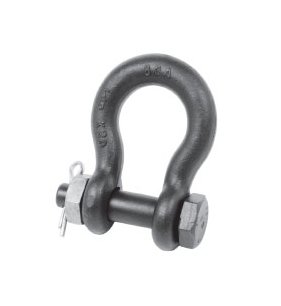

Heavy Duty Bolt Type Anchor Shackle
Enhance hoisting operations with our robust Heavy Duty Bolt Type Anchor Shackle.
In stock
About Product
Upgrade your industrial hoisting needs with our Heavy Duty Bolt Type Anchor Shackle. Engineered to meet strict standards, this shackle ensures reliable performance. With a minimum ultimate load of 6 times the working load limit, it provides unparalleled safety and durability. Made of high-quality carbon steel, this shackle features a thin head bolt, nut with cotter pin, and complies with Federal Specification RR-C 271D, Type IVA, Grade A, Class 3. The robust design includes a 6500-pound load rating, making it ideal for various heavy-duty applications. Trust in this anchor shackle for smooth and secure hoisting operations.
Additional information
| Specifications F - Height | |
|---|---|
| Specifications C - Ring Width | |
| Specifications M - Inside Width | |
| Specifications D - Diameter | |
| Specifications Material | |
| Specifications A - Radius | |
| Specifications PS - Load Rated | |
| Specifications r1 | |
| Specifications r2 | |
| Specifications Warning | |
| Specifications Weight |
Key Specifics
- Specifications
- F – Height: 4.19 in
- C – Ring Width: 2.94 in
- I – Overall Width: 3.53 in
- M – Inside Width: 1.06 in
- D – Diameter: 0.63 in
- R – Bolt Diameter: 0.75 in
- Material: Carbon Steel
- A – Radius: 0.85 in
- Country of Origin: US
- H – Inside Clearance: 2.38 in
- PS – Load Rated: 6500 Pounds (2948 kg)
- r1: 0.63 in
- r2: 1.50 in
- Warning: Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Weight: 1.68 lb
