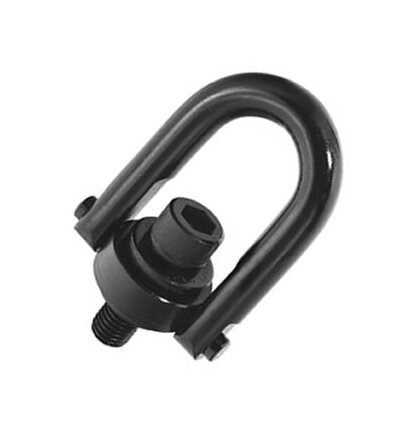

Heavy Duty Metric Swivel Hoist Ring – Industrial Grade Steel – 9921 lbs Load Rated – Black Oxide Finish
Enhance your lifting tasks with our Heavy Duty Metric Swivel Hoist Ring – 9921 lbs Load Rated – Precision Engineering
In stock
Roll over image to zoom in
About Product
Upgrade your lifting capabilities with our Heavy Duty Metric Swivel Hoist Ring. Engineered from 4140 Aircraft Quality High Strength Alloy Steel, this hoist ring ensures maximum safety with a certified heat treatment and corrosion-resistant coating. With a 5:1 safety factor and a load rating of 9921 pounds, this hoist ring offers unmatched durability and reliability. Its pivoting and swiveling capabilities make it versatile for various lifting applications. Trust in our industrial-grade hoist ring to meet your rigorous standards and elevate your workholding efficiency.
Additional information
| Specifications G - Thread Size | |
|---|---|
| Specifications B - Base Height | |
| Specifications F - Height | |
| Specifications C - Ring Width | |
| Specifications J - Base Width | |
| Specifications D - Diameter | |
| Specifications Material | |
| Specifications A - Radius | |
| Specifications Finish | |
| Specifications Pivot | |
| Specifications PS - Load Rated | |
| Specifications Swivel | |
| Specifications Torque | |
| Specifications Warning | |
| Specifications Weight |
Key Specifics
- Specifications
- G – Thread Size: M30x3.5
- B – Base Height: 43.40 mm
- F – Height: 165.80 mm
- C – Ring Width: 121.20 mm
- I – Overall Width: 130.50 mm
- J – Base Width: 58.70 mm
- D – Diameter: 25.40 mm
- Material: Steel
- A – Radius: 35.60 mm
- Country of Origin: US
- E – Thread Length: 54.00 mm
- Finish: Black Oxide
- H – Inside Clearance: 67.00 mm
- Pivot: 180 º
- PS – Load Rated: 9921 Pounds (4500 kg)
- Safety Factor (Min.): 5:1
- Swivel: 360 º
- Torque: 311.00 N·m
- Warning: Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Weight: 3.30 kg
$199.99
