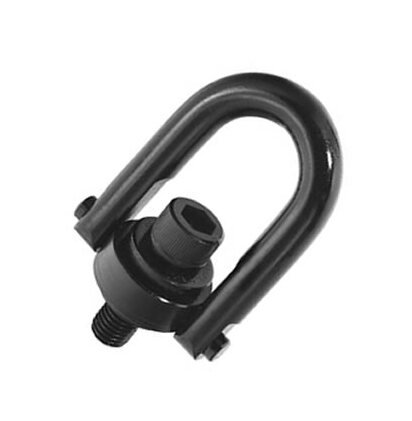

Heavy-Duty Swivel Hoist Ring – Inch
Enhance lifting operations with our durable Heavy-Duty Swivel Hoist Ring. 360° swivel, 180° pivot for precise lifts.
In stock
About Product
Upgrade your lifting operations with our Heavy-Duty Swivel Hoist Ring. Made from high-quality alloy steel with certified heat treatment and a black oxide finish, this safety-engineered hoist ring offers a superior 5:1 safety factor. With a 360° swivel and 180° pivot range, this hoist ring ensures flexibility and precision in various industrial applications. Easy to install and maintain, this hoist ring is designed for durability and reliability. Choose a trusted solution for your lifting needs with our Heavy-Duty Swivel Hoist Ring.
Additional information
| Specifications G - Thread Size | |
|---|---|
| Specifications B - Base Height | |
| Specifications F - Height | |
| Specifications C - Ring Width | |
| Specifications J - Base Width | |
| Specifications D - Diameter | |
| Specifications Material | |
| Specifications A - Radius | |
| Specifications Finish | |
| Specifications Pivot | |
| Specifications PS - Load Rated | |
| Specifications Rated Load | |
| Specifications Swivel |
Key Specifics
- Specifications
- G – Thread Size: 3/4-10
- B – Base Height: 1.71 in
- F – Height: 8.11 in
- Height Tolerance: ± 0.060 in
- C – Ring Width: 4.80 in
- I – Overall Width: 5.14 in
- Overall Width Tolerance: ± 0.060 in
- J – Base Width: 2.37 in
- D – Diameter: 1.00 in
- Material: Alloy Steel
- A – Radius: 1.40 in
- Country of Origin: US
- E – Thread Length: 1.54 in
- Finish: Black Oxide
- H – Inside Clearance: 4.65 in
- Pivot: 180 º
- PS – Load Rated: 7000 Pounds (3175 kg)
- Rated Load: 7000 lb
- Safety Factor (Min.): 5:1
- Swivel: 360 º
- Thread Length Tolerance: ± 0.060 in
- Torque: 100.00 lb·ft
- Warning: Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Weight: 6 lb. 10 oz
