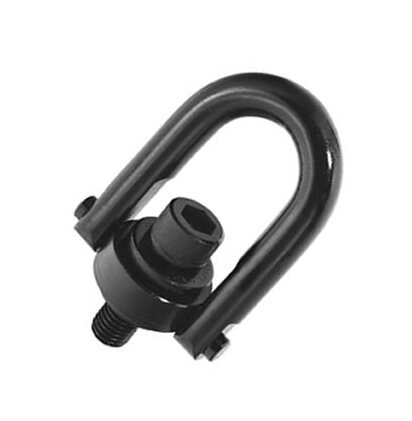

Heavy-Duty Swivel Hoist Ring – Inch
Enhance industrial lifting with our Heavy-Duty Swivel Hoist Ring. 7000 lb load, certified alloy steel, 360° swivel, and 180° pivot.
In stock
About Product
Upgrade your industrial lifting operations with our top-quality Heavy-Duty Swivel Hoist Ring. Crafted from certified heat-treated alloy steel with a black oxide finish, this safety-engineered hoist ring offers a 5:1 safety factor and 360° swivel/180° pivot for maximum versatility. With a rated load of 7000 lbs, it ensures secure lifting. The installation is hassle-free, and the product comes with a socket head cap screw. Invest in reliability and durability for your hoisting needs with our Heavy-Duty Swivel Hoist Ring.
Additional information
| Specifications G - Thread Size | |
|---|---|
| Specifications B - Base Height | |
| Specifications F - Height | |
| Specifications C - Ring Width | |
| Specifications J - Base Width | |
| Specifications D - Diameter | |
| Specifications Material | |
| Specifications A - Radius | |
| Specifications Finish | |
| Specifications Pivot | |
| Specifications PS - Load Rated | |
| Specifications Rated Load | |
| Specifications Swivel |
Key Specifics
- Specifications
- G – Thread Size: 3/4-10
- B – Base Height: 1.71 in
- F – Height: 6.52 in
- Height Tolerance: ± 0.060 in
- C – Ring Width: 4.80 in
- I – Overall Width: 5.14 in
- Overall Width Tolerance: ± 0.060 in
- J – Base Width: 2.37 in
- D – Diameter: 1.00 in
- Material: Alloy Steel
- A – Radius: 1.40 in
- Country of Origin: US
- E – Thread Length: 1.54 in
- Finish: Black Oxide
- H – Inside Clearance: 3.06 in
- Pivot: 180 º
- PS – Load Rated: 7000 Pounds (3175 kg)
- Rated Load: 7000 lb
- Safety Factor (Min.): 5:1
- Swivel: 360 º
- Thread Length Tolerance: ± 0.060 in
- Torque: 100.00 lb·ft
- Warning: Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Weight: 6 lb. 10 oz
