Heavy-Duty Swivel Hoist Ring – Inch
Enhance lifting tasks with our durable Heavy-Duty Swivel Hoist Ring, offering reliability and safety for industrial needs.
In stock
About Product

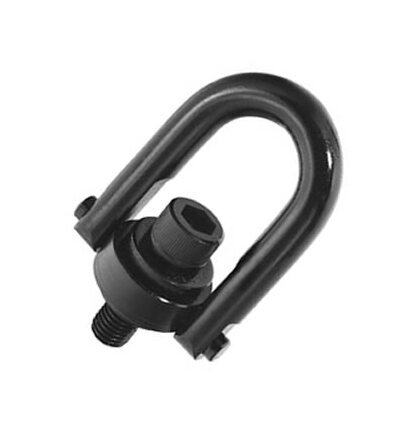

Upgrade your lifting operations with our Heavy-Duty Swivel Hoist Ring. Crafted from certified heat-treated alloy steel with a black oxide finish, this safety-engineered hoist ring ensures impeccable strength and durability. Enjoy a 360° swivel and 180° pivot range, rated load of 10,000 lbs, and easy installation. Maintain safety standards with a 5:1 safety factor and re-tighten mounting screws for prolonged use. Available in various sizes and finishes, get your hands on a reliable hoist ring built for industrial demands.
Additional information
| Specifications G - Thread Size | |
|---|---|
| Specifications B - Base Height | |
| Specifications F - Height | |
| Specifications C - Ring Width | |
| Specifications J - Base Width | |
| Specifications D - Diameter | |
| Specifications Material | |
| Specifications A - Radius | |
| Specifications Finish | |
| Specifications Pivot | |
| Specifications PS - Load Rated | |
| Specifications Rated Load | |
| Specifications Swivel |
Key Specifics
- Specifications
- G – Thread Size: 1-8
- B – Base Height: 1.71 in
- F – Height: 8.11 in
- Height Tolerance: ± 0.060 in
- C – Ring Width: 4.80 in
- I – Overall Width: 5.14 in
- Overall Width Tolerance: ± 0.060 in
- J – Base Width: 2.37 in
- D – Diameter: 1.00 in
- Material: Alloy Steel
- A – Radius: 1.40 in
- Country of Origin: US
- E – Thread Length: 2.29 in
- Finish: Black Oxide
- H – Inside Clearance: 4.40 in
- Pivot: 180 º
- PS – Load Rated: 10000 Pounds (4536 kg)
- Rated Load: 10000 lb
- Safety Factor (Min.): 5:1
- Swivel: 360 º
- Thread Length Tolerance: ± 0.060 in
- Torque: 230.00 lb·ft
- Warning: Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Weight: 7.00 lb
$200.00
