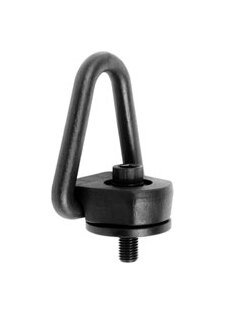

Industrial Swivel Hoist Ring – Heavy Duty Metric
Premium alloy steel Industrial Swivel Hoist Ring with 360° rotation, 90° pivot, and 882 lbs max load.
In stock
About Product
Experience top-tier industrial lifting performance with our Heavy Duty Side Pull Hoist Ring. Crafted from premium alloy steel with a black oxide finish, this hoist ring boasts a 360° swivel that self-aligns with the load for maximum safety and efficiency. With a pivot angle of 90° and a torque of 9.50 N·m, this hoist ring offers unmatched reliability, suitable for loads up to 882 pounds. Say goodbye to lost parts with its one-piece design and trust in its 100% magnetic particle inspection. Elevate your lifting operations with this reliable and durable hoist ring.
Additional information
| Specifications G - Thread Size | |
|---|---|
| Specifications B - Base Height | |
| Specifications F - Height | |
| Specifications J - Base Width | |
| Specifications D - Diameter | |
| Specifications Material | |
| Specifications A - Radius | |
| Specifications Finish | |
| Specifications Pivot | |
| Specifications PS - Load Rated | |
| Specifications Swivel | |
| Specifications Torque | |
| Specifications Warning | |
| Specifications Weight |
Key Specifics
- Specifications
- G – Thread Size: M8x1.25
- B – Base Height: 34.00 mm
- F – Height: 120.00 mm
- I – Overall Width: 99.00 mm
- J – Base Width: 56.00 mm
- D – Diameter: 13.00 mm
- Material: Alloy Steel
- A – Radius: 19.00 mm
- E – Thread Length: 14.00 mm
- Finish: Black Oxide
- H – Inside Clearance: 73.00 mm
- H1 – Inside Clearance: 81.00 mm
- Pivot: 90 º
- PS – Load Rated: 882 Pounds (400 kg)
- Swivel: 360 º
- Torque: 9.50 N·m
- V – Center Line 1: 32.00 mm
- W – Center Line 2: 130.00 mm
- Warning: Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Weight: 0.93 kg
$89.99
