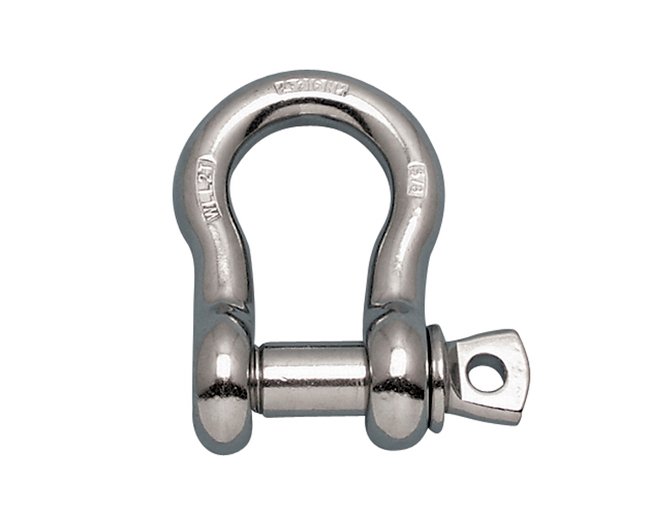

Marine Grade Stainless Steel Anchor Shackle
Durable Marine Grade Stainless Steel Anchor Shackle, perfect for saltwater use, meeting I/W/A Fed Spec RR-C-271 standards.
US
In stock
Roll over image to zoom in
About Product
Elevate your anchoring setup with our Marine Grade Stainless Steel Anchor Shackle. Crafted from 316-NM stainless steel with an oversized screw pin, this shackle is built to withstand saltwater conditions. Perfect for connecting your anchor to the chain, it meets I/W/A Fed Spec RR-C-271 standards. With a working load limit of 650 lb and Suncor’s quality assurance, this drop-forged shackle ensures durability and reliability for marine applications.
Additional information
| Specifications Brands | |
|---|---|
| Specifications Material | |
| Specifications Dimension "A" | |
| Specifications Dimension B | |
| Specifications Dimension C | |
| Specifications Dimension D | |
| Specifications Dimension E | |
| Specifications Dimension X | |
| Specifications Dimension Y | |
| Specifications Dimension Z | |
| Specifications Load Rated | |
| Specifications Made In | |
| Specifications Mil. Spec | |
| Specifications Specification | ASME B30.26-2010, Class 2, Fed. Spec. RR-C-271, MIL-DTL-32655, Type IVA |
| Specifications Weight |
Key Specifics
- Specifications
- Brands: Suncor
- Material: 316-NM Stainless Steel
- Dimension A: 3/16 in
- Dimension B: 0.26 in
- Dimension C: 0.41 in
- Dimension D: 0.83 in
- Dimension E: 0.61 in
- Dimension X: 1.25 in
- Dimension Y: 1.43 in
- Dimension Z: 0.53 in
- Fabrication Type: Drop Forged
- Load Rated: Yes
- Made In: Import
- Mil. Spec: Yes
- Specification: ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
- Suncor Exclusive: Yes
- Weight: 0.06 lb
- Working Load Limit (WLL): 650 lb
