Marine Grade Stainless Steel Bolt Anchor Shackle
Secure your marine anchors with our premium stainless steel bolt shackle. Ideal for saltwater use with 3000 lb load limit.
US
In stock
About Product

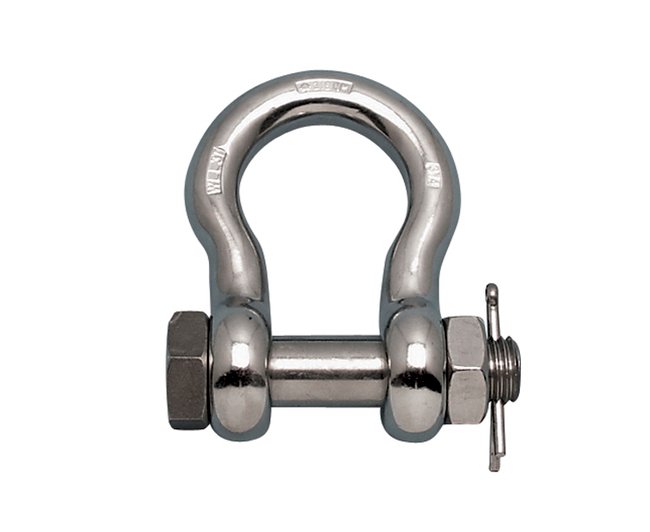

Experience unparalleled durability with our Marine Grade Stainless Steel Bolt Anchor Shackle. Crafted from high-quality 316-NM stainless steel, this shackle boasts an oversize bolt design, making it perfect for saltwater conditions. It serves as a reliable connection between the anchor and chain, ensuring secure and safe operations. With a working load limit of 3000 lb, this drop-forged shackle meets stringent industry specifications like ASME B30.26-2010 and MIL-DTL-32655. Trust in the Suncor brand for top-tier quality and performance in marine applications.
Additional information
| Specifications Brands | |
|---|---|
| Specifications Material | |
| Specifications Dimension "A" | |
| Specifications Dimension B | |
| Specifications Dimension C | |
| Specifications Dimension D | |
| Specifications Dimension E | |
| Specifications Dimension X | |
| Specifications Dimension Y | |
| Specifications Dimension Z | |
| Specifications Load Rated | |
| Specifications Made In | |
| Specifications Mil. Spec | |
| Specifications Specification | ASME B30.26-2010, Class 3, Fed. Spec. RR-C-271, MIL-DTL-32655, Type IVA |
| Specifications Weight |
Key Specifics

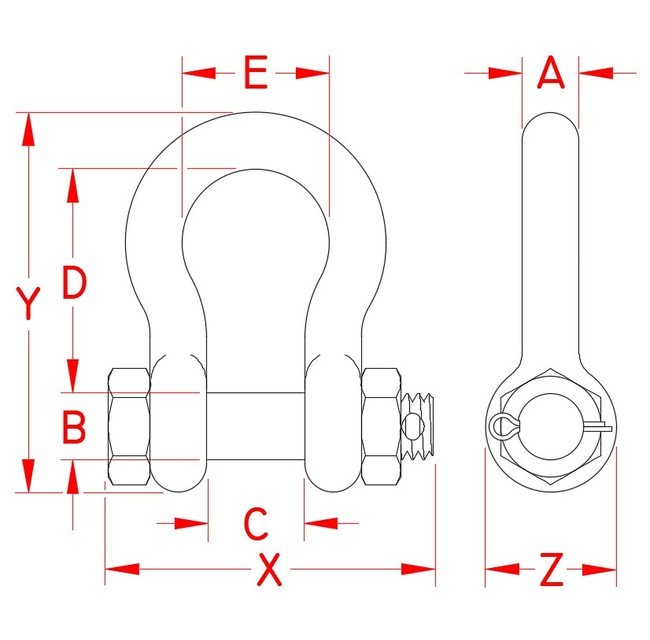

- Specifications
- Brands: Suncor
- Material: 316-NM Stainless Steel
- Dimension A: 1/2 in
- Dimension B: 0.63 in
- Dimension C: 0.82 in
- Dimension D: 1.83 in
- Dimension E: 1.20 in
- Dimension X: 2.86 in
- Dimension Y: 3.21 in
- Dimension Z: 1.16 in
- Fabrication Type: Drop Forged
- Load Rated: Yes
- Made In: Import
- Mil. Spec: Yes
- Specification: ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
- Suncor Exclusive: Yes
- Weight: 0.76 lb
- Working Load Limit (WLL): 3000 lb
