Marine-Grade Stainless Steel Bolt Chain Shackle
Premium 316-NM stainless steel Bolt Chain Shackle for industrial and marine use. Oversized bolt, made for durability with an 8,000 lb working load limit.
US
In stock
About Product
Introducing the Marine-Grade Stainless Steel Bolt Chain Shackle, crafted from premium 316-NM stainless steel to ensure unparalleled corrosion resistance. This shackle boasts an oversized bolt and is meticulously drop-forged for superior strength. Ideal for industrial and marine use, it complies with stringent specifications and offers a substantial working load limit of 8,000 lb. Trust in its durability and Suncor exclusive quality for your heavy-duty applications.
Additional information
| Specifications Brands | |
|---|---|
| Specifications Material | |
| Specifications Dimension "A" | |
| Specifications Dimension B | |
| Specifications Dimension C | |
| Specifications Dimension D | |
| Specifications Dimension X | |
| Specifications Dimension Y | |
| Specifications Dimension Z | |
| Specifications Load Rated | |
| Specifications Made In | |
| Specifications Mil. Spec | |
| Specifications Specification | ASME B30.26-2010, Class 3, Fed. Spec. RR-C-271, MIL-DTL-32655, Type IVB |
| Specifications Weight |
Key Specifics
- Specifications
- Brands: Suncor
- Material: 316-NM Stainless Steel

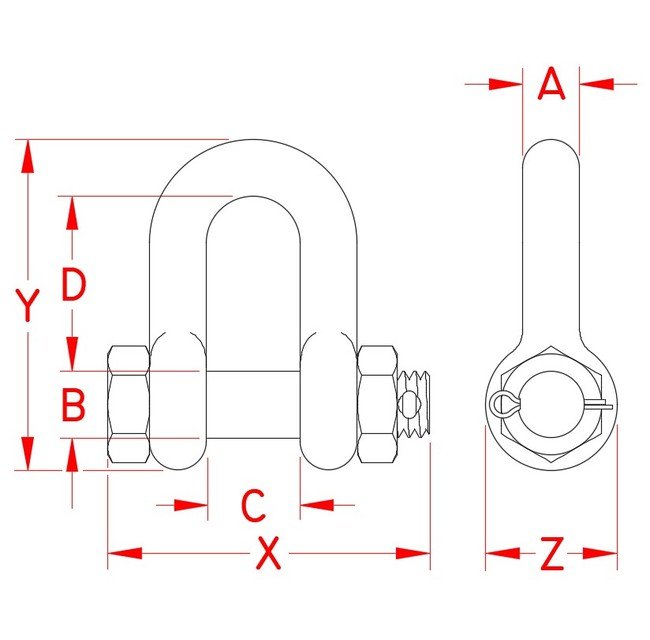

- Dimension A: 7/8 in
- Dimension B: 1.01 in
- Dimension C: 1.45 in
- Dimension D: 2.88 in
- Dimension X: 4.84 in
- Dimension Y: 5.25 in
- Dimension Z: 1.94 in
- Fabrication Type: Drop Forged
- Load Rated: Yes
- Made In: Import
- Mil. Spec: Yes
- Specification: ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB
- Suncor Exclusive: Yes
- Weight: 3.41 lb
- Working Load Limit (WLL): 8,000 lb
