Marine Grade Stainless Steel Oversize Screw Pin Anchor Shackle
Premium marine stainless steel anchor shackle for saltwater use, with a 10,000 lb working load limit & ASME compliance.
US
In stock
Roll over image to zoom in
About Product
Upgrade your marine equipment with our marine grade stainless steel oversize screw pin anchor shackle. Crafted from premium grade 316-NM stainless steel, this anchor shackle is built to withstand saltwater conditions with exceptional durability. Perfect for connecting your anchor to the chain seamlessly, this shackle adheres to ASME and Mil. Specs ensuring reliability and safety. With a working load limit of 10,000 lb, our drop forged anchor shackle is a Suncor exclusive offering unrivaled strength and corrosion resistance.
Additional information
| Specifications Brands | |
|---|---|
| Specifications Material | |
| Specifications Dimension "A" | |
| Specifications Dimension B | |
| Specifications Dimension C | |
| Specifications Dimension D | |
| Specifications Dimension E | |
| Specifications Dimension X | |
| Specifications Dimension Y | |
| Specifications Dimension Z | |
| Specifications Load Rated | |
| Specifications Made In | |
| Specifications Mil. Spec | |
| Specifications Specification | ASME B30.26-2010, Class 2, Fed. Spec. RR-C-271, MIL-DTL-32655, Type IVA |
| Specifications Weight |
Key Specifics
- Specifications
- Brands: Suncor
- Material: 316-NM Stainless Steel

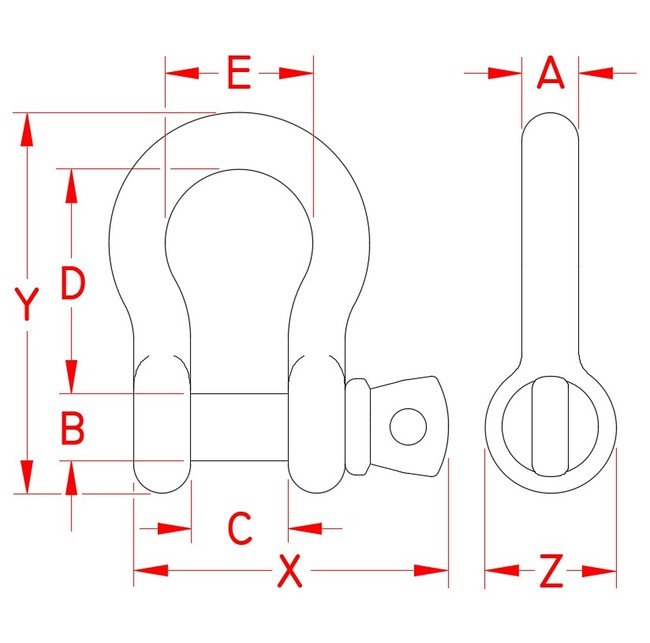

- Dimension A: 1 in
- Dimension B: 1.13 in
- Dimension C: 1.70 in
- Dimension D: 3.80 in
- Dimension E: 2.60 in
- Dimension X: 5.35 in
- Dimension Y: 6.44 in
- Dimension Z: 2.20 in
- Fabrication Type: Drop Forged
- Load Rated: Yes
- Made In: Import
- Mil. Spec: Yes
- Specification: ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
- Suncor Exclusive: Yes
- Weight: 4.62 lb
- Working Load Limit (WLL): 10,000 lb
