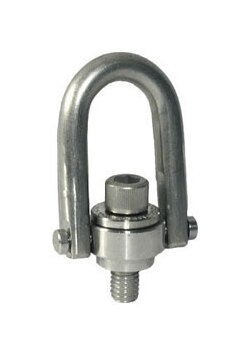

Metric Stainless Steel Safety Hoist Ring
Enhance industrial lifting with our Metric Stainless Steel Safety Hoist Ring. 5:1 safety factor, 360° swivel, 180° pivot, ASTM-tested, ideal for corrosive environments.
In stock
About Product
Elevate your industrial lifting operations with our meticulously crafted Metric Stainless Steel Safety Hoist Ring. Engineered for durability and reliability, this hoist ring offers a 5:1 safety factor, a full 360° swivel, and 180° pivot capabilities. Made from 300 Series Stainless Steel, it is ideal for corrosive, cryogenic, or high-temperature environments. Rigorously tested and compliant with ASTM standards, this hoist ring ensures secure and efficient lifting in various applications.
Additional information
| Specifications G - Thread Size | |
|---|---|
| Specifications B - Base Height | |
| Specifications F - Height | |
| Specifications C - Ring Width | |
| Specifications D - Diameter | |
| Specifications Material | |
| Specifications A - Radius | |
| Specifications Finish | |
| Specifications J | |
| Specifications Pivot | |
| Specifications PS - Load Rated | |
| Specifications Swivel | |
| Specifications Torque | |
| Specifications Warning | |
| Specifications Weight |
Key Specifics
- Specifications
- G – Thread Size: M48x5
- B – Base Height: 71.40 mm
- F – Height: 316.70 mm
- C – Ring Width: 203.20 mm
- I – Overall Width: 217.20 mm
- D – Diameter: 44.50 mm
- Material: 300 Stainless Steel
- A – Radius: 57.20 mm
- Country of Origin: US
- E – Thread Length: 79.00 mm
- Finish: Stainless Steel
- H – Inside Clearance: 152.80 mm
- J: 106.70 mm
- Pivot: 180 º
- PS – Load Rated: 15983 Pounds (7250 kg)
- Safety Factor (Min.): 5:1
- Swivel: 360 º
- Torque: 542.70 N·m
- Warning: Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Weight: 16.36 kg
