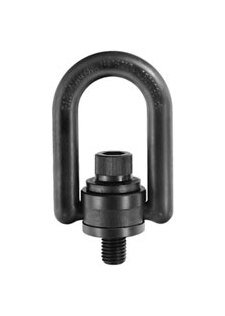

Premium Metric Swivel Hoist Rings
SKU
HOI-29c8f6
Category Heavy Duty Hoist Rings - Metric
Brand: OneMonroe Monroe Engineering Products
Enhance lifting operations with our durable Metric Swivel Hoist Rings – perfect for safety and efficiency.
In stock
Roll over image to zoom in
About Product
Upgrade your industrial lifting operations with our premium metric swivel hoist rings. Engineered from forged alloy steel with a minimum tensile strength of 180,000 psi, these heavy-duty hoist rings offer exceptional durability and safety. Featuring a 5:1 safety factor, 360º swivel capability, and a corrosion-resistant black oxide finish, our hoist rings ensure reliable performance and longevity. Suitable for various applications, these metric hoist rings come with a load rating of 2315 pounds (1050 kg) and are designed for efficiency and precision. Elevate your lifting solutions with our top-of-the-line swivel hoist rings.
Additional information
| Specifications G - Thread Size | |
|---|---|
| Specifications B - Base Height | |
| Specifications F - Height | |
| Specifications C - Ring Width | |
| Specifications J - Base Width | |
| Specifications D - Diameter | |
| Specifications Material | |
| Specifications A - Radius | |
| Specifications Finish | |
| Specifications Pivot | |
| Specifications PS - Load Rated | |
| Specifications Swivel | |
| Specifications Torque | |
| Specifications Warning | |
| Specifications Weight |
Key Specifics
- Specifications
- G – Thread Size: M12x1.75
- B – Base Height: 38.10 mm
- F – Height: 134.90 mm
- C – Ring Width: 88.90 mm
- J – Base Width: 48.00 mm
- D – Diameter: 19.10 mm
- Material: Forged Alloy
- A – Radius: 25.40 mm
- Country of Origin: US
- E – Thread Length: 32.00 mm
- Finish: Black Oxide
- H – Inside Clearance: 65.00 mm
- Pivot: 180 º
- PS – Load Rated: 2315 Pounds (1050 kg)
- Safety Factor (Min.): 5:1
- Swivel: 360 º
- Torque: 37.00 N·m
- Warning: Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Weight: 0.83 kg
$89.99
