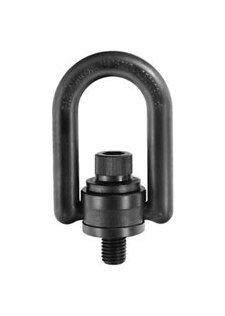

Premium Metric Swivel Hoist Rings
Upgrade to premium metric swivel hoist rings for ultimate industrial lifting performance. Made with forged alloy steel and 5:1 safety factor.
In stock
About Product
Upgrade your industrial lifting equipment with our premium metric swivel hoist rings. Engineered to the highest standards, these heavy-duty hoist rings offer a variety of styles including flip flop, safety engineered, shackle, and more. Crafted from forged alloy steel with a minimum tensile strength of 180,000 psi, certified heat treatment, and corrosion-resistant coating. Designed with a 5:1 safety factor, these hoist rings provide exceptional durability and reliability. With a 360º swivel and 180º pivot, these rings ensure versatile lifting capabilities. Choose quality and performance with our long bar models suitable for 3,000 – 4,500 kg hoist rings. Made in the USA.
Additional information
| Specifications G - Thread Size | |
|---|---|
| Specifications B - Base Height | |
| Specifications F - Height | |
| Specifications C - Ring Width | |
| Specifications J - Base Width | |
| Specifications D - Diameter | |
| Specifications Material | |
| Specifications A - Radius | |
| Specifications Finish | |
| Specifications Pivot | |
| Specifications PS - Load Rated | |
| Specifications Swivel | |
| Specifications Torque | |
| Specifications Warning | |
| Specifications Weight |
Key Specifics
- Specifications
- G – Thread Size: M16x2
- B – Base Height: 38.10 mm
- F – Height: 174.60 mm
- C – Ring Width: 88.90 mm
- J – Base Width: 48.00 mm
- D – Diameter: 19.10 mm
- Material: Forged Alloy
- A – Radius: 25.40 mm
- Country of Origin: US
- E – Thread Length: 32.00 mm
- Finish: Black Oxide
- H – Inside Clearance: 101.70 mm
- Pivot: 180 º
- PS – Load Rated: 4189 Pounds (1900 kg)
- Safety Factor (Min.): 5:1
- Swivel: 360 º
- Torque: 80.00 N·m
- Warning: Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Weight: 1.00 kg
$249.99
