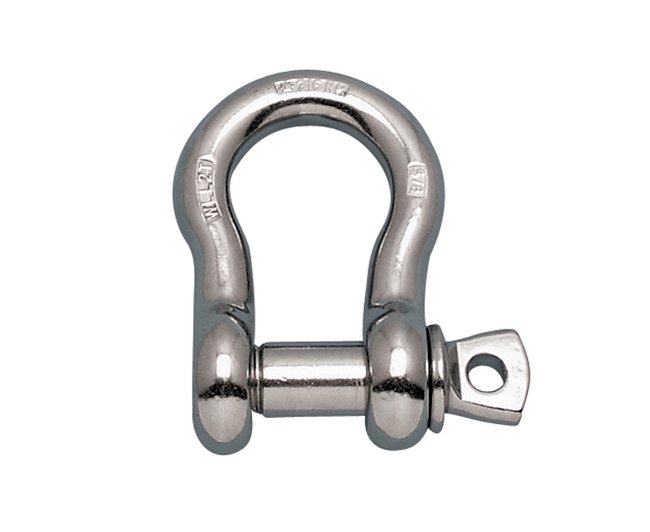

Premium Stainless Steel Anchor Shackle
High-quality stainless steel anchor shackle for secure anchoring. Ideal for saltwater use. Meets I/W/A Fed Spec RR-C-271 standards.
US
In stock
About Product
Elevate your anchoring system with our premium stainless steel anchor shackle. Crafted from high-grade 316-NM stainless steel and featuring an oversize screw pin, this anchor shackle is designed for durability and reliability in saltwater environments. Compliant with I/W/A Fed Spec RR-C-271 standards, this shackle is perfect for connecting your anchor securely to the chain. With a working load limit of 14,000 lb, this drop-forged shackle is a Suncor exclusive, ensuring top-notch quality and performance. Make a secure connection with confidence with this Mil. Spec rated anchor shackle.
Additional information
| Specifications Brands | |
|---|---|
| Specifications Material | |
| Specifications Dimension "A" | |
| Specifications Dimension B | |
| Specifications Dimension C | |
| Specifications Dimension D | |
| Specifications Dimension E | |
| Specifications Dimension X | |
| Specifications Dimension Y | |
| Specifications Dimension Z | |
| Specifications Load Rated | |
| Specifications Made In | |
| Specifications Mil. Spec | |
| Specifications Specification | ASME B30.26-2010, Class 2, Fed. Spec. RR-C-271, MIL-DTL-32655, Type IVA |
| Specifications Weight |
Key Specifics
- Specifications
- Brands: Suncor
- Material: 316-NM Stainless Steel

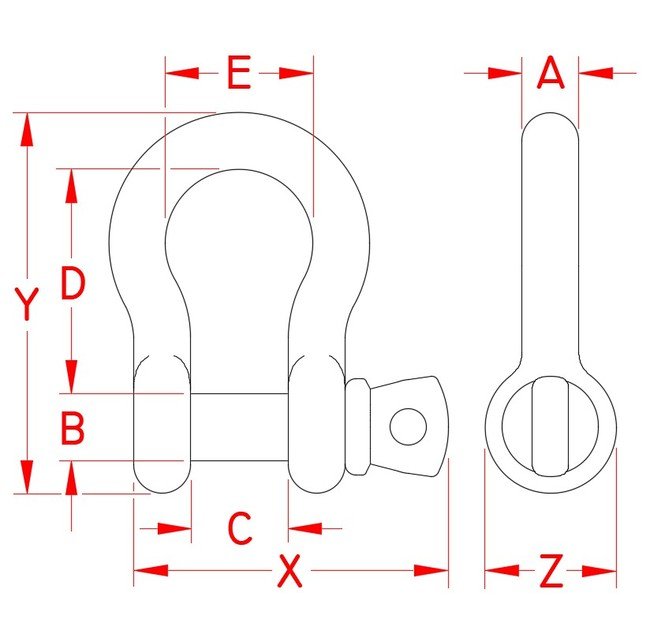

- Dimension A: 1-1/4 in
- Dimension B: 1.38 in
- Dimension C: 2.03 in
- Dimension D: 4.69 in
- Dimension E: 3.20 in
- Dimension X: 6.69 in
- Dimension Y: 7.85 in
- Dimension Z: 2.77 in
- Fabrication Type: Drop Forged
- Load Rated: Yes
- Made In: Import
- Mil. Spec: Yes
- Specification: ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
- Suncor Exclusive: Yes
- Weight: 9.58 lb
- Working Load Limit (WLL): 14,000 lb
