Premium Stainless Steel Chain Shackle
Explore our premium stainless steel chain shackle for unbeatable durability and corrosion resistance. Ideal for industrial and marine use.
US
In stock
About Product

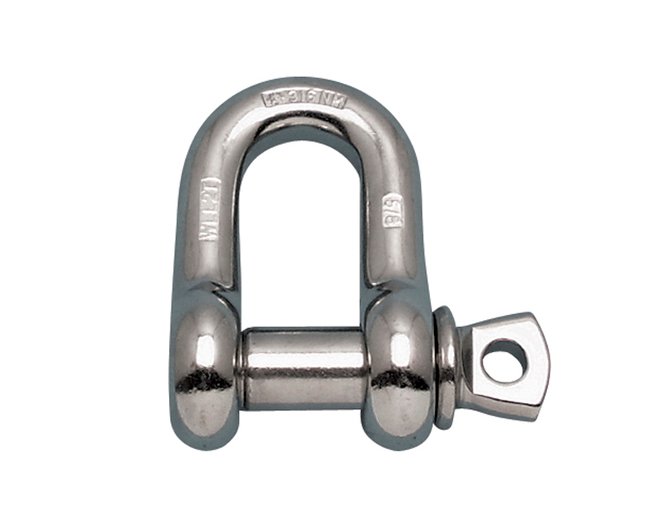

Elevate your industrial and marine applications with our premium stainless steel chain shackle. Crafted from grade 316 stainless steel, this shackle offers unparalleled corrosion resistance. The oversized screw pin ensures secure connections, while the drop-forged construction guarantees durability. Compliant with various specifications, including ASME B30.26-2010, this shackle is the ultimate choice for heavy-duty tasks. Available in multiple sizes with a working load limit of 1500 lb.
Additional information
| Specifications Brands | |
|---|---|
| Specifications Material | |
| Specifications Dimension "A" | |
| Specifications Dimension B | |
| Specifications Dimension C | |
| Specifications Dimension D | |
| Specifications Dimension X | |
| Specifications Dimension Y | |
| Specifications Dimension Z | |
| Specifications Load Rated | |
| Specifications Made In | |
| Specifications Mil. Spec | |
| Specifications Specification | ASME B30.26-2010, Class 2, Fed. Spec. RR-C-271, MIL-DTL-32655, Type IVB |
| Specifications Weight |
Key Specifics
- Specifications
- Brands: Suncor
- Material: 316-NM Stainless Steel
- Dimension A: 3/8 in
- Dimension B: 0.44 in
- Dimension C: 0.65 in
- Dimension D: 1.24 in
- Dimension X: 2.12 in
- Dimension Y: 2.27 in
- Dimension Z: 0.91 in
- Fabrication Type: Drop Forged
- Load Rated: Yes
- Made In: Import
- Mil. Spec: Yes
- Specification: ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVB
- Suncor Exclusive: Yes
- Weight: 0.27 lb
- Working Load Limit (WLL): 1500 lb
