Premium Stainless Steel Round Pin Anchor Shackle – Made in USA
SKU
STA-d90b68
Categories Stainless Steel Shackles, US Round Pin Anchor Shackles
Brand: Suncor Stainless Inc.
Upgrade your marine gear with our premium grade 316 stainless steel Round Pin Anchor Shackle – perfect for saltwater applications!
US
In stock
Roll over image to zoom in
About Product
Elevate your marine rigging with our Premium Stainless Steel Round Pin Anchor Shackle, meticulously crafted in the USA from grade 316-NM stainless steel. This heavy-duty shackle features an oversized round pin, ensuring secure connections for saltwater applications. Compliant with Fed Spec RR-C-271, Type IVA, Class 1 standards, this Suncor exclusive shackle boasts a working load limit of 6,000 lb. Perfect for linking anchors with chains or swivels, this drop-forged shackle is the epitome of durability and reliability.
Additional information
| Specifications Brands | |
|---|---|
| Specifications Material | |
| Specifications Dimension "A" | |
| Specifications Dimension B | |
| Specifications Dimension C | |
| Specifications Dimension D | |
| Specifications Dimension E | |
| Specifications Dimension X | |
| Specifications Dimension Y | |
| Specifications Dimension Z | |
| Specifications Load Rated | |
| Specifications Made In | |
| Specifications Weight |
Key Specifics
- Specifications
- Brands: Suncor

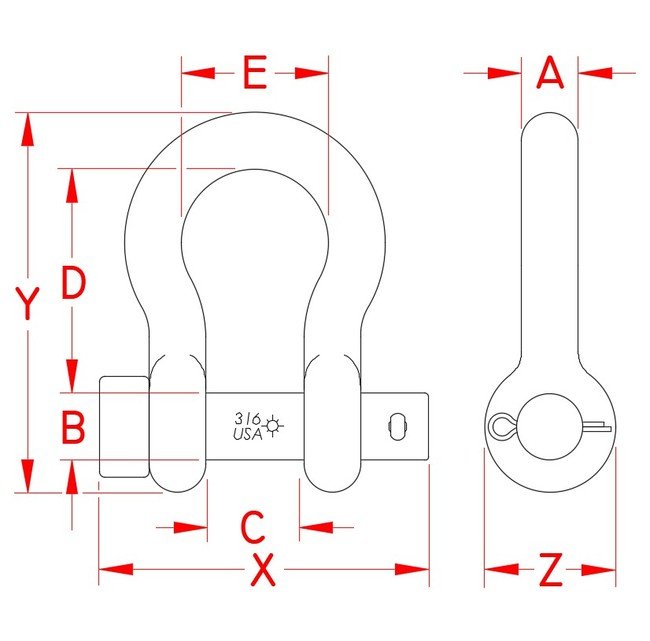

- Material: 316-NM Stainless Steel
- Dimension A: 3/4 in
- Dimension B: 0.88 in
- Dimension C: 1.25 in
- Dimension D: 2.84 in
- Dimension E: 1.90 in
- Dimension X: 3.72 in
- Dimension Y: 4.87 in
- Dimension Z: 1.74 in
- Fabrication Type: Drop Forged
- Load Rated: Yes
- Made In: Made in USA
- Specification: Class 1 | Fed. Spec. RR-C-271 | Type IVA
- Suncor Exclusive: Yes
- Weight: 2.15 lb
- Working Load Limit (WLL): 6,000 lb
