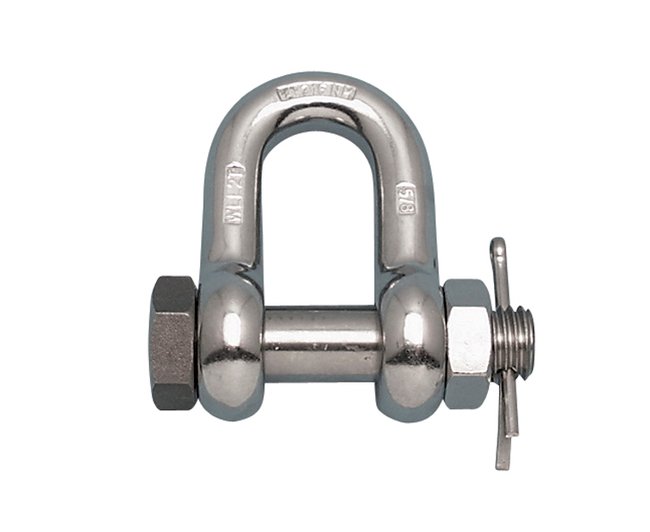

Premium Stainless Steel US Bolt Chain Shackle
Upgrade to our Premium Stainless Steel US Bolt Chain Shackle for superior durability and strength in industrial and marine settings.
US
In stock
About Product
Elevate your industrial and marine applications with our Premium Stainless Steel US Bolt Chain Shackle. Proudly made in the USA using grade 316 stainless steel, this shackle is designed for maximum corrosion resistance and durability. Its oversized bolt and precise construction ensure reliability and safety in various heavy-duty settings. Compliant with I/A/W Fed Spec RR-C-271, Type IVB, Class 3 standards, this top-of-the-line shackle is available in multiple sizes to meet your specific needs.
Additional information
| Specifications Brands | |
|---|---|
| Specifications Material | |
| Specifications Dimension "A" | |
| Specifications Dimension B | |
| Specifications Dimension C | |
| Specifications Dimension D | |
| Specifications Dimension X | |
| Specifications Dimension Y | |
| Specifications Dimension Z | |
| Specifications Load Rated | |
| Specifications Made In | |
| Specifications Specification | |
| Specifications Weight |
Key Specifics
- Specifications
- Brands: Suncor
- Material: 316-NM Stainless Steel
- Dimension A: 1/2 in
- Dimension B: 0.63 in
- Dimension C: 0.79 in
- Dimension D: 1.58 in
- Dimension X: 2.87 in
- Dimension Y: 2.93 in
- Dimension Z: 1.18 in
- Fabrication Type: Drop Forged
- Load Rated: Yes
- Made In: Made in USA
- Specification: ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVB
- Suncor Exclusive: Yes
- Weight: 0.72 lb
- Working Load Limit (WLL): 3000 lb
