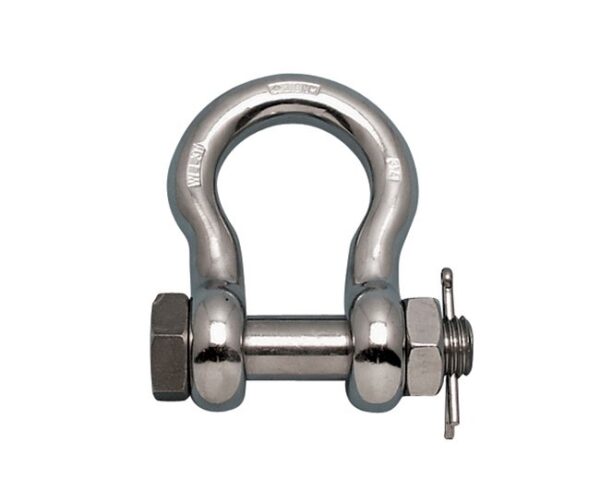

Stainless Steel Bolt Anchor Shackle – Suncor
Premium Suncor Stainless Steel Bolt Anchor Shackle – Ideal for saltwater applications, strong & durable.
US
In stock
About Product
Elevate your anchoring system with the premium Stainless Steel Bolt Anchor Shackle by Suncor. Crafted in the USA from high-grade 316-NM stainless steel using drop forged fabrication, this anchor shackle ensures superior durability and corrosion resistance. With a generous Working Load Limit (WLL) of 10,000 lb and compliance with ASME B30.26-2010, Fed. Spec. RR-C-271 standards, this Suncor exclusive shackle is perfect for saltwater applications. Secure your anchor with confidence using this top-tier Bolt Anchor Shackle.
Additional information
| Specifications Brands | |
|---|---|
| Specifications Material | |
| Specifications Dimension "A" | |
| Specifications Dimension B | |
| Specifications Dimension C | |
| Specifications Dimension D | |
| Specifications Dimension E | |
| Specifications Dimension X | |
| Specifications Dimension Y | |
| Specifications Dimension Z | |
| Specifications Load Rated | |
| Specifications Made In | |
| Specifications Specification | |
| Specifications Weight |
Key Specifics
- Specifications
- Brands: Suncor
- Material: 316-NM Stainless Steel
- Dimension A: 1 in
- Dimension B: 1.13 in
- Dimension C: 1.70 in
- Dimension D: 3.80 in
- Dimension E: 2.60 in
- Dimension X: 5.15 in
- Dimension Y: 6.46 in
- Dimension Z: 2.20 in
- Fabrication Type: Drop Forged
- Load Rated: Yes
- Made In: Made in USA
- Specification: ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | Type IVA
- Suncor Exclusive: Yes
- Weight: 5.09 lb
- Working Load Limit (WLL): 10,000 lb
