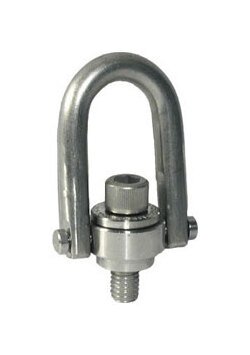

Stainless Steel Metric Swivel Hoist Ring
Enhance lifting operations with our durable Stainless Steel Metric Swivel Hoist Ring. 360° swivel, 180° pivot, 12125 lbs load rating.
In stock
Roll over image to zoom in
About Product
Elevate your industrial lifting operations with our Stainless Steel Metric Swivel Hoist Ring. Engineered to the highest standards, this versatile hoist ring offers a 360° swivel and 180° pivot for flexible movement. Made from 300 Stainless Steel, it ensures durability in corrosive environments. With a 5:1 safety factor and load rating of 12125 pounds, this hoist ring is ideal for heavy-duty applications. Trust in its quality with 100% liquid penetrate tested NDT and compliance with strict standards. Upgrade to our reliable hoist ring for enhanced safety and efficiency.
Additional information
| Specifications G - Thread Size | |
|---|---|
| Specifications B - Base Height | |
| Specifications F - Height | |
| Specifications C - Ring Width | |
| Specifications D - Diameter | |
| Specifications Material | |
| Specifications A - Radius | |
| Specifications Finish | |
| Specifications J | |
| Specifications Pivot | |
| Specifications PS - Load Rated | |
| Specifications Swivel | |
| Specifications Torque | |
| Specifications Warning | |
| Specifications Weight |
Key Specifics
- Specifications
- G – Thread Size: M36x4
- B – Base Height: 71.40 mm
- F – Height: 316.70 mm
- C – Ring Width: 203.20 mm
- I – Overall Width: 217.20 mm
- D – Diameter: 44.50 mm
- Material: 300 Stainless Steel
- A – Radius: 57.20 mm
- Country of Origin: US
- E – Thread Length: 69.00 mm
- Finish: Stainless Steel
- H – Inside Clearance: 164.80 mm
- J: 106.70 mm
- Pivot: 180 º
- PS – Load Rated: 12125 Pounds (5500 kg)
- Safety Factor (Min.): 5:1
- Swivel: 360 º
- Torque: 542.70 N·m
- Warning: Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Weight: 15.34 kg
$399.99
