Suncor Stainless Steel Oversize Screw Pin Anchor Shackle
Upgrade your marine gear with our Suncor Stainless Steel Anchor Shackle – ASME compliant, DFARS certified, and highly durable. Made in the USA.
US
In stock
Roll over image to zoom in
About Product
Elevate your marine equipment with this top-quality Suncor Stainless Steel Oversize Screw Pin Anchor Shackle. Crafted from grade 316 stainless steel, this anchor shackle is perfect for saltwater conditions, meeting ASME standards and DFARS compliance. With a working load limit of 1000 lb, its drop-forged construction ensures durability and reliability for your marine applications. Made in the USA, this shackle boasts precision engineering and Suncor’s exclusive quality guarantee.
Additional information
| Specifications Brands | |
|---|---|
| Specifications Material | |
| Specifications Dimension "A" | |
| Specifications Dimension B | |
| Specifications Dimension C | |
| Specifications Dimension D | |
| Specifications Dimension E | |
| Specifications Dimension X | |
| Specifications Dimension Y | |
| Specifications Dimension Z | |
| Specifications Load Rated | |
| Specifications Made In | |
| Specifications Specification | |
| Specifications Weight |
Key Specifics
- Specifications
- Brands: Suncor
- Material: 316-NM Stainless Steel

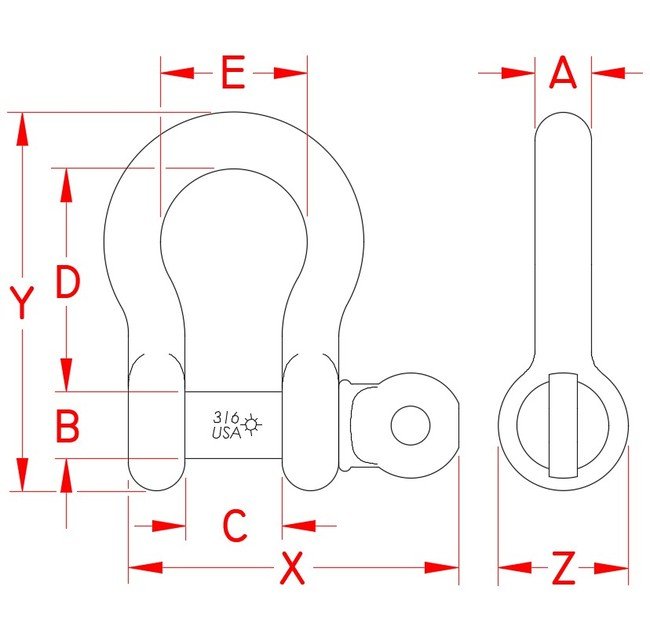

- Dimension A: 1/4 in
- Dimension B: 0.31 in
- Dimension C: 0.47 in
- Dimension D: 1.11 in
- Dimension E: 0.75 in
- Dimension X: 1.56 in
- Dimension Y: 1.80 in
- Dimension Z: 0.61 in
- Fabrication Type: Drop Forged
- Load Rated: Yes
- Made In: Made in USA
- Specification: ASME B30.26-2010 | Class 2 | Fed. Spec. RR-C-271 | Type IVA
- Suncor Exclusive: Yes
- Weight: 0.1 lb
- Working Load Limit (WLL): 1000 lb
