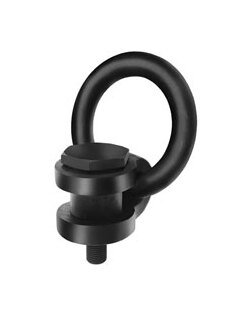

Swivel Side Pull Hoist Ring – Metric
Enhance lifting efficiency with our Swivel Side Pull Hoist Ring – Metric. 360° swivel action, durable Alloy Steel construction, and 1984 pounds load rated.
In stock
About Product
Upgrade your lifting operations with our Swivel Side Pull Hoist Ring. Designed for side lifting, this industrial hoist ring offers 360° swivel action, allowing seamless flipping and turning of parts. Crafted from Alloy Steel with a certified heat treat, it ensures durability and safety with a 5:1 safety factor. Meets OSHA standards and Military Specifications. Ideal for heavy-duty lifting applications, this hoist ring boasts a black oxide finish and can support up to 1984 pounds.
Additional information
| Specifications G - Thread Size | |
|---|---|
| Specifications D - Diameter | |
| Specifications Material | |
| Specifications A - Radius | |
| Specifications Finish | |
| Specifications P | |
| Specifications Pivot | |
| Specifications PS - Load Rated | |
| Specifications Q | |
| Specifications Swivel | |
| Specifications Torque | |
| Specifications Warning | |
| Specifications Weight |
Key Specifics
- Specifications
- G – Thread Size: M12x1.75
- D – Diameter: 15.90 mm
- Material: Alloy Steel
- A – Radius: 38.10 mm
- Country of Origin: US
- E – Thread Length: 24.00 mm
- Finish: Black Oxide
- P: 60.30 mm
- Pivot: 180 º
- PS – Load Rated: 1984 Pounds (900 kg)
- Q: 81.00 mm
- Safety Factor (Min.): 5:1
- Swivel: 360 º
- T – Stud Length: 84.33 mm
- Torque: 27.00 N·m
- Warning: Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Weight: 1.50 kg
