Transducer Techniques® 125000 lb Marine & Industrial Clevis Pin Load Cell
SKU
LOA-bb83f9
Category CLP Series Accurate/High Reliable Marine and Industrial Clevis Pin Load Cells
Brand: Transducer Techniques LLC
Reliable 125000 lb Marine & Industrial Clevis Pin Load Cell for accurate load monitoring in harsh environments.
In stock
Roll over image to zoom in
About Product
Experience precision and reliability with our Transducer Techniques® CLP Series 125000 lb Capacity Marine and Industrial Clevis Pin Load Cell. Designed to replace shackle pins, clevis pins, and pulley shafts, these load pins feature a stainless steel connector system for durability in harsh environments. Ideal for various applications like crane load monitoring, towing, and conveyor belt tension, our load cells offer accurate measurements in both compression and tension (optional calibration). Made in the USA, these load pins ensure top-notch performance and safety.
Additional information
| Specifications Brands | |
|---|---|
| Dimensions Diameter A | |
| Dimensions Dimension B | |
| Dimensions Dimension (C) | |
| Dimensions Dimension D | |
| Dimensions Dimension (E) | |
| Dimensions Dimension F | |
| Dimensions Dimension H | |
| Dimensions Dimension J | |
| Dimensions Key Diameter | |
| Specifications Capacity | |
| Additional Information | The Load Cells come Calibrated in Compression, Tension Calibration is optional |
| Note |
Key Specifics
- Specifications
- Brands: Transducer Techniques®
- Direct Current (DC) Excitation Voltage: 10 V
- Capacity: 125000 lb
- Compensated Temperature Range: 60 to 160 ºF
- Hysteresis of Rated Output (R.O.): 0.50 %
- Nominal Rated Output (R.O.): 2 mV/V
- Nominal Terminal Resistance: 350 O
- Non-Repeatability of Rated Output (R.O.): 0.15 %
- Nonlinearity of Rated Output (R.O.): 0.50 %
- Safe Overload of Rated Output (R.O.): 150 %
- Safe Temperature Range: -65 to 200 ºF
- Temperature Effect on Output of Load per Degree Fahrenheit (ºF): 0.0085 %
- Temperature Effect on Zero of Rated Output (R.O.) per Degree Fahrenheit (ºF): 0.003 %
- Zero Balance of Rated Output (R.O.): 1.0 %

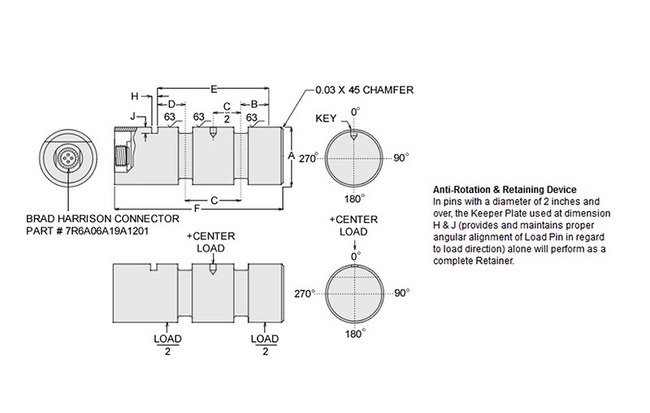

- Dimensions
- Diameter A: 3.000 in
- Diameter A Tolerance: -0.002 to +0.000 in
- Dimension B: 1.44 in
- Dimension C: 3.00 in
- Dimension D: 1.44 in
- Dimension E: 5.88 in
- Dimension F: 8.75 in
- Dimension H: 0.406 in
- Dimension J: 0.63 in
- Key Diameter: 0.406 in
- Additional
- Information: The Load Cells come Calibrated in Compression, Tension Calibration is optional
- Typical
- Applications: Crane Load MonitorFront End LoadersTow Bar ConnectionRailroad CouplingsSprocket AxleCrane Cargo HookConnecting RodForkliftsConveyer Belt RollersMooring Line TensionClevis JointsTow Line Tension
- Additional Specifications
- Note: Made in USA
- Options: Model – OPT-TEDSDescription – Plug & Play Option with ConnectorModel – AMM-66SSDescription – Mating Assembly 6 ft CableModel – AMM-612SSDescription – Mating Assembly 12 ft CableModel – AMM-620SSDescription – Mating Assembly 20 ft CableModel – AMM-650SSDescription – Mating Assembly 50 ft CableNote – One Mating Assembly Needed Per Clevis Load Pin
$799.99
