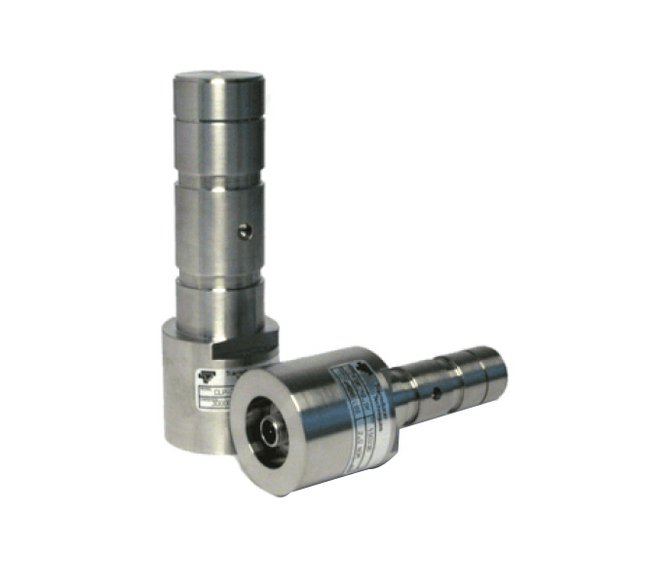

Transducer Techniques® CLP-3000 Marine & Industrial Clevis Pin Load Cell
SKU
LOA-d422a8
Category CLP Series Accurate/High Reliable Marine and Industrial Clevis Pin Load Cells
Brand: Transducer Techniques LLC
Reliable Transducer Techniques® CLP-3000 Marine & Industrial Clevis Pin Load Cell for accurate load monitoring in harsh environments.
In stock
Roll over image to zoom in
About Product
Experience unmatched reliability with the Transducer Techniques® CLP-3000 Marine & Industrial Clevis Pin Load Cell. Perfect for applications like crane load monitoring, forklifts, and conveyor belt rollers, these load pins provide accurate readings under extreme conditions. Designed with a stainless steel molded connector system, these load cells ensure durability in harsh industrial environments. With a nominal capacity of 3000 lb and a safe temperature range from -65 to 200 ºF, trust these load pins for precise and consistent performance in marine and industrial settings.
Additional information
| Specifications Brands | |
|---|---|
| Dimensions Diameter A | |
| Dimensions Dimension B | |
| Dimensions Dimension (C) | |
| Dimensions Dimension D | |
| Dimensions Dimension (E) | |
| Dimensions Dimension F | |
| Dimensions Dimension H | |
| Dimensions Dimension J | |
| Dimensions Dimension (L) | |
| Dimensions Dimension N | |
| Dimensions Diameter O | |
| Specifications Capacity | |
| Additional Information | The Load Cells come Calibrated in Compression, Tension Calibration is optional |
| Note |
Key Specifics
- Specifications
- Brands: Transducer Techniques®
- Direct Current (DC) Excitation Voltage: 10 V
- Capacity: 3000 lb
- Compensated Temperature Range: 60 to 160 ºF
- Hysteresis of Rated Output (R.O.): 0.50 %
- Nominal Rated Output (R.O.): 2 mV/V
- Nominal Terminal Resistance: 350 O
- Non-Repeatability of Rated Output (R.O.): 0.15 %
- Nonlinearity of Rated Output (R.O.): 0.50 %
- Safe Overload of Rated Output (R.O.): 150 %
- Safe Temperature Range: -65 to 200 ºF
- Temperature Effect on Output of Load per Degree Fahrenheit (ºF): 0.0085 %
- Temperature Effect on Zero of Rated Output (R.O.) per Degree Fahrenheit (ºF): 0.003 %
- Zero Balance of Rated Output (R.O.): 1.0 %
- Dimensions
- Diameter A: 0.500 in
- Diameter A Tolerance: -0.002 to +0.000 in
- Dimension B: 0.50 in
- Dimension C: 0.75 in
- Dimension D: 0.50 in
- Dimension E: 1.75 in
- Dimension F: 4.00 in
- Dimension H: 0.20 in
- Dimension J: 0.25 in
- Dimension L: 0.25 in
- Snap Ring Groove Diameter: 0.468 in
- Dimension N: 0.039 in
- Diameter O: 2.00 in
- Additional
- Information: The Load Cells come Calibrated in Compression, Tension Calibration is optional
- Typical
- Applications: Crane Load MonitorFront End LoadersTow Bar ConnectionRailroad CouplingsSprocket AxleCrane Cargo HookConnecting RodForkliftsConveyer Belt RollersMooring Line TensionClevis JointsTow Line Tension
- Additional Specifications
- Note: Made in USA
- Options: Model – OPT-TEDSDescription – Plug & Play Option with ConnectorModel – AMM-66SSDescription – Mating Assembly 6 ft CableModel – AMM-612SSDescription – Mating Assembly 12 ft CableModel – AMM-620SSDescription – Mating Assembly 20 ft CableModel – AMM-650SSDescription – Mating Assembly 50 ft CableNote – One Mating Assembly Needed Per Clevis Load Pin
$299.99
