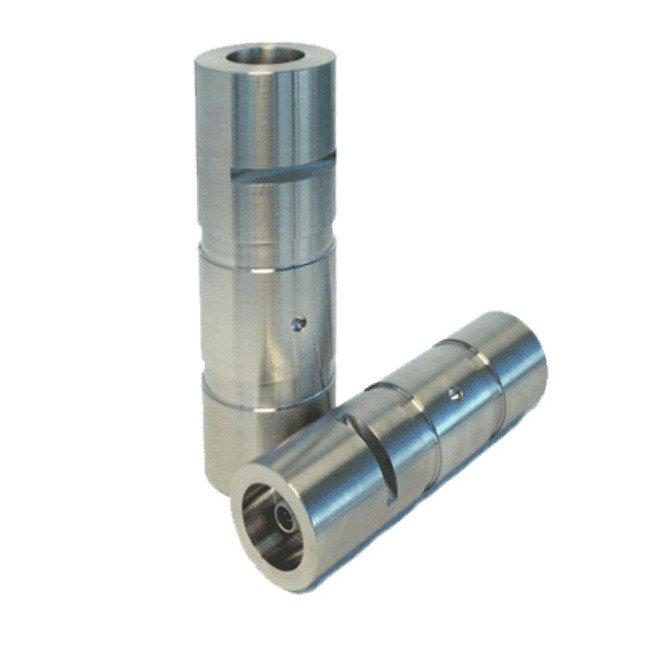

Transducer Techniques CLP Series 200k lb Clevis Pin Load Cell
SKU
LOA-607c29
Category CLP Series Accurate/High Reliable Marine and Industrial Clevis Pin Load Cells
Brand: Transducer Techniques LLC
Enhance your industrial setups with our reliable 200k lb Clevis Pin Load Cell. Ideal for various heavy-duty applications.
In stock
Roll over image to zoom in
About Product
Upgrade your industrial or marine applications with our Transducer Techniques CLP Series 200000 lb Capacity Clevis Pin Load Cell. Replacing traditional pins, these load cells offer high reliability and accuracy. Designed for harsh environments, they feature a stainless steel connector system. Perfect for crane monitoring, forklifts, conveyor belts, and more. Optional Tension Calibration available. Made in the USA for exceptional quality assurance.
Additional information
| Specifications Brands | |
|---|---|
| Dimensions Diameter A | |
| Dimensions Dimension B | |
| Dimensions Dimension (C) | |
| Dimensions Dimension D | |
| Dimensions Dimension (E) | |
| Dimensions Dimension F | |
| Dimensions Dimension H | |
| Dimensions Dimension J | |
| Dimensions Key Diameter | |
| Specifications Capacity | |
| Additional Information | The Load Cells come Calibrated in Compression, Tension Calibration is optional |
| Note |
Key Specifics
- Specifications
- Brands: Transducer Techniques®
- Direct Current (DC) Excitation Voltage: 10 V
- Capacity: 200000 lb
- Compensated Temperature Range: 60 to 160 ºF
- Hysteresis of Rated Output (R.O.): 0.50 %
- Nominal Rated Output (R.O.): 2 mV/V
- Nominal Terminal Resistance: 350 O
- Non-Repeatability of Rated Output (R.O.): 0.15 %
- Nonlinearity of Rated Output (R.O.): 0.50 %
- Safe Overload of Rated Output (R.O.): 150 %
- Safe Temperature Range: -65 to 200 ºF
- Temperature Effect on Output of Load per Degree Fahrenheit (ºF): 0.0085 %
- Temperature Effect on Zero of Rated Output (R.O.) per Degree Fahrenheit (ºF): 0.003 %
- Zero Balance of Rated Output (R.O.): 1.0 %
- Dimensions
- Diameter A: 4.000 in
- Diameter A Tolerance: -0.002 to +0.000 in
- Dimension B: 2.25 in
- Dimension C: 4.00 in
- Dimension D: 2.25 in
- Dimension E: 8.50 in
- Dimension F: 11.75 in
- Dimension H: 0.531 in
- Dimension J: 0.75 in
- Key Diameter: 0.531 in
- Additional
- Information: The Load Cells come Calibrated in Compression, Tension Calibration is optional
- Typical
- Applications: Crane Load MonitorFront End LoadersTow Bar ConnectionRailroad CouplingsSprocket AxleCrane Cargo HookConnecting RodForkliftsConveyer Belt RollersMooring Line TensionClevis JointsTow Line Tension
- Additional Specifications
- Note: Made in USA
- Options: Model – OPT-TEDSDescription – Plug & Play Option with ConnectorModel – AMM-66SSDescription – Mating Assembly 6 ft CableModel – AMM-612SSDescription – Mating Assembly 12 ft CableModel – AMM-620SSDescription – Mating Assembly 20 ft CableModel – AMM-650SSDescription – Mating Assembly 50 ft CableNote – One Mating Assembly Needed Per Clevis Load Pin
$899.99
