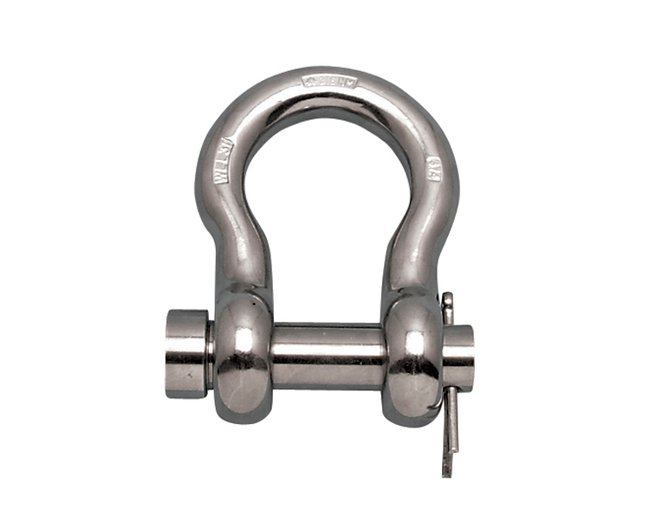

USA-Made Stainless Steel Round Pin Anchor Shackle – 3/8 in
SKU
STA-99903e
Categories Stainless Steel Shackles, US Round Pin Anchor Shackles
Brand: Suncor Stainless Inc.
Secure your marine connections with this USA-Made Stainless Steel Round Pin Anchor Shackle. Grade 316-NM stainless steel, 1500 lb WLL.
US
In stock
Roll over image to zoom in
About Product
Elevate your maritime endeavors with the USA-Made Stainless Steel Round Pin Anchor Shackle. Crafted from premium grade 316-NM stainless steel by Suncor, this shackle features an oversized round pin for secure connections. Perfect for saltwater use, this shackle adheres to Federal Specification RR-C-271 Type IVA Class 1 standards. With a working load limit of 1500 lb, this drop-forged shackle is your reliable partner for connecting anchors with ease and confidence.
Additional information
| Specifications Brands | |
|---|---|
| Specifications Material | |
| Specifications Dimension "A" | |
| Specifications Dimension B | |
| Specifications Dimension C | |
| Specifications Dimension D | |
| Specifications Dimension E | |
| Specifications Dimension X | |
| Specifications Dimension Y | |
| Specifications Dimension Z | |
| Specifications Load Rated | |
| Specifications Made In | |
| Specifications Weight |
Key Specifics
- Specifications
- Brands: Suncor
- Material: 316-NM Stainless Steel
- Dimension A: 3/8 in
- Dimension B: 0.44 in
- Dimension C: 0.66 in
- Dimension D: 1.41 in
- Dimension E: 1.00 in
- Dimension X: 2.01 in
- Dimension Y: 2.44 in
- Dimension Z: 0.89 in
- Fabrication Type: Drop Forged
- Load Rated: Yes
- Made In: Made in USA
- Specification: Class 1 | Fed. Spec. RR-C-271 | Type IVA
- Suncor Exclusive: Yes
- Weight: 0.29 lb
- Working Load Limit (WLL): 1500 lb
Know Your Supplier
Located in: Plymouth, MA
$25.99
