1 1/2" BSP PWR-FLO™ AODD Pump, Ductile Iron w/ Santoprene® Diaphragm

1 1/2" BSP PWR-FLO™ AODD Pump, Ductile Iron w/ Santoprene® Diaphragm

MAN-d3f8cf

Efficient 1 1/2" BSP AODD Pump for reliable liquid transfer, handling solids with ease. Drop-in replacement for Wilden® pumps.

$899.99
$899.99
Sale

Initiate Order

1 1/2" BSP PWR-FLO™ AODD Pump, Ductile Iron w/ Santoprene® Diaphragm

1 1/2" BSP PWR-FLO™ AODD Pump, Ductile Iron w/ Santoprene® Diaphragm

$899.99

Quantity: 1

Claim Your Seller Account

1 1/2" BSP PWR-FLO™ AODD Pump, Ductile Iron w/ Santoprene® Diaphragm

1 1/2" BSP PWR-FLO™ AODD Pump, Ductile Iron w/ Santoprene® Diaphragm

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

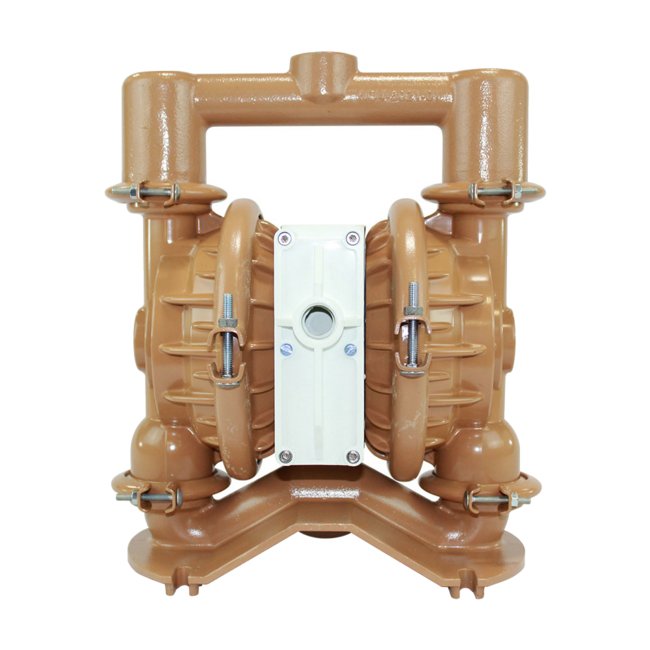

The 1 1/2" BSP PWR-FLO™ AODD Pump in Ductile Iron with Santoprene® Diaphragm from the NOMAD® PWR-FLOâ„¢ Pumps line is a high-performance solution designed for seamless integration as a drop-in replacement for Wilden® AODD pumps. Featuring an advanced air-driven double diaphragm system, it excels in handling large solids and slurries with ease. The innovative asymmetrical spool design ensures an efficient air system, delivering exceptional reliability in on/off liquid transfer applications. Crafted with chemically resistant polypropylene components, this pump guarantees durability and long-term performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Curves 0

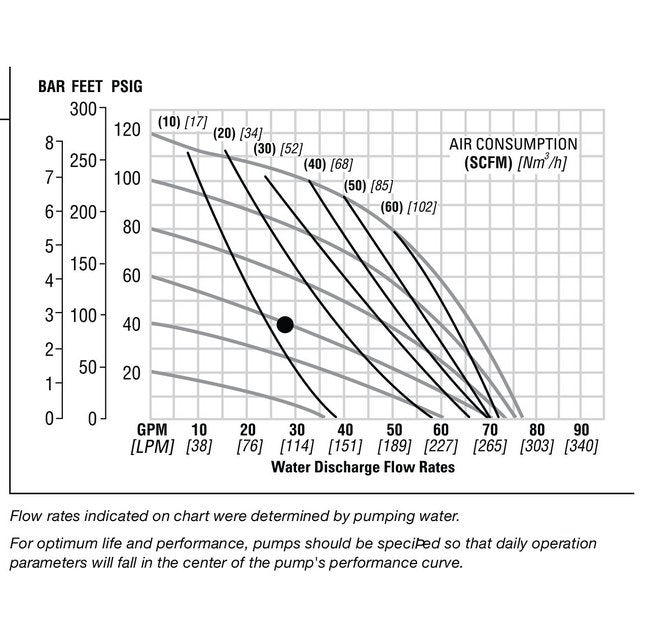

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO™ asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Santoprene®
Specifications Check Valve Seat
Santoprene
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Santoprene® - UFI
Specifications Displacement Per Cycle
0.26 gal | 0.98 lit
Specifications Elastomers
Santoprene, Santoprene®, Santoprene®
Specifications Fluid Inlet Size
1.5 BSP in | 38 BSP mm
Specifications Fluid Outlet Size
1.5 BSP in | 38 BSP mm
Specifications Height
17 Inch | 17 in | 429.26 mm
Specifications Length
17 Inch | 17 in | 0.4293 m | 429.26 mm
Specifications Max Flow Rate
76 gpm | 287.69 lpm
Specifications Moc
Ductile Iron
Specifications Model
NPF40/WAPP/SNF/SN/SN/B/C
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
40-211663
Specifications Solids Handling
0.1875 in | 5 mm
Specifications Wetted Moc
Ductile Iron
Specifications Width
12 Inch | 12 in | 0.3073 m | 307.34 mm
