1/2" Stainless Steel Pwr-Flo™ AODD Pump with Buna Diaphragm

1/2" Stainless Steel Pwr-Flo™ AODD Pump with Buna Diaphragm

MAN-450e62

Efficient and reliable 1/2" Stainless Steel Pwr-Flo™ AODD Pump with Buna Diaphragm for industrial liquid transfer applications.

$799.99
$799.99
Sale

Initiate Order

1/2" Stainless Steel Pwr-Flo™ AODD Pump with Buna Diaphragm

1/2" Stainless Steel Pwr-Flo™ AODD Pump with Buna Diaphragm

$799.99

Quantity: 1

Claim Your Seller Account

1/2" Stainless Steel Pwr-Flo™ AODD Pump with Buna Diaphragm

1/2" Stainless Steel Pwr-Flo™ AODD Pump with Buna Diaphragm

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

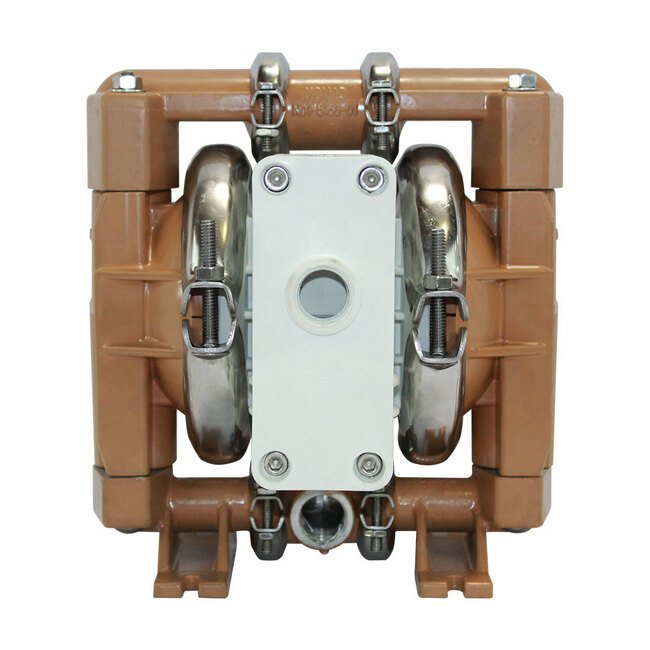

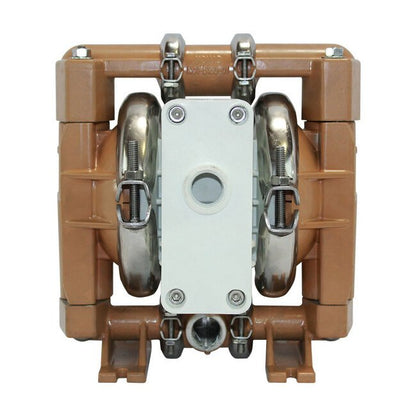

The 1/2" Stainless Steel Pwr-Flo™ AODD Pump with Buna Diaphragm from the NOMAD® PWR-FLO™ Pumps line is a high-quality industrial pump designed for efficiency and reliability in on/off liquid transfer applications. It features an asymmetrical spool design for optimal air system performance and handles large solids and slurries with ease. Made of stainless steel with Buna diaphragms, this pump offers chemical resistance and durability. With a max flow rate of 14.8 gpm, it guarantees consistent and smooth operation, making it a drop-in replacement for Wilden® AODD pumps. Suitable for filling, batching, and various industrial applications, this pump ensures reliable performance in demanding environments.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Curves 0

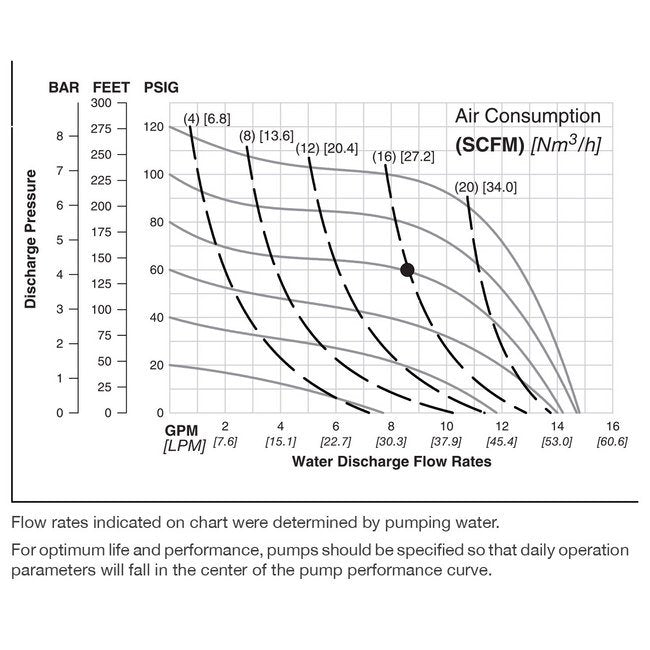

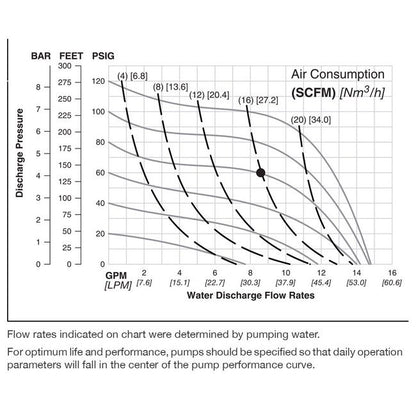

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO™ asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Buna
Specifications Displacement Per Cycle
0.027 gal | 0.10 lit
Specifications Elastomers
Buna, Buna
Specifications Fluid Inlet Size
0.5 in | 13 mm
Specifications Fluid Outlet Size
0.5 BSP in | 13 BSP mm
Specifications Height
11 Inch | 11 in | 276.86 mm
Specifications Length
11 Inch | 11 in | 0.2769 m | 276.86 mm
Specifications Max Flow Rate
14.8 gpm | 56.02 lpm
Specifications Model
NPF15/SPPP/BN/BN/SBN/B/C
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
15-2766
Specifications Solids Handling
0.0625 in | 2 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
8 Inch | 8 in | 0.2007 m | 200.66 mm
