1 Inch Check-All® HV Style Flanged & Drilled Check Valve
1 Inch Check-All® HV Style Flanged & Drilled Check Valve
SKU:HVS-cd758e
Premium 1 Inch HV Style Check Valve for high flow rates & low pressure drops. ASME/ANSI B16.5 Class 150 flanges. Ideal for industrial use.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
1 Inch Check-All® HV Style Flanged & Drilled Check Valve
$249.99
Quantity: 1
Claim Your Seller Account
1 Inch Check-All® HV Style Flanged & Drilled Check Valve
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1 Inch Check-All® HV Style Flanged & Drilled Check Valve is a premium one-piece cast valve designed to offer optimal performance in high flow rate applications with minimal pressure drops. Featuring ASME/ANSI B16.5 Class 150 flanged ends, this valve is available in 1 to 10-inch sizes with standard materials like CF8M stainless steel and WCB/WCC carbon steel. It functions effectively with mating ANSI Class 150 flanges and offers customization for different materials upon request. This versatile valve can also serve as a low-pressure relief valve or vacuum breaker, making it a versatile and reliable choice for various industrial applications.
Product Specifications
Additional Information

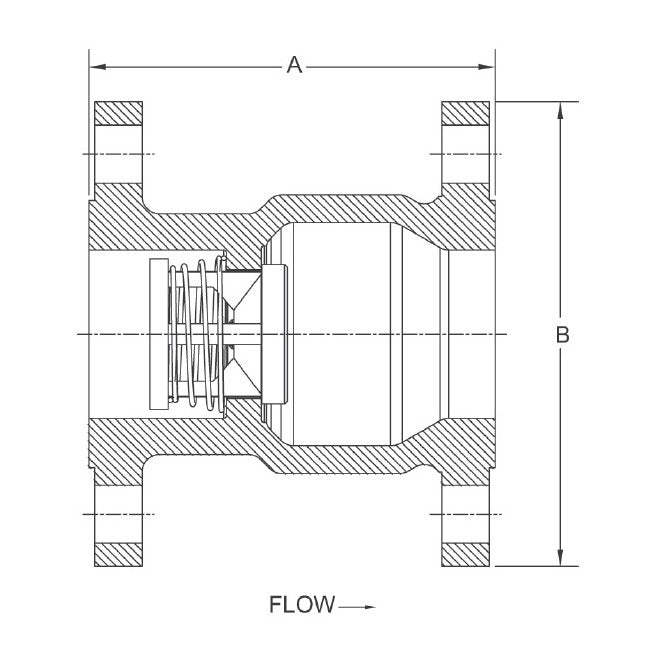

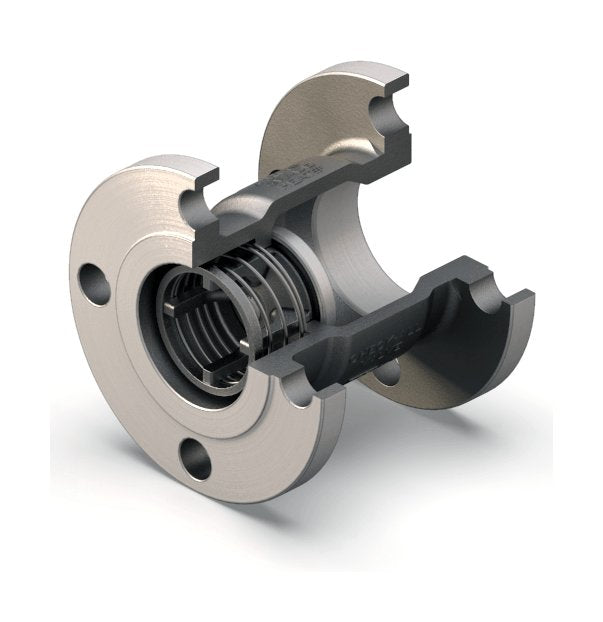

The Check-All® Flanged and Drilled (HV) check valve is a one-piece cast full-bodied spring loaded check valve with ANSI/ASME B16.5 Class 150 flanged ends. The HV series spring check valve is used when higher flow rates and lower pressure drops are required. The valve is available in sizes 1 through 10 inches and standard materials of CF8M (cast 316 stainless) and WCB/WCC (cast carbon steel). This check valve is designed for use with mating ANSI class 150 flanges. Other materials are available upon request.
Note
Made in USA.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.
Specifications Body Material Availability
CF8M Stainless Steel = SS - Standard | Wrought Carbon Steel (WCB/WCC) - Standard
Specifications Cast Body Material
CF8M Stainless Steel = SS | Wrought Carbon Steel (WCB/WCC) = CS
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1 in
Specifications Non Shock Pressure Rating
American Society of Mechanical Engineers (ASME)/American National Standards Institute (ANSI) B16.5 Class 150
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
H
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Valve Style
HV
