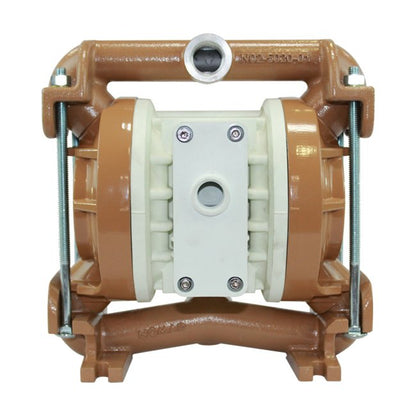

  • 1" NPT PWR-FLO™ AODD Pump, Stainless Steel w/ Santoprene® Diaphragm - Image 2

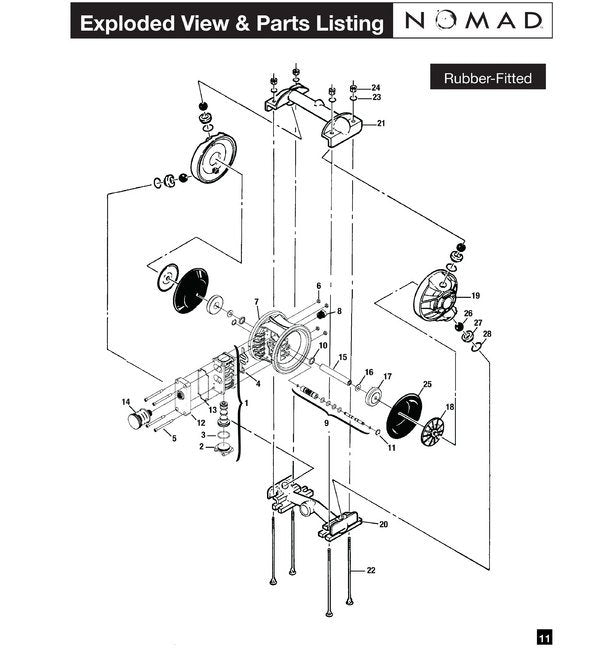

  • 1" NPT PWR-FLO™ AODD Pump, Stainless Steel w/ Santoprene® Diaphragm - Image 3
1 3
Springer Pumps, LLC →

1" NPT PWR-FLO™ AODD Pump, Stainless Steel w/ Santoprene® Diaphragm

1" NPT PWR-FLO™ AODD Pump, Stainless Steel w/ Santoprene® Diaphragm

MAN-fc6a41

High-performance 1" NPT AODD Pump with stainless steel construction and Santoprene® diaphragm. Reliable and efficient liquid transfer for various applications.

$799.99
$799.99
Sale

Initiate Order

1" NPT PWR-FLO™ AODD Pump, Stainless Steel w/ Santoprene® Diaphragm

1" NPT PWR-FLO™ AODD Pump, Stainless Steel w/ Santoprene® Diaphragm

$799.99

Quantity: 1

Claim Your Seller Account

1" NPT PWR-FLO™ AODD Pump, Stainless Steel w/ Santoprene® Diaphragm

1" NPT PWR-FLO™ AODD Pump, Stainless Steel w/ Santoprene® Diaphragm

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 1" NPT PWR-FLO™ AODD Pump from the NOMAD® PWR-FLO™ Pump line is a versatile solution for various applications. Built as a drop-in replacement for Wilden® AODD pumps, this pump excels in handling large solids and slurries efficiently. Featuring an anti-stalling design with an asymmetrical spool, this pump ensures reliable on/off liquid transfer for filling and batching operations. Made of stainless steel with a Santoprene® diaphragm, this pump offers durability and resistance to chemical corrosion. With a maximum flow rate of 45 gpm, this pump delivers performance and reliability.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Curves 0

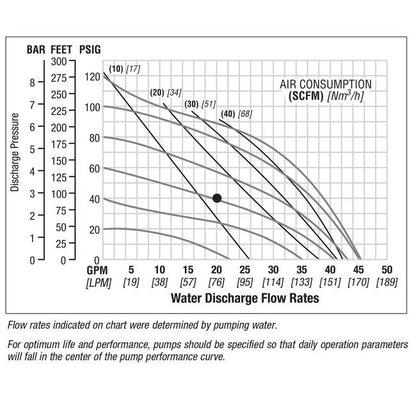

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO™ asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Santoprene®
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Santoprene® - UFI
Specifications Displacement Per Cycle
0.091 gal | 0.34 lit
Specifications Elastomers
Santoprene, Santoprene®, Santoprene®
Specifications Fluid Inlet Size
1 NPT in | 25 NPT mm
Specifications Fluid Outlet Size
1 NPT in | 25 NPT mm
Specifications Height
11 Inch | 11 in | 279.40 mm
Specifications Length
11 Inch | 11 in | 0.2794 m | 279.40 mm
Specifications Max Flow Rate
45 gpm | 170.34 lpm
Specifications Moc
Stainless Steel
Specifications Model
NPF25/SPPP/SNF/SN/SSN/N/B
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
25-18663
Specifications Solids Handling
0.125 in | 3 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
8 Inch | 8 in | 0.2007 m | 200.66 mm
