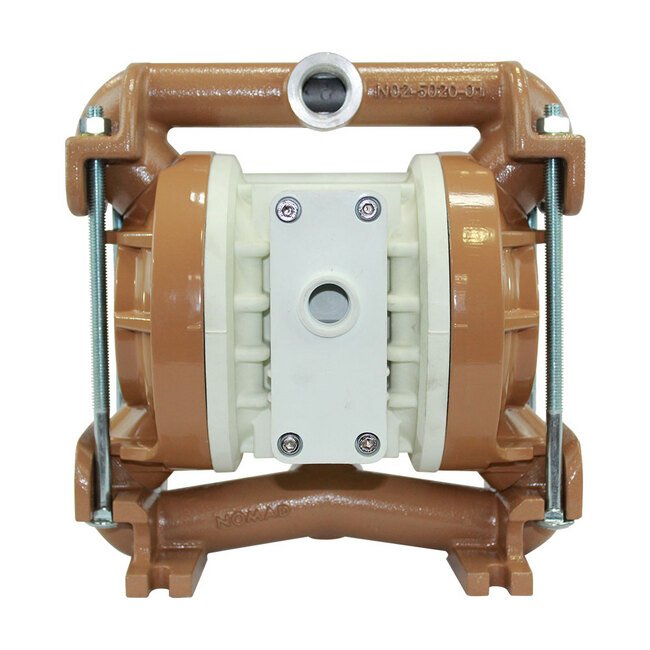

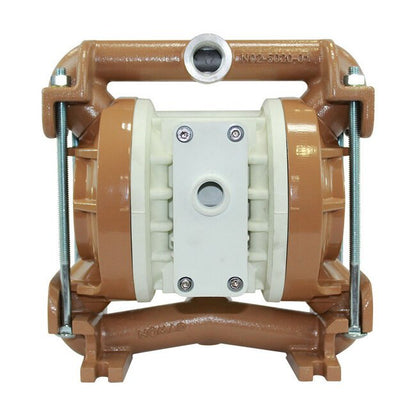

• 1" Stainless Steel Pwr-Flo™ AODD Pump with Viton® Diaphragm - Image 1
  • 1" Stainless Steel Pwr-Flo™ AODD Pump with Viton® Diaphragm - Image 2

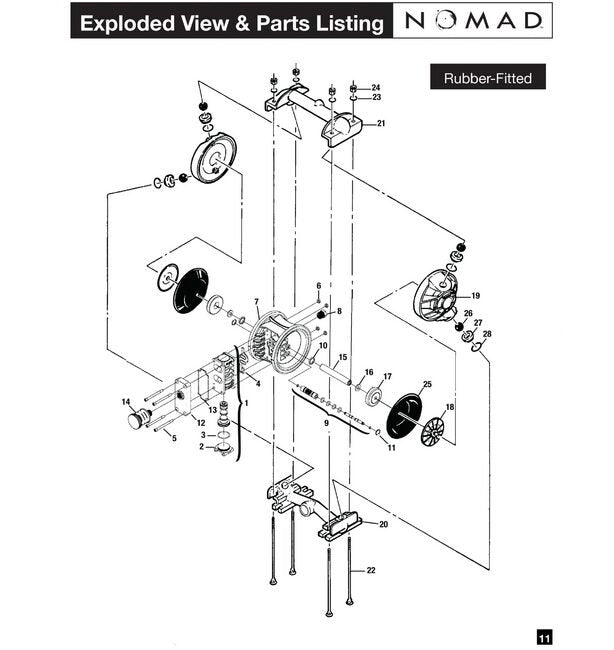

  • 1" Stainless Steel Pwr-Flo™ AODD Pump with Viton® Diaphragm - Image 3
1 3
Springer Pumps, LLC →

1" Stainless Steel Pwr-Flo™ AODD Pump with Viton® Diaphragm

1" Stainless Steel Pwr-Flo™ AODD Pump with Viton® Diaphragm

MAN-03cf86

Reliable 1" Stainless Steel AODD Pump with Viton® Diaphragm for efficient and durable liquid handling.

$799.99
$799.99
Sale

Initiate Order

1" Stainless Steel Pwr-Flo™ AODD Pump with Viton® Diaphragm

1" Stainless Steel Pwr-Flo™ AODD Pump with Viton® Diaphragm

$799.99

Quantity: 1

Claim Your Seller Account

1" Stainless Steel Pwr-Flo™ AODD Pump with Viton® Diaphragm

1" Stainless Steel Pwr-Flo™ AODD Pump with Viton® Diaphragm

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 1" Stainless Steel Pwr-Flo™ AODD Pump with Viton® Diaphragm from the NOMAD® PWR-FLO™ Pumps line is a reliable choice for handling large solids and slurries. Featuring an asymmetrical spool design for efficient air system operation, this drop-in replacement for Wilden AODD pumps offers excellent reliability in various liquid transfer applications. With a durable stainless steel construction, Viton® diaphragm, and chemically resistant polypropylene components, this pump ensures long-term performance and easy maintenance. The pump's compatibility with filling, batching, and other industrial applications makes it a versatile solution built for durability and efficiency.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Curves 0

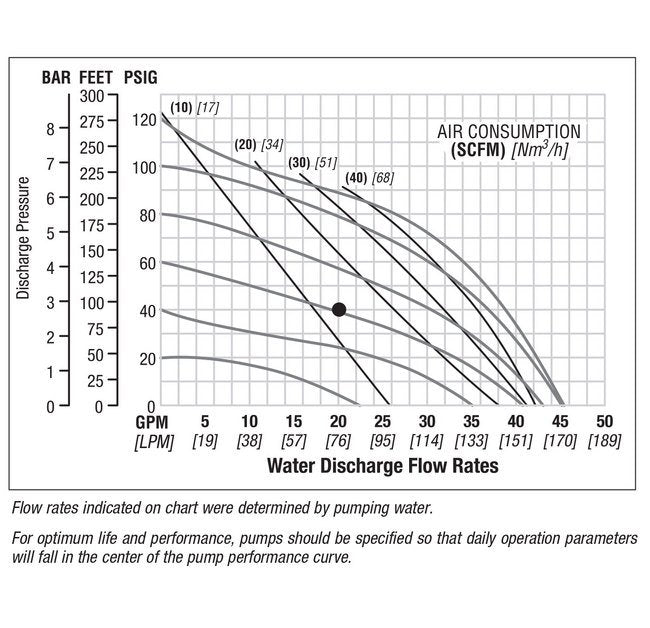

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO™ asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Viton®/FKM
Specifications Displacement Per Cycle
0.091 gal | 0.34 lit
Specifications Elastomers
Viton®, Viton®
Specifications Fluid Inlet Size
1 in | 25 mm
Specifications Fluid Outlet Size
0.75 Tri-Clamp in | 19 Tri-Clamp mm
Specifications Height
11 Inch | 11 in | 279.40 mm
Specifications Length
11 Inch | 11 in | 0.2794 m | 279.40 mm
Specifications Max Flow Rate
45 gpm | 170.34 lpm
Specifications Model
NPF25/SPPP/VT/VT/SVT/TC/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
25-1968
Specifications Solids Handling
0.125 in | 3 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
8 Inch | 8 in | 0.2007 m | 200.66 mm
