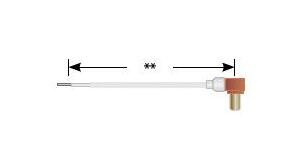

12 kVDC Right Angle Single Pin Plug Cable Assembly with NOMEX®
12 kVDC Right Angle Single Pin Plug Cable Assembly with NOMEX®
SKU:HIG-e06d51
High-performance 12 kVDC Right Angle Single Pin Plug Cable Assembly with NOMEX® for secure high-voltage connections in compact spaces.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
12 kVDC Right Angle Single Pin Plug Cable Assembly with NOMEX®
$89.99
Quantity: 1
Claim Your Seller Account
12 kVDC Right Angle Single Pin Plug Cable Assembly with NOMEX®
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

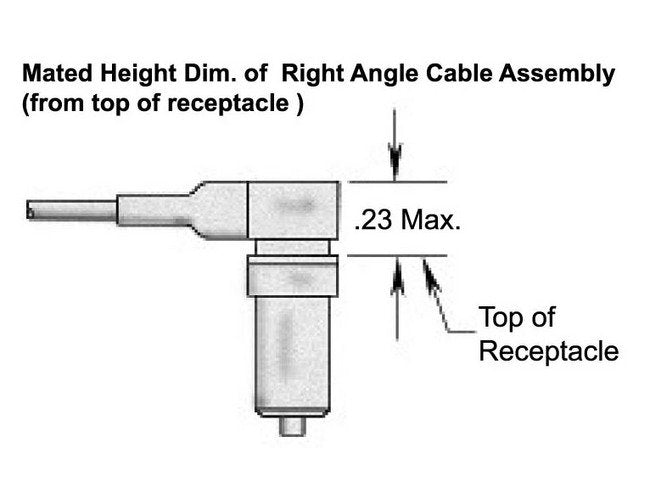

The 12 kVDC Right Angle Single Pin Plug Cable Assembly from the PeeWee Series is designed for high voltage applications requiring compact electronic components. Featuring Teledyne Reynold's Advanced Interface™ technology, this connector is rated for 12 kVDC at 70,000 feet with an operating temperature range of -55°C to 125°C. With a push-pull coupling style and sealed receptacle, it ensures secure high-voltage connections for lasers, photomultipliers, power supplies, and TWT devices. The assembly is RoHS compliant and encapsulated with silicone rubber for enhanced durability.
Product Specifications
Application 0
LasersPhotomultipliersPower SuppliesTWT
Body Properties Coupling Nut Material
Plastic
Cable Wire Properties Wire Diameter
0.060 in
Contact Properties Contact Design
Split Finger, Closed Entry, Molded in Place
Contact Properties Contact Diameter
0.030 in | 0.762 mm
Contact Properties Contact Material
BeCu, Gold Plate with CRES Hood
Contact Properties Contact Size
24 AWG
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Single-Ended W/ NOMEX® Right Angle Plug Cable Assembly
Specifications Coupling Style
Push-Pull
Specifications Current Rating
1.6 Amp
Specifications Encapsulation
Back end of connector is encapsulated with silicone rubber
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
Mates with all non-threaded PeeWee series plug assemblies.
Specifications Operating Temperature
-55 to 125 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
PeeWee
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12 kVDC
Specifications Wire Insulation
Silicone Coated FEP NOMEX®
Specifications Wire Pn
178-5789
