136-0 Series 10" Municipal Style Kevlar® Plug
136-0 Series 10" Municipal Style Kevlar® Plug
SKU:STE-eecb11
Durable 10" Municipal Kevlar® Plug for reliable pipe sealing in municipal applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
136-0 Series 10" Municipal Style Kevlar® Plug
$149.99
Quantity: 1
Claim Your Seller Account
136-0 Series 10" Municipal Style Kevlar® Plug
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 136-0 Series Municipal Style Kevlar® Reinforced Rubber Plug is designed for reliable pipe sealing in municipal applications. With a maximum pipe diameter of 10 inches and a reinforced Kevlar® construction, this plug offers durability and flexibility. The 2-inch bypass size and threaded top ensure efficient deployment. Petersen® brand ensures quality, and the plug is compliant with industry standards for municipal infrastructure projects, providing a secure and leak-proof solution for pipe maintenance.
Product Specifications

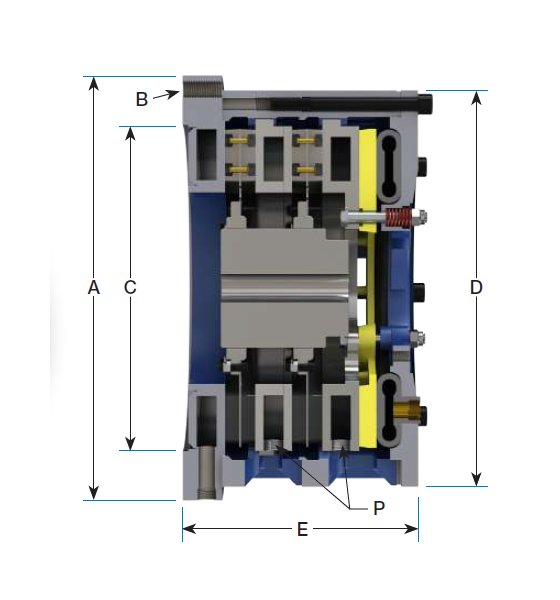

Dimensions Diameter B
21/32 in
Dimensions Diameter B Metric Mounting
18.0 mm
Dimensions Dimension A
30.000 in | 762.00 mm
Dimensions Dimension A Metric Mounting
760.00 mm
Dimensions Dimension A Tolerance
+0.000 in | -0.003 in | +0.00 mm | -0.08 mm
Dimensions Dimension A Tolerance Metric Mounting
+0.08 mm | -0.000 mm
Dimensions Dimension C
24.375 in | 619.13 mm
Dimensions Dimension C Metric Mounting H7
620.00 mm
Dimensions Dimension C Tolerance
+0.003 in | -0.000 in | +0.08 mm | -0.000 mm
Dimensions Dimension D
29 in | 736.6 mm
Dimensions Dimension E
12-1/4 in | 311.2 mm
Dimensions Hole Circle B
28.75 in | 730.3 mm
Dimensions Hole Circle B Metric Mounting
730.0 mm
Dimensions Imperial Mounting Coolant Ports P
1/2
Dimensions Imperial Mounting Thread Type
National Pipe Thread (NPT)
Dimensions Metric Mounting Coolant Ports P
1/2
Dimensions Quantity
10
Dimensions Quantity Metric Mounting
10
Dimensions Thread Type
British Standard Pipe Taper Thread (BSPT)
Features Features
High cycle lifePredictable preventative maintenanceLow-inertia drive plate configurationDurable steel water jacket designStandardized mounting for OEM applications, rebuilds, or retrofitsMaximum heat transferLow-inertia drive plate design
Note Note
Consult WPT® Application Engineering for application assistance, service factors, specifications, and detailed drawings/3D models.
Specifications Heat Dissipation Capacity
190 hp | 143.2 kW
Specifications Lining Area
510 in² | 3300 cm²
Specifications Maximum Bore Range
5.50 in | 139.7 mm
Specifications Maximum Speed Hub And Drive Plate
1430 rpm
Specifications Maximum Speed Slip
955 rpm
Specifications Minimum Bore Range
2.75 in | 69.9 mm
Specifications Minimum Water Flow
29 gal/min | 108 L/min
Specifications Static Torque At 100 Pounds Per Square Inch Psi 7
159000 lbf·in | 18000 N·m
Weight And Inertia Hub And Drive Plate Dp Inertia
76 lb·ft² | 3.2 kg·m²
Weight And Inertia Hub And Drive Plate Dp Weight
260 lb | 120 kg
Weight And Inertia Total Weight
1200 lb | 520 kg
