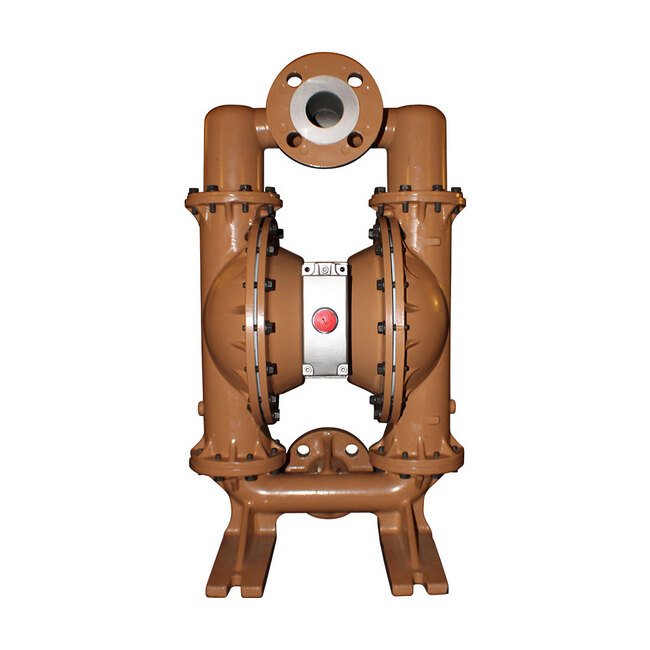

2" Aluminum Pwr-Flo™ AODD Pump with Santoprene Diaphragm
2" Aluminum Pwr-Flo™ AODD Pump with Santoprene Diaphragm
SKU:MAN-12c14b
Efficiently transfer liquids with the 2" Aluminum Pwr-Flo™ AODD Pump. Ideal for handling solids and slurries, with maximum reliability and chemical resistance.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
2" Aluminum Pwr-Flo™ AODD Pump with Santoprene Diaphragm
$2,499.99
Quantity: 1
Claim Your Seller Account
2" Aluminum Pwr-Flo™ AODD Pump with Santoprene Diaphragm
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 2" Aluminum Pwr-Flo™ AODD Pump with a Santoprene Diaphragm is a reliable and robust solution for handling large solids and slurries. Featuring an efficient air system with PWR-FLO™ asymmetrical spool design, this pump offers excellent reliability for on/off liquid transfer applications in filling and batching. The chemically resistant polypropylene air valve and center section ensure durability and longevity. With a maximum flow rate of 158 gpm and the ability to handle solids up to 0.25 inches, this pump is a drop-in replacement for Wilden® AODD pumps, meeting the highest standards of performance and quality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

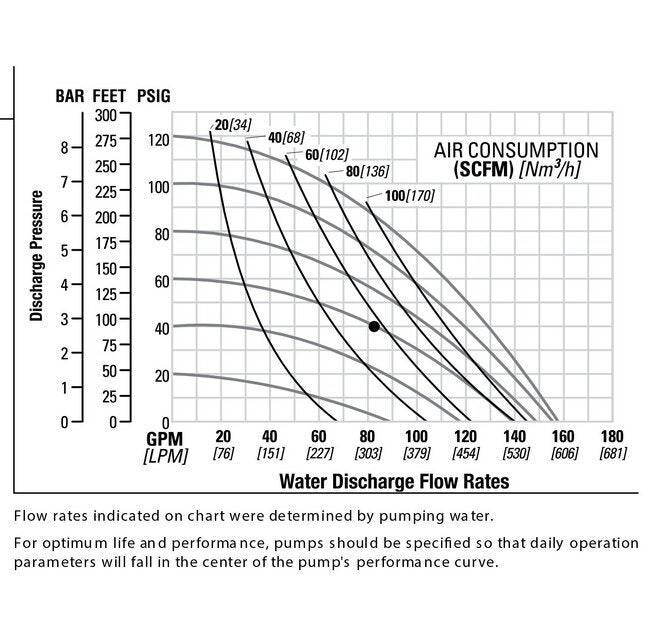

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Buna
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Santoprene®
Specifications Displacement Per Cycle
0.73 gal | 2.76 lit
Specifications Elastomers
Buna, Buna
Specifications Fluid Inlet Size
2 in | 51 mm
Specifications Fluid Outlet Size
2 Flange in | 51 Flange mm
Specifications Height
30 Inch | 30 in | 759.46 mm
Specifications Length
17 Inch | 17 in | 0.4394 m | 439.42 mm
Specifications Max Flow Rate
158 gpm | 598.10 lpm
Specifications Model
NPF50/AAAA/SN/BN/BN/FL/B/X
Specifications Non Wetted Material
Aluminum
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-16496-1
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Aluminum
Specifications Width
13 Inch | 13 in | 0.3404 m | 340.36 mm
