2" BSP PWR-FLO™ AODD Pump, Ductile Iron w/ PTFE Diaphragm
2" BSP PWR-FLO™ AODD Pump, Ductile Iron w/ PTFE Diaphragm
SKU:MAN-a6cfeb
Reliable 2" BSP PWR-FLO™ AODD Pump for industrial fluid transfer with Ductile Iron construction and efficient PTFE diaphragm.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
2" BSP PWR-FLO™ AODD Pump, Ductile Iron w/ PTFE Diaphragm
$799.99
Quantity: 1
Claim Your Seller Account
2" BSP PWR-FLO™ AODD Pump, Ductile Iron w/ PTFE Diaphragm
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

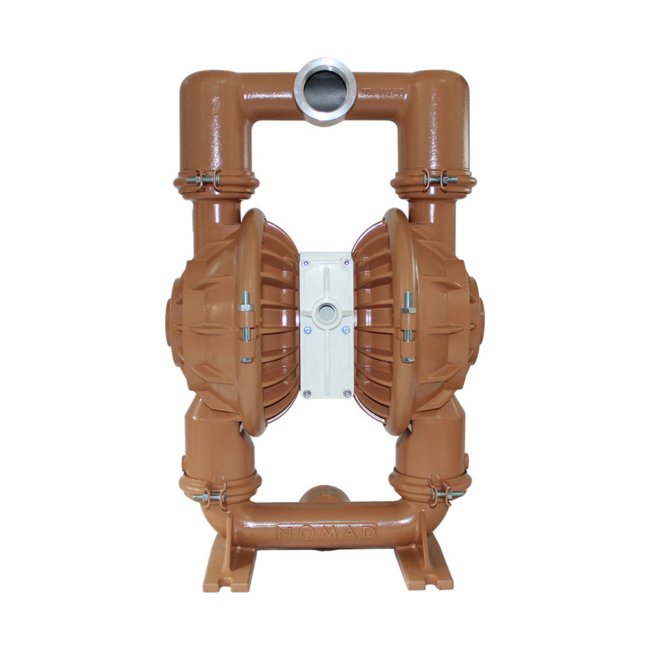

The 2" BSP PWR-FLO™ AODD Pump is a robust solution for industrial fluid transfer needs. Crafted from Ductile Iron with a PTFE diaphragm featuring Neoprene back-up, this pump excels in handling large solids and slurries. With a unique asymmetrical spool design for efficient air system operation, it ensures reliable on/off liquid transfer. Equipped with chemically resistant components, including a polypropylene air valve and center section, this pump offers durability and performance, making it a drop-in replacement for Wilden® AODD pumps.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

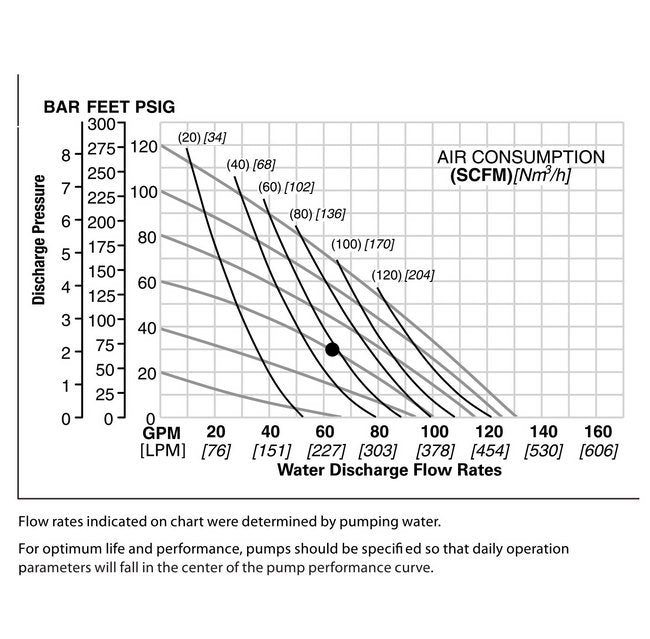

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
PTFE (with Neoprene back-up)
Specifications Check Valve Seat
Mild Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
PTFE (with Neoprene back-up)
Specifications Displacement Per Cycle
0.44 gal | 1.67 lit
Specifications Elastomers
PTFE, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
2 BSP in | 51 BSP mm
Specifications Fluid Outlet Size
2 BSP in | 51 BSP mm
Specifications Height
26 Inch | 26 in | 668.02 mm
Specifications Length
26 Inch | 26 in | 0.6680 m | 668.02 mm
Specifications Max Flow Rate
131 gpm | 495.89 lpm
Specifications Moc
Ductile Iron
Specifications Model
NPF50/WAPP/TF/TF/MTF/B/C
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-21161
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Ductile Iron
Specifications Width
14 Inch | 14 in | 0.3429 m | 342.90 mm
